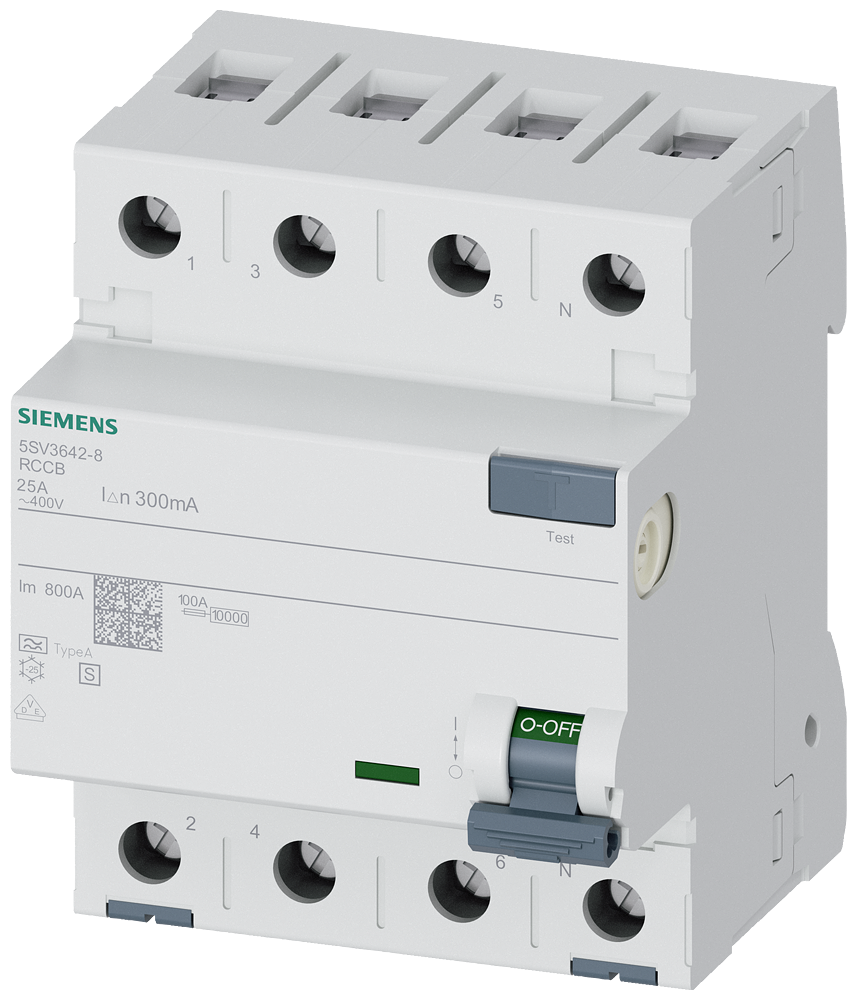

Siemens Residual current circuit breaker A 25/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, selective
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV36428 Residual current circuit breaker A 25/4, tightening torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2, selective.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV36428
- EAN / GTIN
- 4001869430744
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 25 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 5 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 0.8 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430744
- SAP 1000710976
- Code 8226018
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD5030-0RE20-0, 1000 A, 3-Pole, Front Operated Centre, without Rotary Handle
Siemens

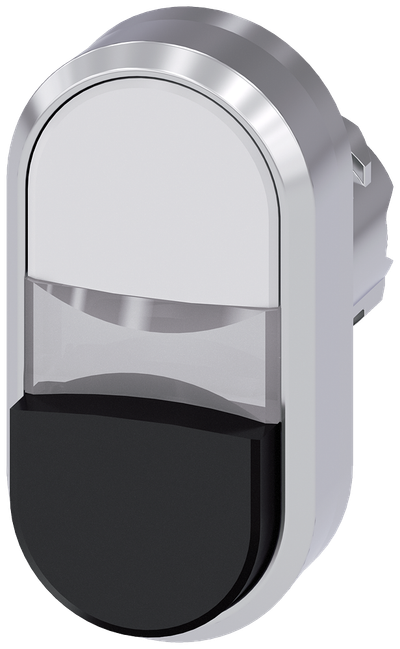

Siemens SIRIUS Illuminated twin pushbutton, 22 mm, round, metal, shiny, white, black, pushbuttons, flat and raised
3SU1051-3BB61-0AA0
Siemens

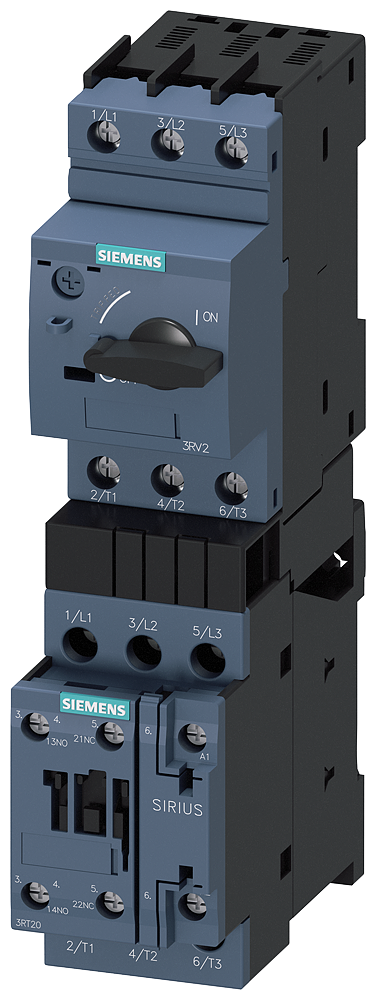

Siemens SIRIUS Load feeder fuseless, Direct-on-line starting 400 V AC, Size S0 27.0...32.0 A 230 V AC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO+1 NC (contactor)
