Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2017-2JB41
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2017-2JB41 — SIRIUS 3RT20 contactor, frame size S00. AC-3 rated up to 12 A at 400 V, 3-pole, screw or spring-cage terminals depending on -1A / -1B suffix. Relay 5.5KW 1NO 24V DC with diode S00 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2017-2JB41
- EAN / GTIN
- 4011209846142
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 70 mm
- Depth
- 73 mm
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 12 A
- Rated operation current Ie at AC-1, 400 V
- 22 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-4, 400 V
- 8.5 A
- Rated operation power at AC-4, 400 V
- 4 kW
- Rated operation power NEMA
- 8 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209846142
- SAP 1000270643
- Code 81172541
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 17 A, 7.5 kW / 400 V, 3-Pole, 230 V AC, 50/60 Hz, spring-loaded terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1
3RA2325-8XB30-2AL2
Siemens
Siemens SENTRON 5SY8420-8 Miniature Circuit Breaker 4-Pole D20A 25KA
Siemens
Siemens LZX:PT570524
Siemens
Siemens Prismeklemme
3NP1963-1BB10
Siemens
Siemens SIRIUS Kommunikasjons protection plug
3UF7950-0AA00-0
Siemens

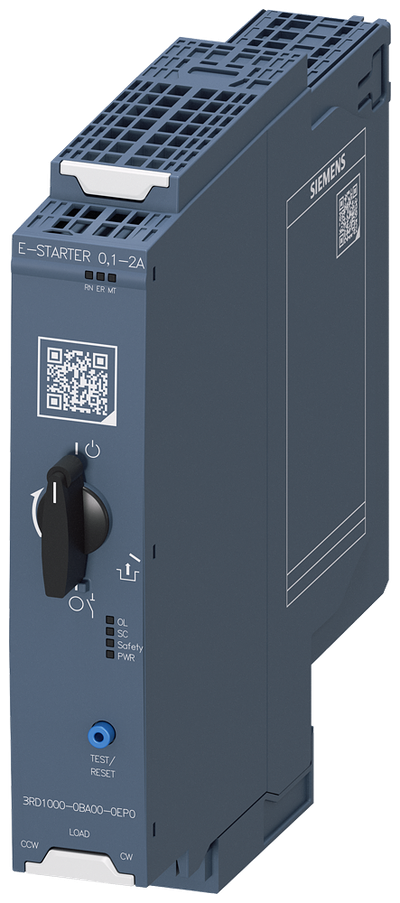

Siemens SIMATIC ET 200SP e-Starter basic, 0 3RD1000-0BA00-0EP0
Siemens

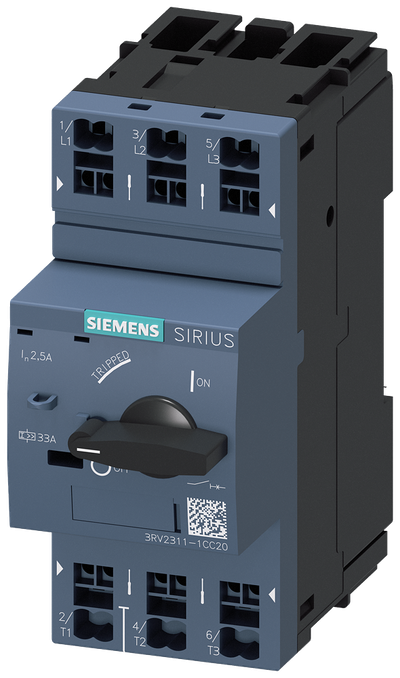

Siemens Circuit breaker 2
3RV2311-1CC20
Siemens

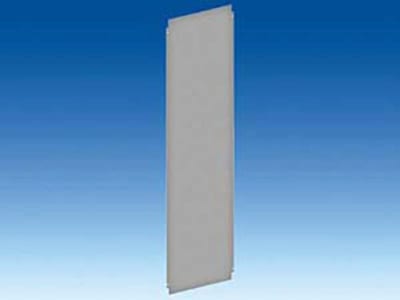

Siemens Alpha 400/630 Din, mounting plate Steel for mounting on Vertical montasjerailr(Traverser) 8GK9531-6KK10
