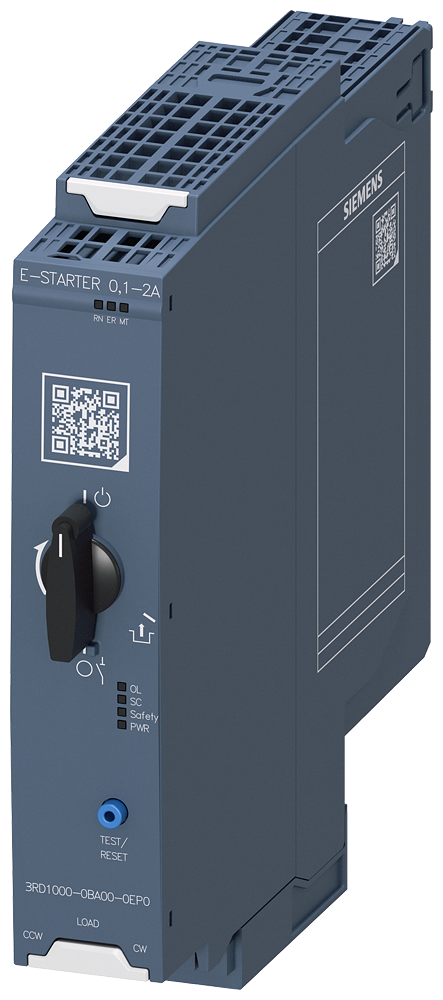

Siemens SIMATIC ET 200SP e-Starter basic, 0 3RD1000-0BA00-0EP0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RD1000-0BA00-0EP0 SIMATIC ET 200SP e-Starter basic, 0.1 - 2.0 A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RD1000-0BA00-0EP0
- EAN / GTIN
- 4047621120010
- Sales unit
- pcs
- Width
- 30 mm
- Height
- 151 mm
- Depth
- 167 mm
- With transformer
- No
- Rated operation power at AC-3, 400 V
- 0.75 kW
- Suitable for emergency stop
- No
- Rated operation current Ie
- 2 A
- Overload release current setting
- 0.1–2 A
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Rated control supply voltage DC
- 20.4–28.8 V
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10 A
- With short-circuit release
- Yes
- With fuse
- No
- Type of electrical connection of main circuit
- Plug-in connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- DC
- Type of motor starter
- Reversing starter
- Rated operation power at AC-3, 230 V, 3-phase
- 0.46 kW
- Rated operation current at AC-3, 400 V
- 2 A
- Ambient temperature, upper operating limit
- 40 °C
- Temperature compensated overload protection
- Yes
- Rated conditional short-circuit current, type 2, 400 V
- 100000 A
- Rated conditional short-circuit current, type 2, 230 V
- 100000 A
- Rated conditional short-circuit current, type 1, 480 Y/277 V
- 100000 A
- Country of origin
- Germany
