Siemens Sinamics G120 Control Unit CU250S-2 DP Integrated ProfiBus DP
Pricing
Request a quote
We reply within 24 hours
Product Description

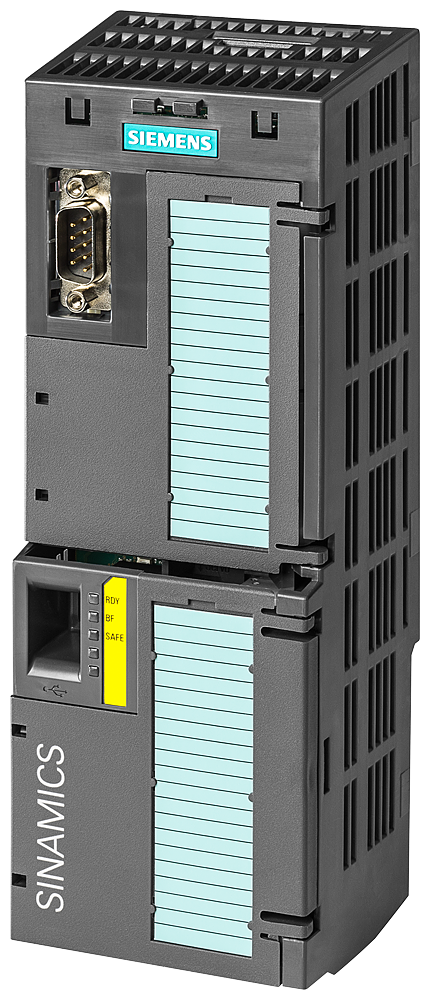

Siemens 6SL3246-0BA22-1PA0 Sinamics G120 Control Unit CU250S-2 DP Integrated ProfiBus DP.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3246-0BA22-1PA0
- EAN / GTIN
- 4042948664124
- Sales unit
- pcs
- Width
- 0.073 mm
- Height
- 0.199 mm
- Depth
- 0.067 mm
- With control element
- No
- Number of digital inputs
- 15
- Number of digital outputs
- 3
- Number of analogue inputs
- 2
- Number of analogue outputs
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces serial TTY
- 4
- Number of HW-interfaces USB
- 1
- Degree of protection (IP)
- IP20
- 4-quadrant operation possible
- No
- Integrated breaking resistance
- No
- Application in industrial area permitted
- No
- Application in domestic- and commercial area permitted
- No
- Supporting protocol for BACnet
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.90
Cross References
- EAN 4042948664124
- SAP 1000653757
- Code 8464405
Product Documentation
