Siemens Residual current circuit breaker with overcurrent+afd, TN, 6KA, 18mm, C6
Pricing
Request a quote
We reply within 24 hours
Product Description

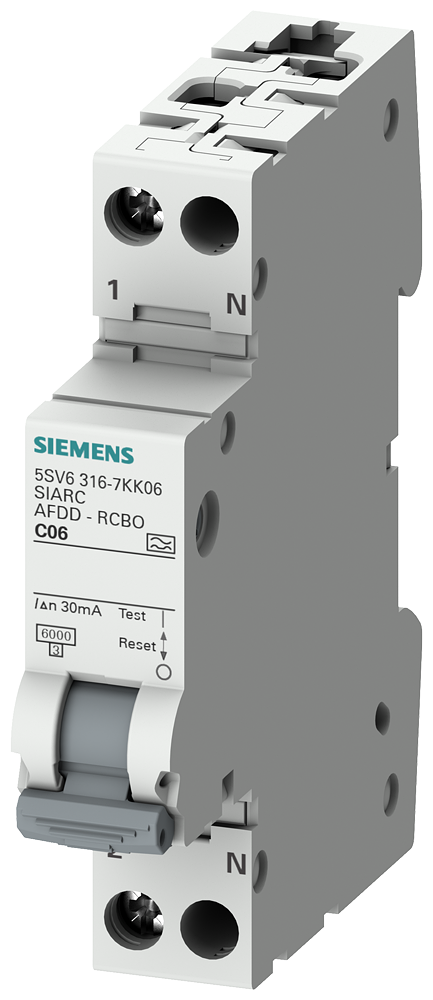

Siemens 5SV6316-7KK06 Residual current circuit breaker with overcurrent+afd, TN, 6kA, 18mm, C6.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV6316-7KK06
- EAN / GTIN
- 4001869565125
- HS code
- 8536.90
- Sales unit
- pcs
- Breaking capacity
- 6 kA
- Release characteristic
- C
- Number of poles
- 2
- Rated current
- 6 A
- Rated voltage
- 230 V
- Rated short-circuit breaking capacity according to EN 60898
- 6000 kA
- Voltage type
- AC
- Current limiting class
- 3
- Frequency
- 50 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 1
- Built-in depth
- 70 mm
- Additional equipment attached at delivery
- Fire protection switch
- Rated switch current auxiliary device
- 6000 A
- Rated voltage auxiliary device
- 195 V
- Control voltage type auxiliary equipment
- AC
- Degree of protection (IP)
- IP20
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869565125
- SAP 1200416108
- Code 82450211
