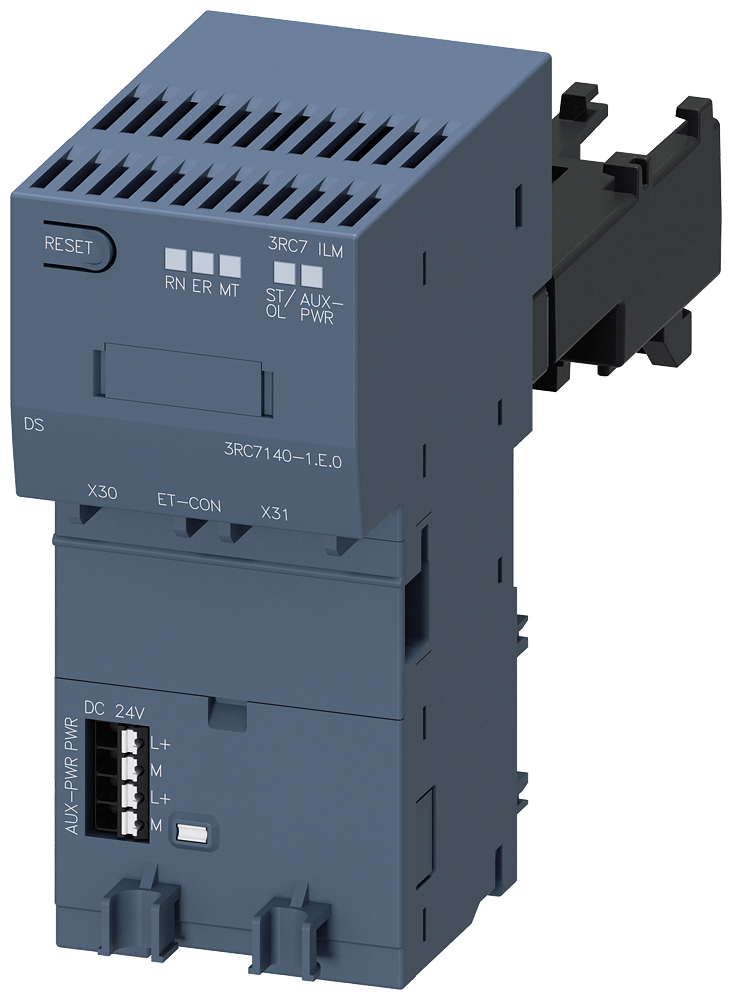

Siemens Inteligent Linkmodul(ILM)for direct-on-line start, 1,2-12AMP
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RC71401KE10 Inteligent Linkmodul(ILM)for direct-on-line start, 1,2-12Amp. For sammenstilling with 3RV+3RT.
Technical Specifications
- Manufacturer part number (MPN)
- 3RC71401KE10
- EAN / GTIN
- 4047621103341
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 103 mm
- Depth
- 130 mm
- With transformer
- No
- Power consumption
- 0.9 W
- Suitable for emergency stop
- No
- Rated operation current Ie
- 12 A
- Overload release current setting
- 1.2–12 A
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- External reset possible
- No
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 230–690 V
- Rated control supply voltage AC 60 Hz
- 230–690 V
- Rated control supply voltage DC
- 690 V
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- Adjustable
- With short-circuit release
- No
- With fuse
- No
- Type of electrical connection of main circuit
- Spring clamp connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- DC
- Type of motor starter
- Direct online starter (DOL)
- Rated operation current at AC-3, 400 V
- 12 A
- Ambient temperature, upper operating limit
- 60 °C
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4047621103341
- SAP 1200841034
- Code 84032558
Product Documentation
More from Siemens
Siemens
Siemens IRC Antenna ANT 896-4MA for GSM (2G), UMTS (3G) and LTE (4G) network
6GK5896-4MA00-0AA3
Siemens

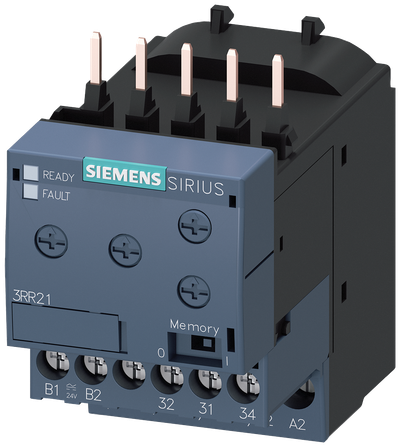

Siemens Current-monitoring relay 1.6-16A 2-Phase
3RR2141-1AA30
Siemens

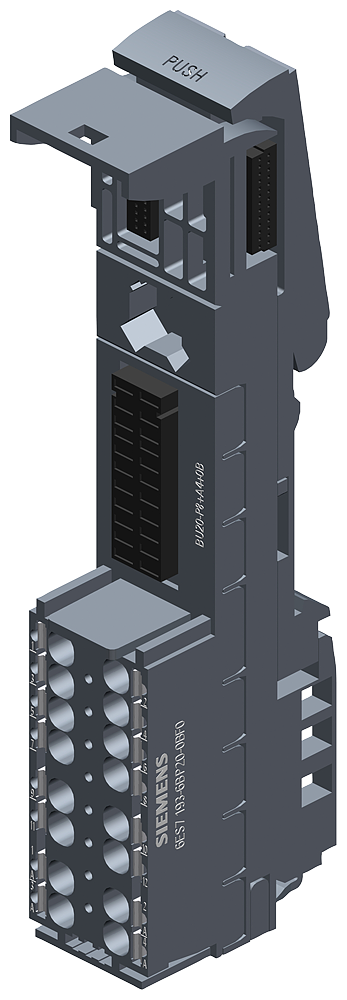

Siemens SIMATIC S7 automation module 6ES7193-6BP20-0BF0
Siemens

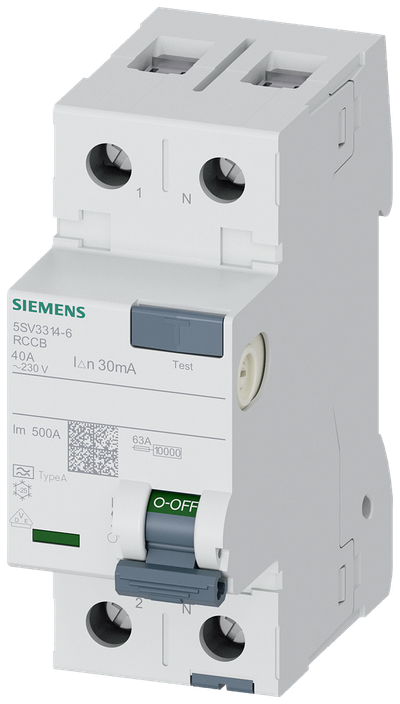

Siemens Residual current circuit breaker, 2-Pole, type A, In: 40 A, 30 mA, Un AC: 230 V
5SV3314-6
Siemens

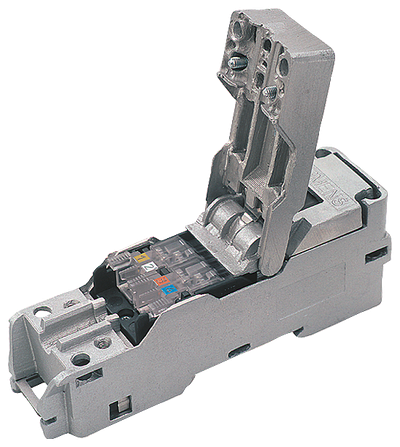

Siemens 6GK1901-1FC00-0AA0
Siemens

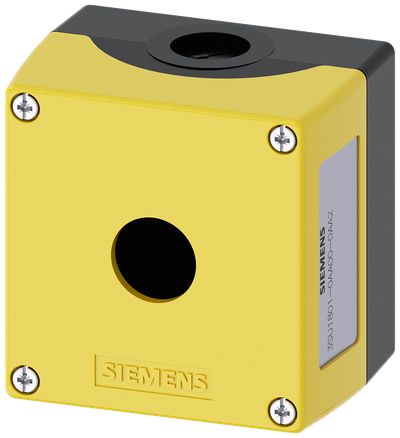

Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Control point in center, without equipment
3SU1801-0AA00-0AA2
Siemens

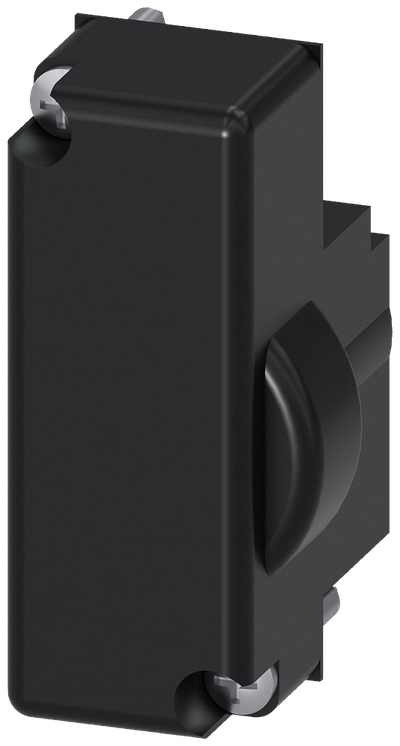

Siemens ALPHA 630 DIN Lock Insert Adapter for Profile Half-Cylinder
8GK9561-0KK02
Siemens

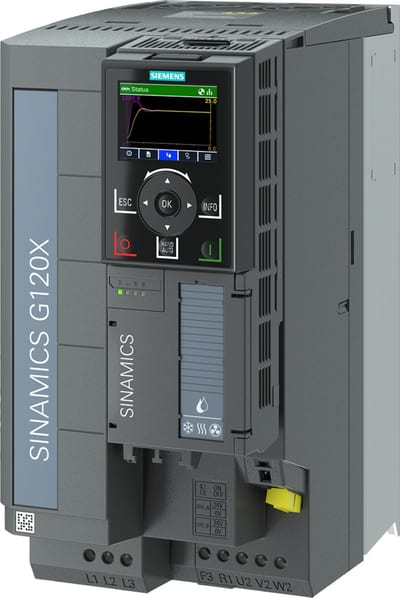

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC22-0UF0
