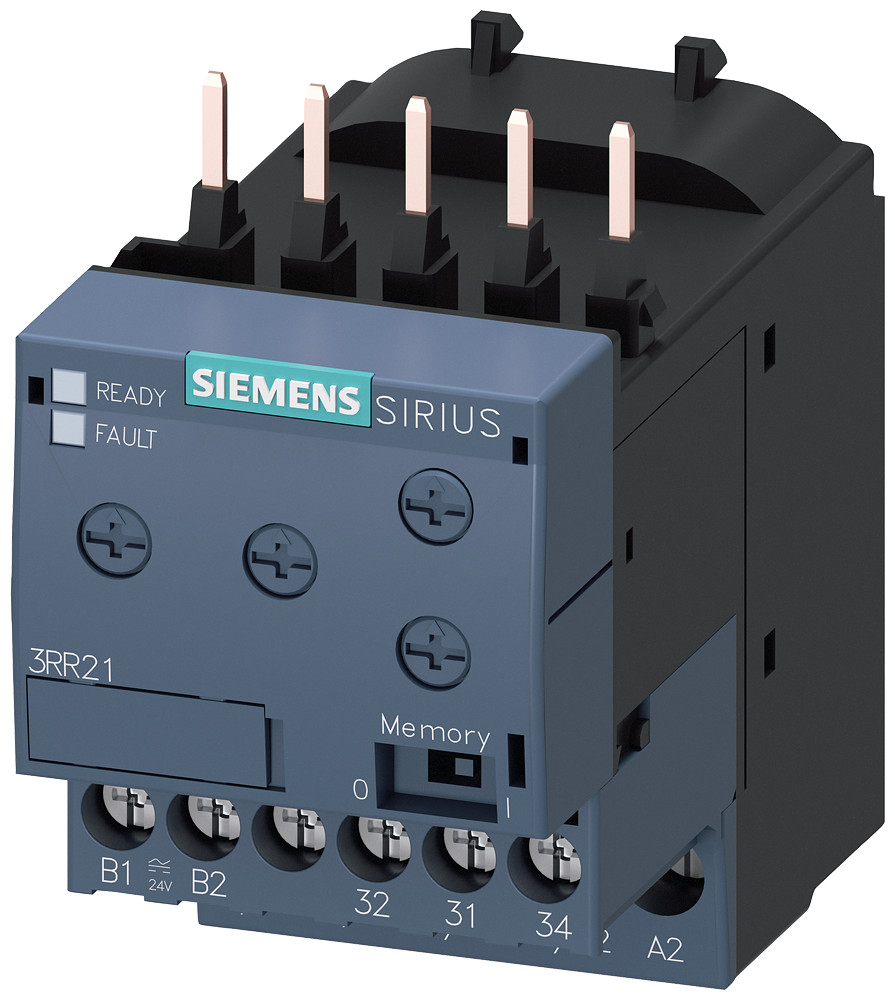

Siemens Current-monitoring relay 1.6-16A 2-Phase
Pricing
Request a quote
We reply within 24 hours
Product Description
Current-monitoring relay 1.6-16A 2-Phase.
Technical Specifications
- Manufacturer part number (MPN)
- 3RR2141-1AA30
- EAN / GTIN
- 4011209787230
- Sales unit
- pcs
- Setting range
- 1.6-16 A
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
- Response value amperage 1
- 1.6–16 A
- Response value amperage 2
- 1.6–16 A
- Type of current
- AC
- Voltage type (supply voltage)
- AC/DC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 60 s
- Min. adjustable off-delay time
- 0 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 1
- External current transformer
- No
- Width
- 45 mm
- Height
- 79 mm
- Depth
- 80 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209787230
- SAP 1000097846
- Code 8895564
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC S7 automation module 6ES7193-6BP20-0BF0
Siemens
Siemens Residual current circuit breaker, 2-Pole, type A, In: 40 A, 30 mA, Un AC: 230 V
5SV3314-6
Siemens
Siemens 6GK1901-1FC00-0AA0
Siemens
Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Control point in center, without equipment
3SU1801-0AA00-0AA2
Siemens
Siemens ALPHA 630 DIN Lock Insert Adapter for Profile Half-Cylinder
8GK9561-0KK02
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC22-0UF0
Siemens

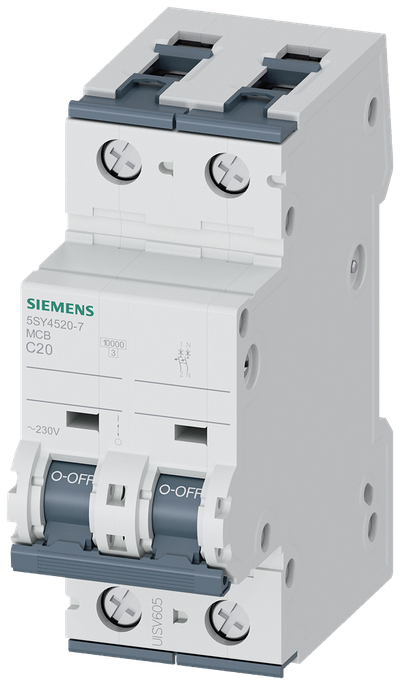

Siemens SENTRON 5SY4520-7 Miniature Circuit Breaker 1+N-Pole C20A 10KA
