Siemens Door IP40, W: 1000 mm lock: double-bit hinge: right
Pricing
Request a quote
We reply within 24 hours
Product Description

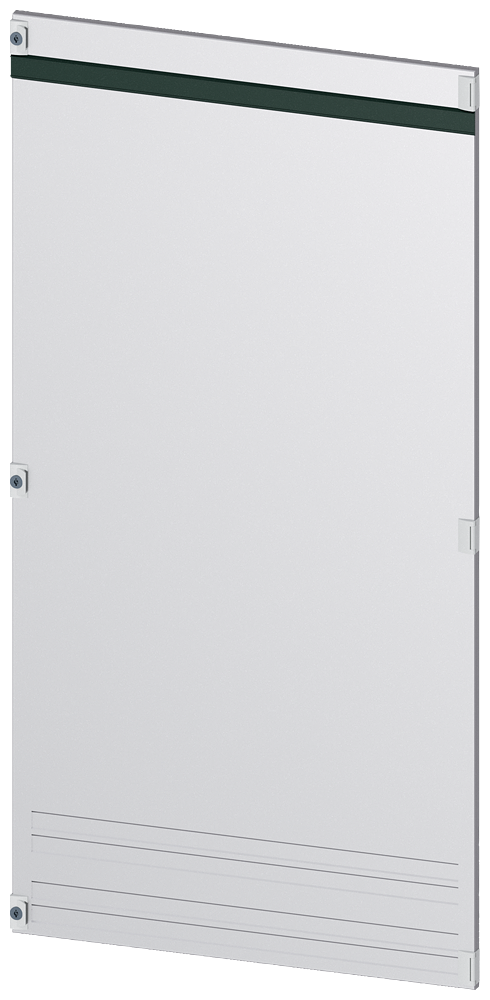

Siemens 8PQ2197-1BA18 Door whole IP4X h and v with standard lock h1975/b1000.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ2197-1BA18
- EAN / GTIN
- 4042948171363
- Sales unit
- pcs
- IP rating
- IP4X
- Product brand name
- SIVACON S4
- Product designation
- Door
- Design of the product
- IP40
- Design of the surface
- Powder-coated
- Design of the product EMC version
- No
- Protection class IP
- IP40
- Operating resource protection class
- 1
- Color
- light grey
- Product component — ventilation
- Yes
- Product component — viewing door
- No
- Product component — door for disconnector lock
- No
- Accessories included
- no
- Mechanical Design — height
- 2 000 mm
- Mechanical Design — width
- 1 000 mm
- Mechanical Design — depth
- 25 mm
- Opening direction of the door
- right
- Ventilation cross section inlet can be used
- 468 cm²
- Ventilation cross section outlet can be used
- 0 cm²
- Mechanical Design — Net Weight
- 29 kg
- Material
- sheet-steel
- Width
- 1000 mm
- Height
- 1975 mm
- Depth
- 25 mm
- EMC-version
- No
- Degree of protection (IP)
- IP40
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4042948171363
- SAP 1000070850
- Code 8729078
Product Documentation
