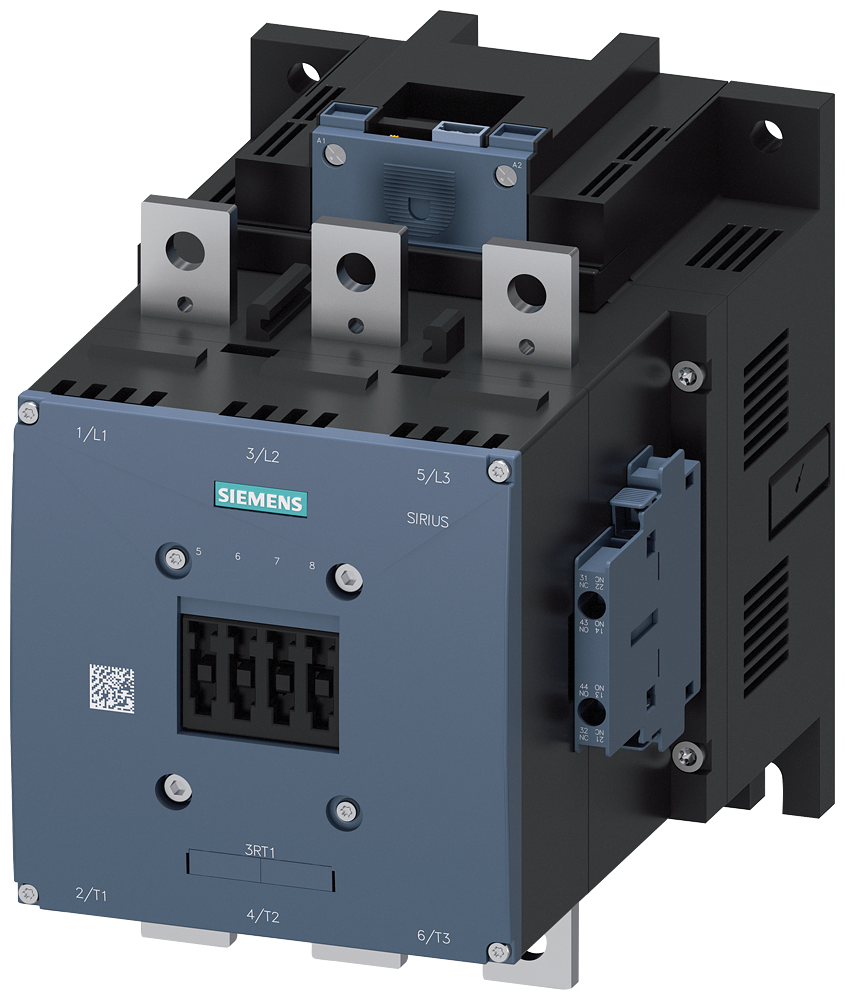

Siemens S12 contactor, 250KW/400V/AC-3 3RT1076-6NF36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1076-6NF36 S12 contactor, 250KW/400V/AC-3.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1076-6NF36
- EAN / GTIN
- 4011209508613
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 250 kW
- Utilization category
- AC-3
- Width
- 160 mm
- Height
- 214 mm
- Depth
- 225 mm
- Rated operation power at AC-3, 400 V
- 250 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 500 A
- Rated operation current Ie at AC-1, 400 V
- 610 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 430 A
- Rated operation power at AC-4, 400 V
- 250 kW
- Rated operation power NEMA
- 400 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209508613
- SAP 1200326506
- Code 82308547
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 38 A, 18.5 kW / 400 V, 3-Pole, 24 V DC, spring-loaded terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1 NO, with voltage tap for 3RA27
3RA2328-8XE30-2BB4
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD3040-2NE10-0, 100 A, 4-Pole, Front Operated Left, with Rotary Handle
Siemens
Siemens Separation main busbar, mounting position: top, W: 600 mm D: 400 mm
8PQ3000-0BA68
Siemens
Siemens Alpha door hinges (2 pcs), spare for wall/floor cabinet
8GK9920-0KK24
Siemens
Siemens RC Elem LZS:PTMU0730
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2017-2AP02
Siemens
Siemens MCCB_3VA25_4P_85KA_ETU860,LSIG PROTECTION, IN=1000A, IR=400A-1000A, ISD=0,6-10XIN,II=1,5-10XIN,IG=0,2-1XIN
3VA2510-6KQ42-0AA0
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 1, H: 1250 mm, W: 1050 mm, D: 210 mm, RAL 9016
8GK1123-6KA42
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT1076-6NF36?
- 3RT1076-6NF36 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT1076-6NF36.
- What is the HS code for 3RT1076-6NF36?
- The customs tariff (HS) code for 3RT1076-6NF36 is 8536.90.
- Who manufactures 3RT1076-6NF36?
- 3RT1076-6NF36 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT1076-6NF36?
- Yes — the 3RT1076-6NF36 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT1076-6NF36?
- The minimum order quantity is 1.
- Is 3RT1076-6NF36 available?
- Yes — 3RT1076-6NF36 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
