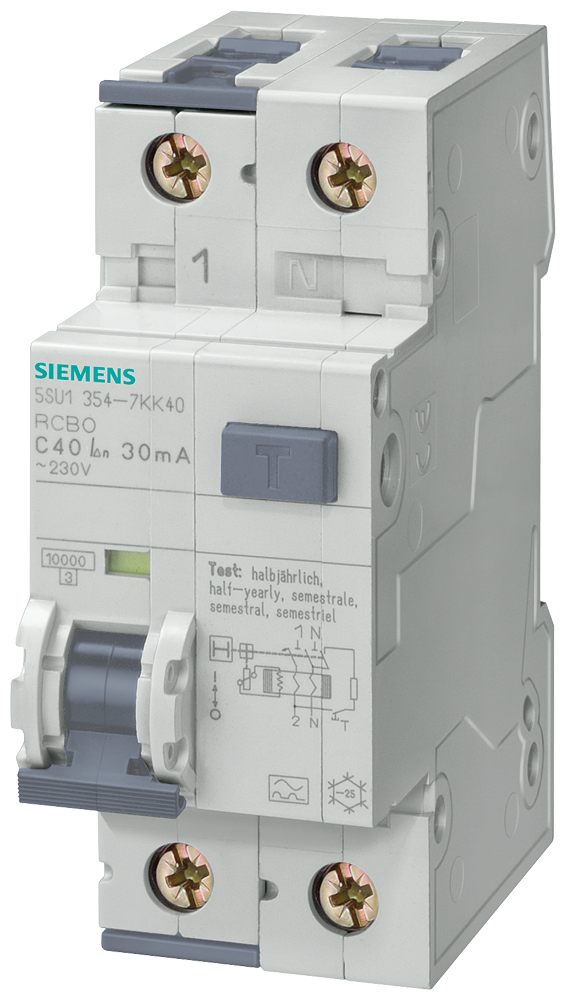

Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 300MA,10KA, 1+N-Pole B 40A
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SU16546KK40 Residual current circuit breaker with overcurrent For Tn, Type A, D=70 mm Ifn 300ma,10kA, 1+N-Pole B 40A.
Technical Specifications
- Manufacturer part number (MPN)
- 5SU16546KK40
- EAN / GTIN
- 4001869308203
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 40 A
- Breaking capacity
- 10 kA
- Power loss
- 7.8 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 264 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.3 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 10 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Flush-mounted installation
- Yes
- Mounting method
- DIN rail
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869308203
- SAP 1000065171
- Code 8905282
