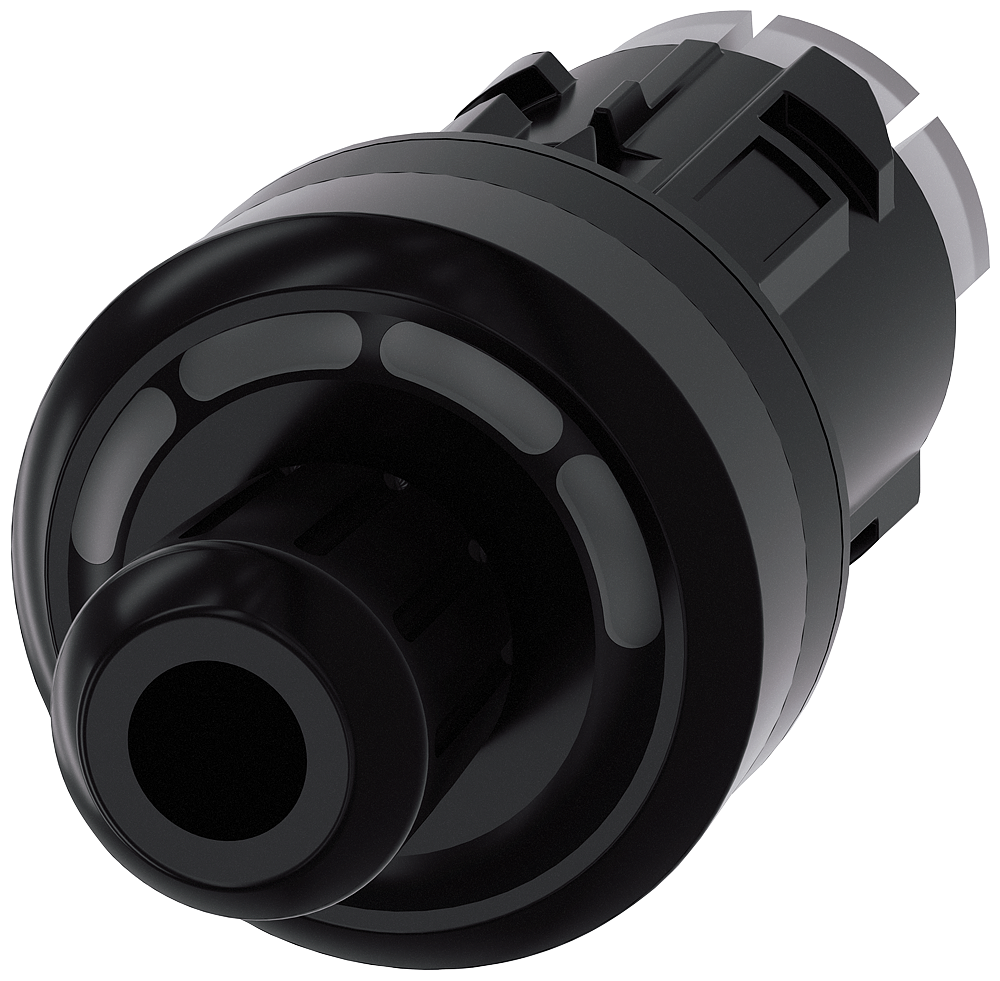

Siemens SIRIUS ACT ID key-operated switch, 22 mm, round, plastic, black, RFID, 4 switch positions O-I-II-III, operating angle 3X45°, without ID key, Key removal in O+I+II+III
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1000-4WS10-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT ID-key on IO-Link 22MM round black rigid plastic.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1000-4WS10-0AA0
- EAN / GTIN
- 4011209946644
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- ID key-operated switches
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Principle of operation of the actuating element
- latching
- Product extension optional — light source
- No
- Product extension optional — contact module
- No
- Color — of the actuating element
- black
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 29.5 mm
- Number of switching positions
- 4
- Switch position for key distraction
- Key removal possible in all 4 positions
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP65
- Mechanical service life (operating cycles) typical
- 100 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 22 g
- Tightening torque of the screws in the bracket
- 1 ... 1.2 N·m
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 29.5 mm
- Installation/ mounting/ dimensions — width
- 29.5 mm
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 29.6 mm
- Installation width
- 29.5 mm
- Installation depth
- 29.5 mm
- Hole diameter
- 22.3 mm
- Number of switch positions
- 4
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Width opening
- 29.5 mm
- Height opening
- 29.6 mm
- Material front ring
- Plastic
- Construction type lens
- Round
- Type of control element
- Key
- Colour control element
- Black
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8523.59
Cross References
- EAN 4011209946644
- SAP 1000697267
- Code 8632936
Product Documentation
More from Siemens
Siemens
Siemens 7KT5602
Siemens

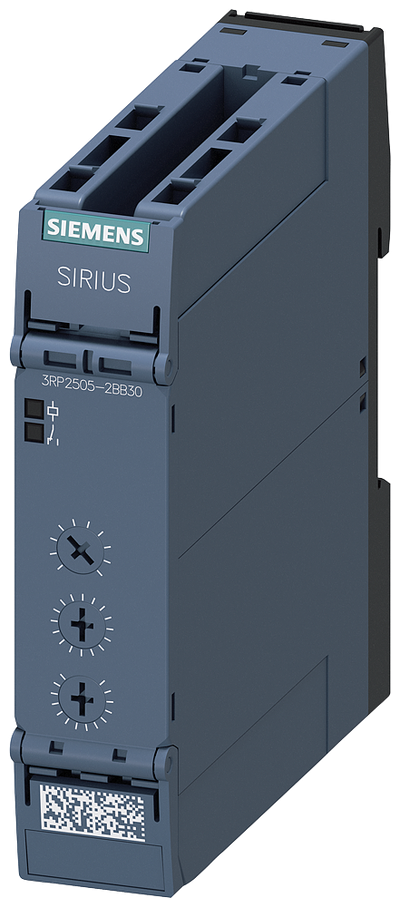

Siemens SIRIUS 3RP25 Time relay -Multi-function 3RP2505-2BB30
Siemens

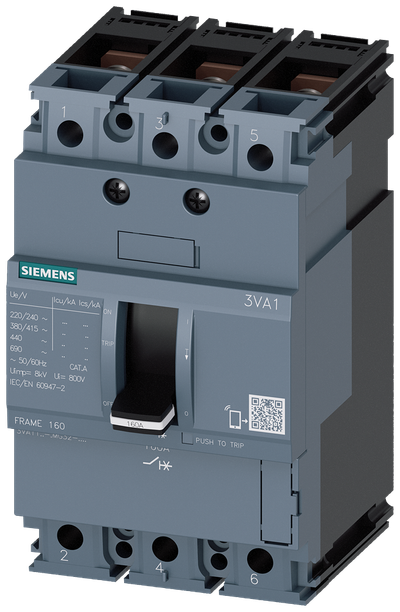

Siemens 3VA11, TM110M, 3P,12,5A,with BOLTTILCONNECTION70KA, II=200A, kortsltningsvern/starter protection
3VA1192-6MG32-0AA0
Siemens

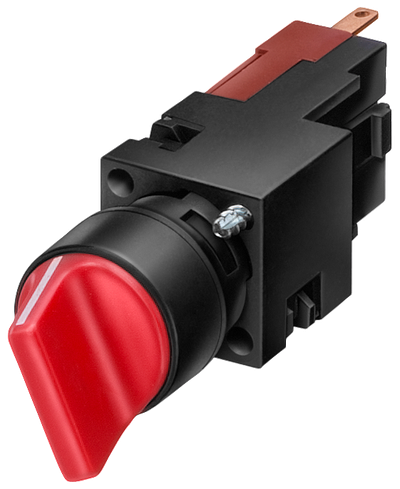

Siemens CHANGEOVER SWITCH 1-0-2 impulse 1S+1S
3SB2210-2EB01
Siemens

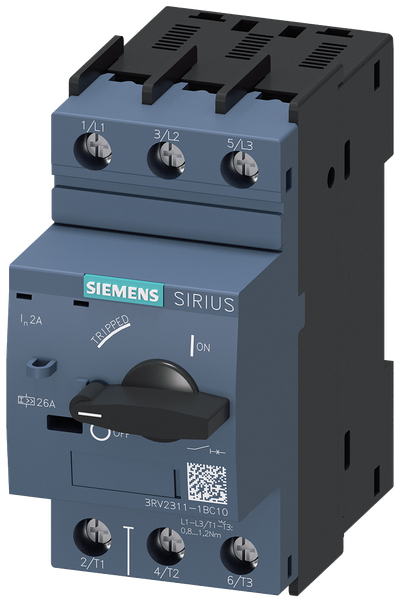

Siemens S00 Circuit breaker 2 A
3RV2311-1BC10
Siemens

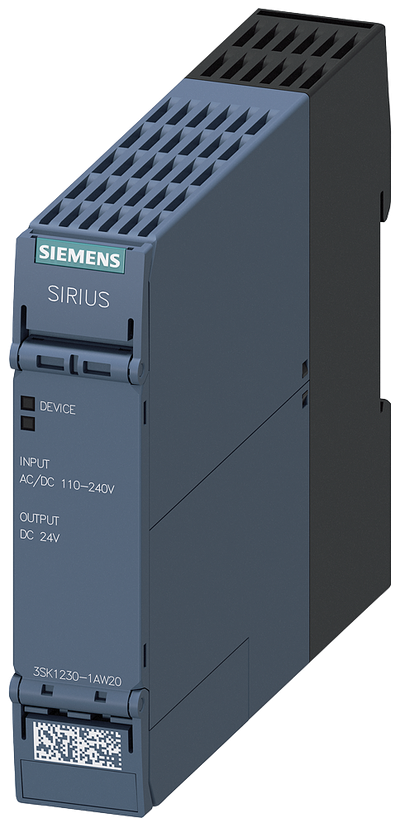

Siemens SIRIUS 3SK1 safety relay 3SK1230-1AW20
Siemens

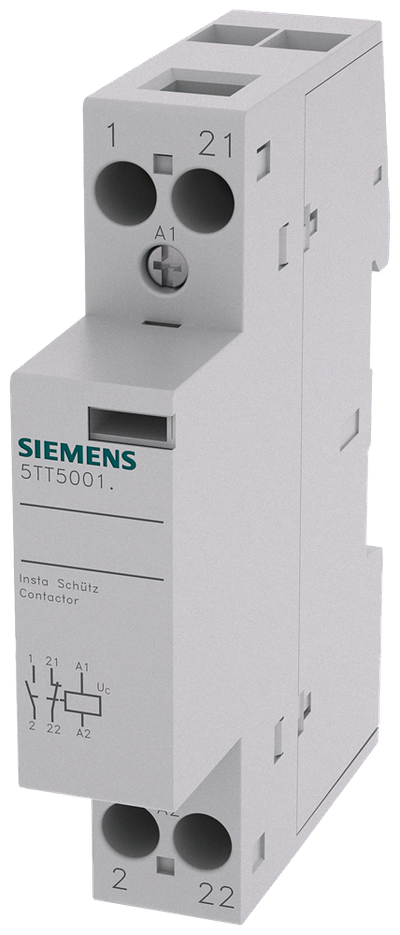

Siemens Contactor with 1 NO kont 5TT5001-2
Siemens

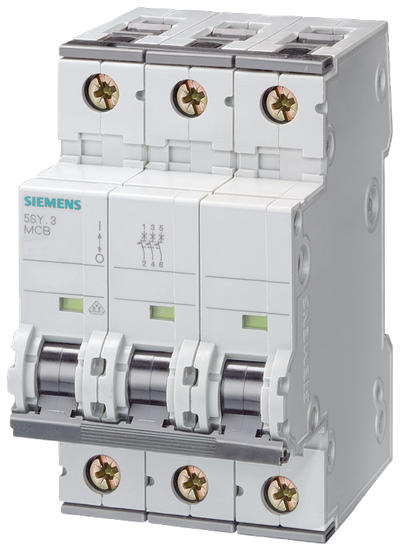

Siemens SENTRON 5SY8316-8 Miniature Circuit Breaker 3-Pole D16A 25KA
