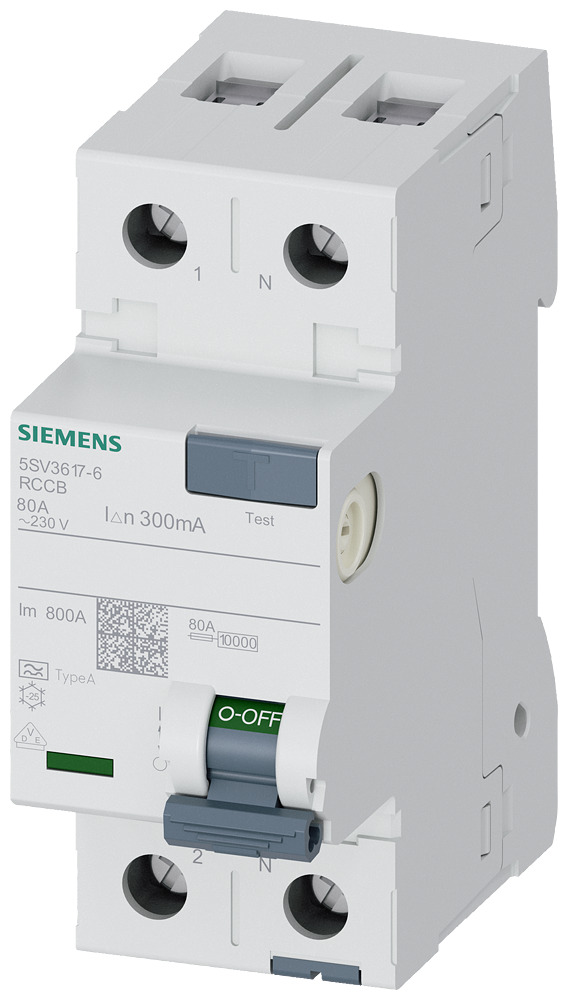

Siemens Residual current circuit breaker, 2-Pole, type A, In: 80 A, 300 mA, Un AC: 230 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV3617-6. Residual current circuit breaker type A, instantaneous, 2/80 300MA, tightening torque 2,5 Nm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV3617-6
- EAN / GTIN
- 4001869429748
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 80 A
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 2
- Rated fault current
- 300 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 36 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869429748
- SAP 1000502958
- Code 8619626
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9088-0VM10 — Rear mechanical interlock
Siemens
Siemens Auxiliary Contact Block for 3RA6 Compact Starter (3RA6911-2A)
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2026-1NP30
Siemens

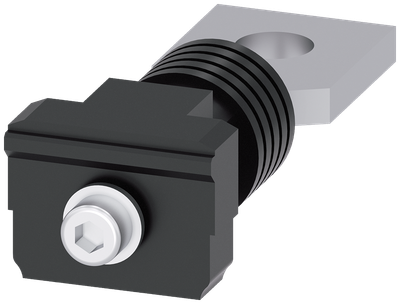

Siemens SENTRON 3VA9201-0QE10 — Rear connection terminal (flat bar), short, 3VA20 / 3VA21 / 3VA22
Siemens

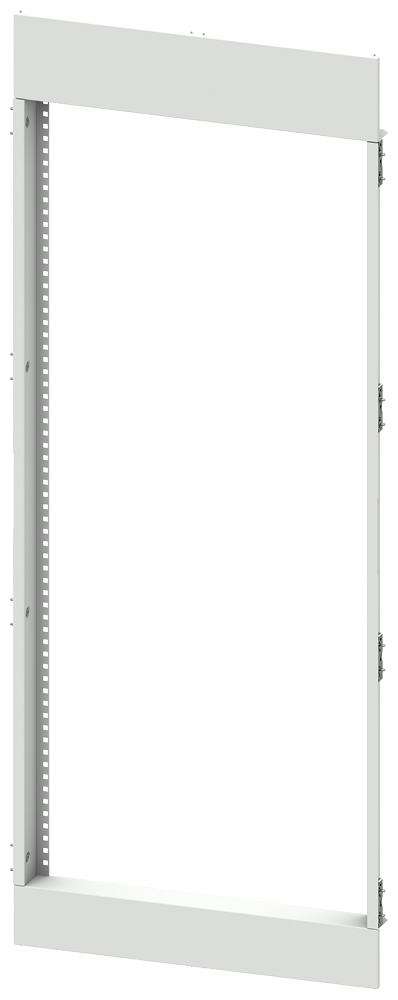

Siemens Fast cover frame for main busbar front
8PQ2000-8BA03
Siemens

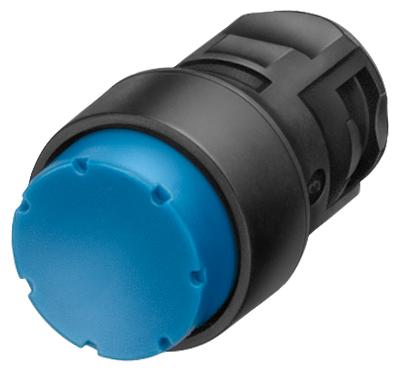

Siemens Push-button high black,16mm
3SB2000-0LB01
Siemens

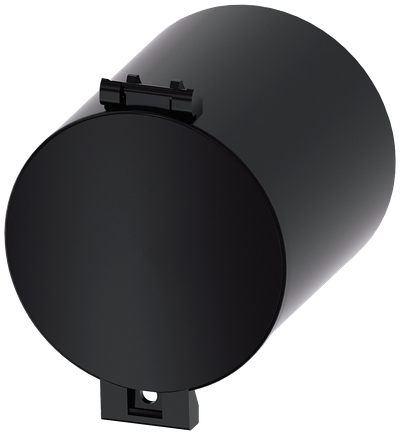

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0EL10-0AA0
