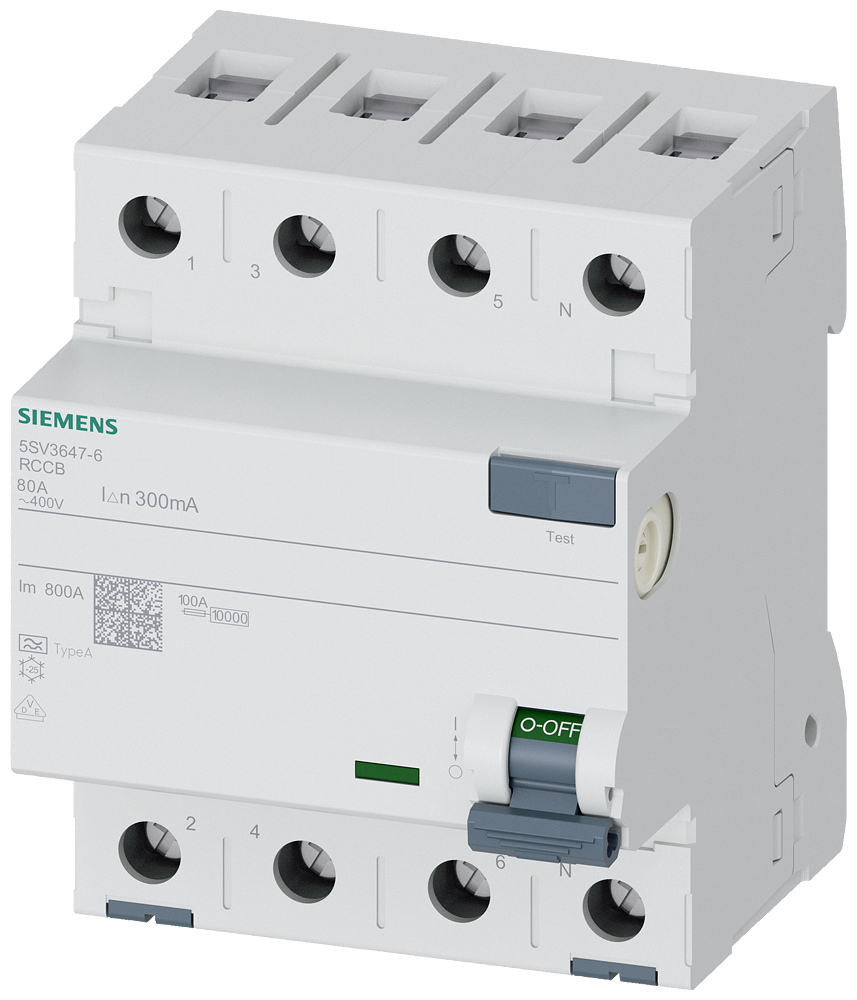

Siemens Residual current circuit breaker, 4-Pole, type A, In: 80 A, 300 mA, Un AC: 400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV3647-6. Residual current circuit breaker type A, instantaneous, 4/80 300MA, tightening torque 2,5 Nm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV3647-6
- EAN / GTIN
- 4001869427874
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 80 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 4.1 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869427874
- SAP 1000502970
- Code 8737812
Product Documentation
More from Siemens
Siemens
Siemens Alpha 400/630 Din, Set, mounting Plate with Blanking cover H=600 B=250
8GK4451-4KK12
Siemens
Siemens Coil 110V- 3TY6443-0BF4
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE14-0AP0
Siemens
Siemens Spare part for doorconnection, end head for handle 12mm
8UC6014
Siemens
Siemens Enclosure with Rotary handle, S2
3RV1933-1DA00
Siemens

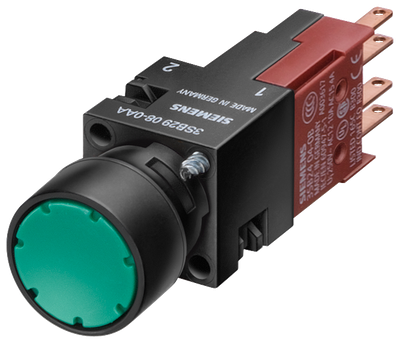

Siemens 3SB2203-0AC01
Siemens

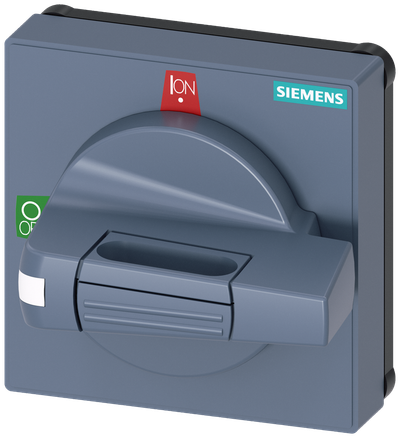

Siemens 8UD, size 1/size 2,rotary control,grey,lockable
8UD1771-2AD01
Siemens

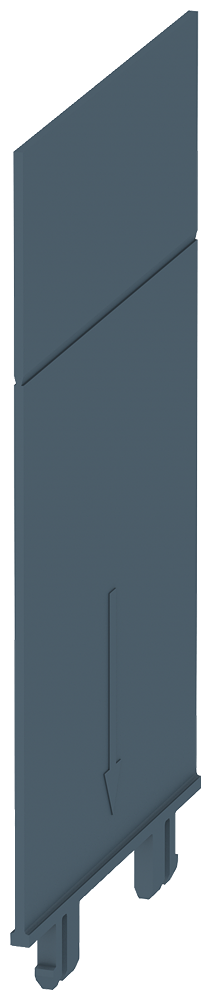

Siemens Accessory for 3KD ST4, phase barrierer, contains 8 pcs
