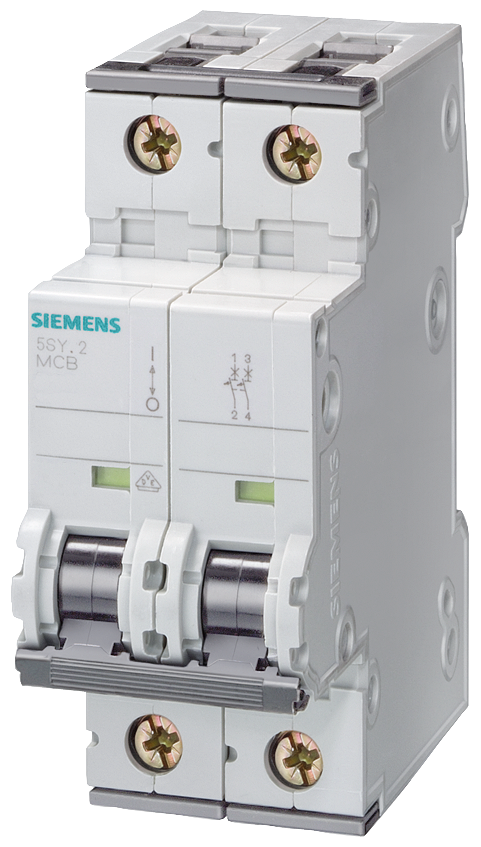

Siemens SENTRON 5SY8201-8 Miniature Circuit Breaker 2-Pole D1A 25KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY8 miniature circuit breaker, ordering number 5SY8201-8. 2-Pole DIN-rail MCB with D tripping characteristic (10–20 × In), rated current 1 A, rated voltage 400 V AC, rated short-circuit breaking capacity 25 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY8201-8
- Series
- Siemens SENTRON 5SY8
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 2-Pole
- Rated current (In)
- 1 A
- Tripping characteristic
- D (10–20 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 25 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869263441
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 6 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY8
- HS Code
- 8536.20
Cross References
- EAN 4001869263441
- SAP 1000065196
- Code 8905325
Product Documentation
More from Siemens
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 2, H: 1100 mm, W: 550 mm, D: 210 mm, RAL 9016
8GK1133-5KA22
Siemens
Siemens MCCB_3VA20_4P_55KA_ETU350,LSI,IN=40A,IR=16A-40A,ISD=1,5-10XIR,II=12XIN,B
3VA2040-5HN42-0AA0
Siemens
Siemens MCCB_3VA20_4P_55KA_ETU860,LSIG,IN=40A,IR=16A-40A,ISD=0,6-10XIN,II=1,5-12XIN,IG=0,2-1XIN,B
3VA2040-5KQ42-0AA0
Siemens
Siemens Sivacon S4 Separation FORM3 Vertical REAR 350X600
8PQ5000-4BA44
Siemens

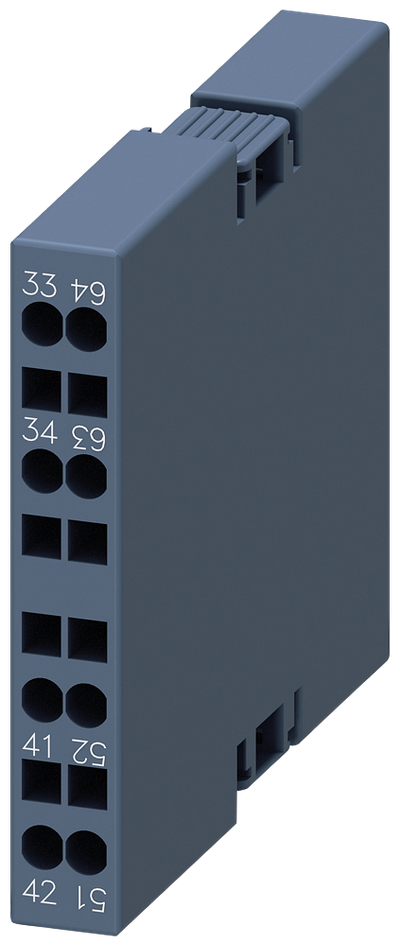

Siemens Contact Block for Electronic Komponenter S00 1NO+1NC Spring terminals
3RH2921-2DE11
Siemens

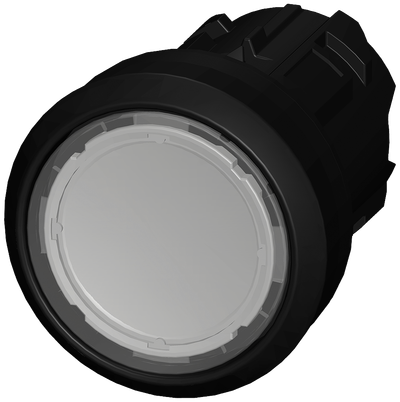

Siemens SIRIUS Pushbutton, 22 mm, round, plastic, clear, pushbutton, flat momentary contact type
3SU1000-0AB70-0AA0
Siemens

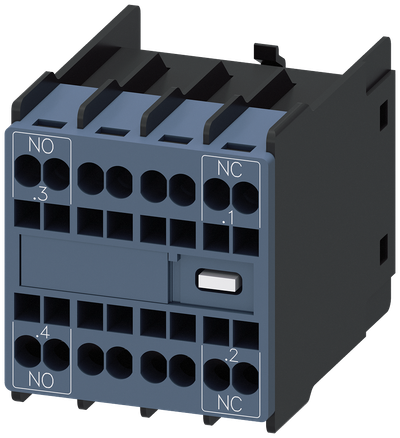

Siemens Contact Block for Electronic Komponenter 1NO+1NC Spring terminals
3RH2911-2NF11
Siemens

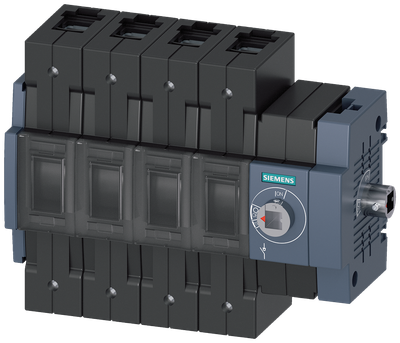

Siemens Load-break switch 80A,size 2,4-Pole,operation side right-hand,box terminal for Cu cable
