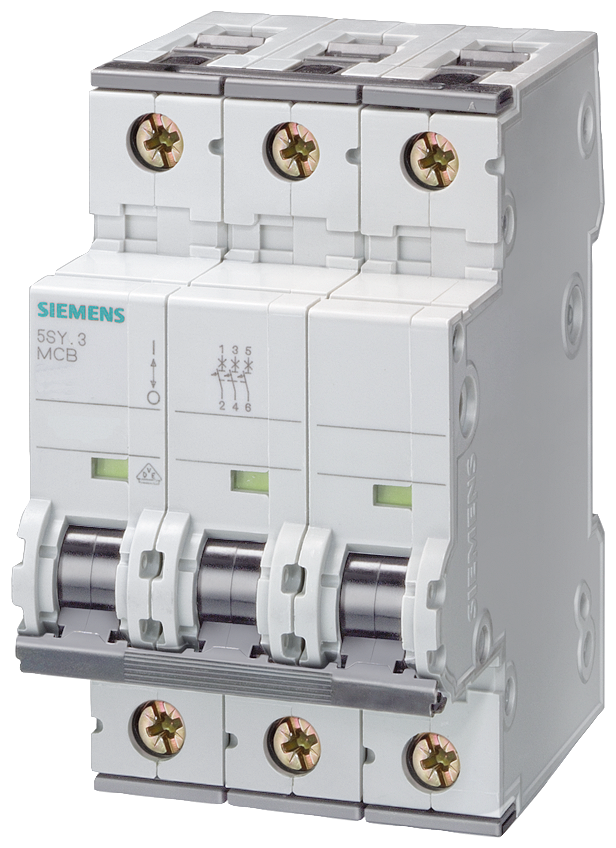

Siemens SENTRON 5SY8315-7 Miniature Circuit Breaker 3-Pole C1.6A 25KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY8 miniature circuit breaker, ordering number 5SY8315-7. 3-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 1.6 A, rated voltage 400 V AC, rated short-circuit breaking capacity 25 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY8315-7
- Series
- Siemens SENTRON 5SY8
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 3-Pole
- Rated current (In)
- 1.6 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 25 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869263632
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 4 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY8
- HS Code
- 8536.20
Cross References
- EAN 4001869263632
- SAP 1000026903
- Code 8239233
Product Documentation
More from Siemens
Siemens

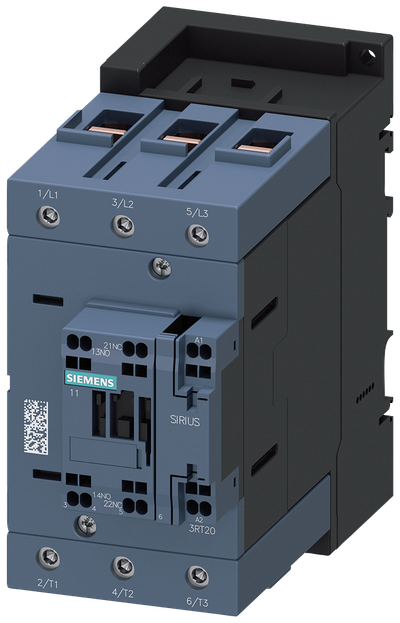

Siemens Contactor, AC3: 55KW/400V, 1NO+1NC, 20-33VAC/DC, 3-Pole, 3NO 3RT2047-3NB30
Siemens

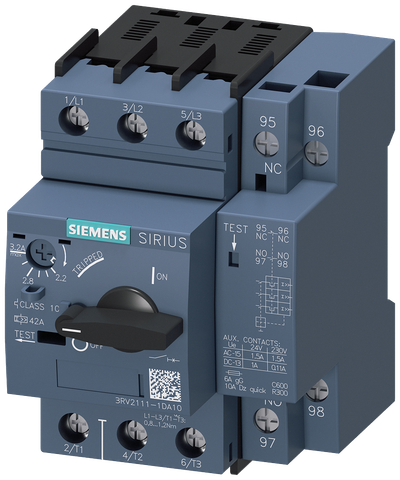

Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2111-1DA10
Siemens

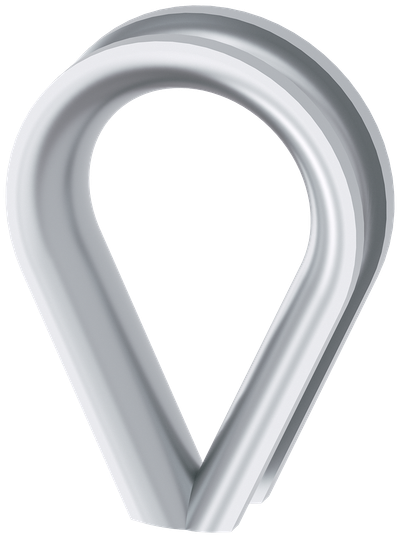

Siemens 3SE7930-1AC
Siemens

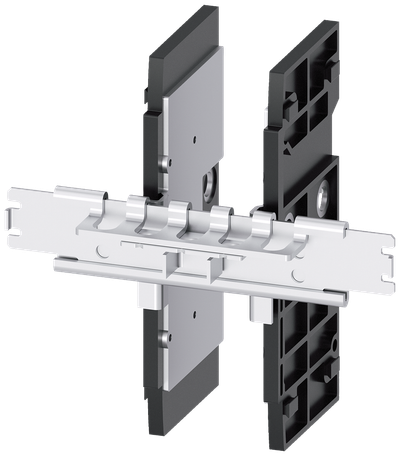

Siemens SENTRON 3VA9258-0VF30 — Sliding-bar mechanical interlock, 3VA12
Siemens

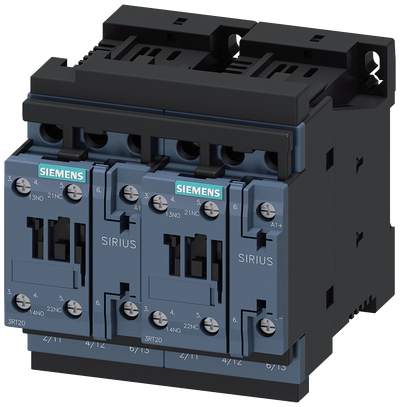

Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 38 A, 18.5 kW / 400 V, 3-Pole, 24 V DC, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1
3RA2328-8XB30-1BB4
Siemens

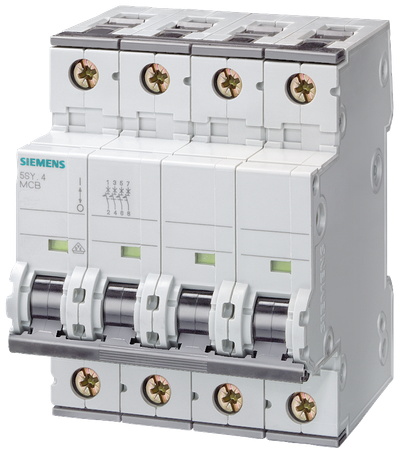

Siemens SENTRON 5SY7415-7 Miniature Circuit Breaker 4-Pole C1.6A 15KA
