Siemens SENTRON 5SY8106-7 Miniature Circuit Breaker 1-Pole C6A 25KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY8 miniature circuit breaker, ordering number 5SY8106-7. 1-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 6 A, rated voltage 230/400 V AC, rated short-circuit breaking capacity 25 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY8106-7
- Series
- Siemens SENTRON 5SY8
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 1-Pole
- Rated current (In)
- 6 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 230/400 V AC
- Rated short-circuit breaking capacity (Icn)
- 25 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869262956
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 12 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY8
- HS Code
- 8536.20
Cross References
- EAN 4001869262956
- SAP 1000082778
- Code 8787670
Product Documentation
More from Siemens
Siemens

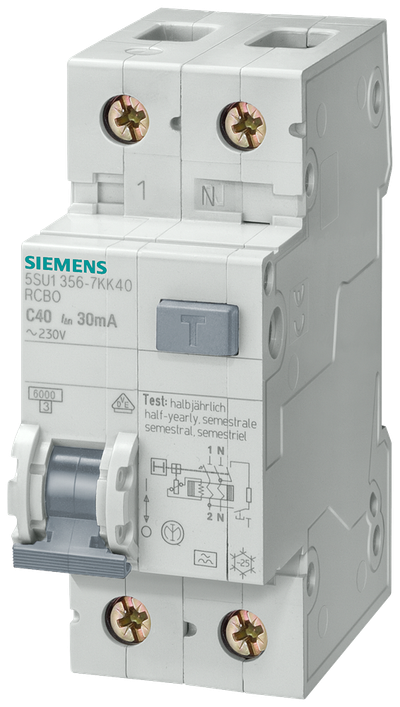

Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 30MA,6KA, 1+N-Pole C 13A
5SU1356-7KK13
Siemens

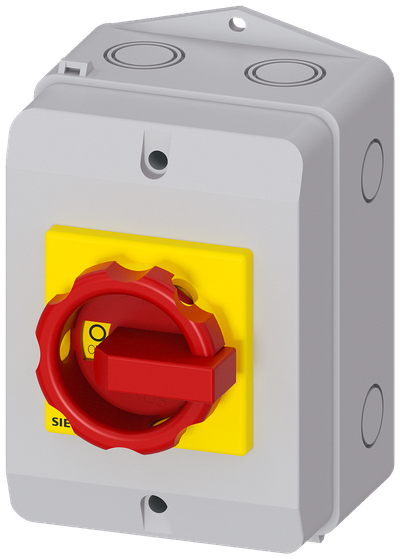

Siemens 3LD, E-STOP switch, 3-P, Iu:32 A, AC-23/400V: 11,5 kW, plastic IP65, 1NC+1NO, rotary switch, r/g
3LD2264-1GP53
Siemens

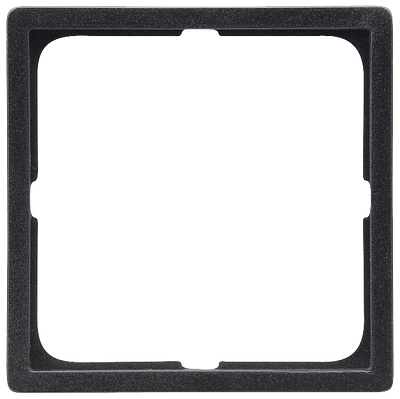

Siemens 7KT9000
Siemens

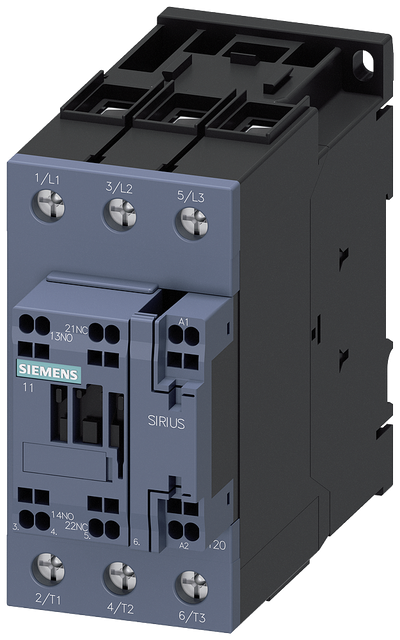

Siemens SIRIUS Contactor, S2, 50A 1NO+1NC, 230V AC, 3-Pole 3RT2036-3AP00
Siemens

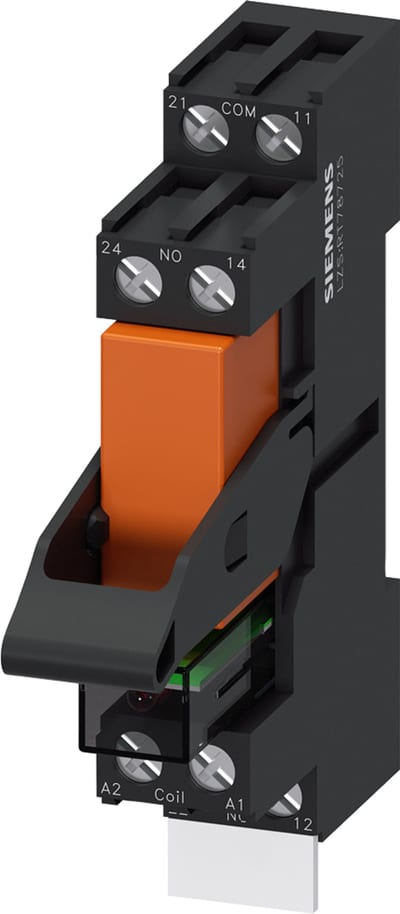

Siemens Relay Komp LZS:RT4A4T30
Siemens

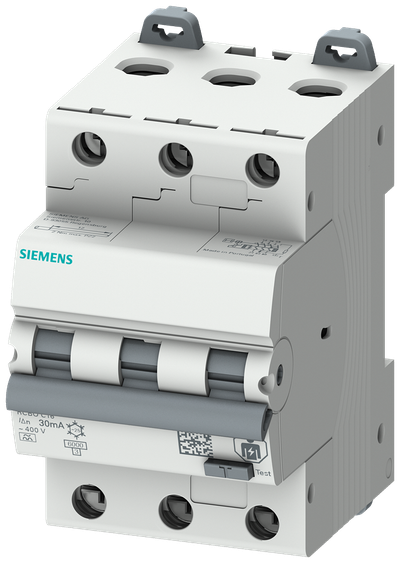

Siemens Residual current circuit breaker with overcurrent, 3P, 32A, Type A 300MA, C-Curve, 6 kA, Un: 400V only, conductor cross-section 35 mm², torque 2Nm
5SU1636-7FP32
Siemens
Siemens SENTRON 5SY8132-7 Miniature Circuit Breaker 1-Pole C32A 25KA
Siemens

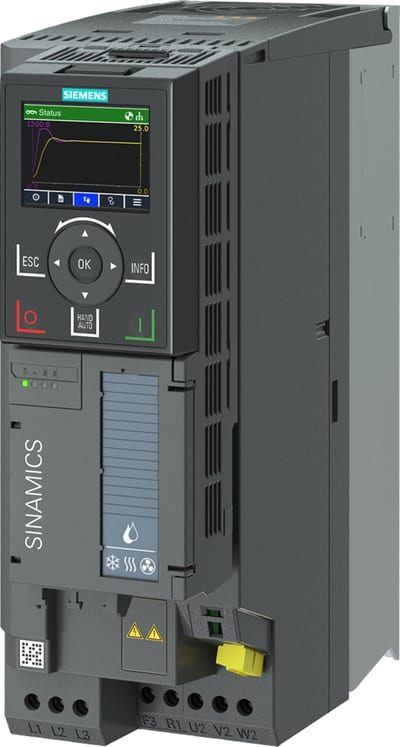

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE24-0UF0
