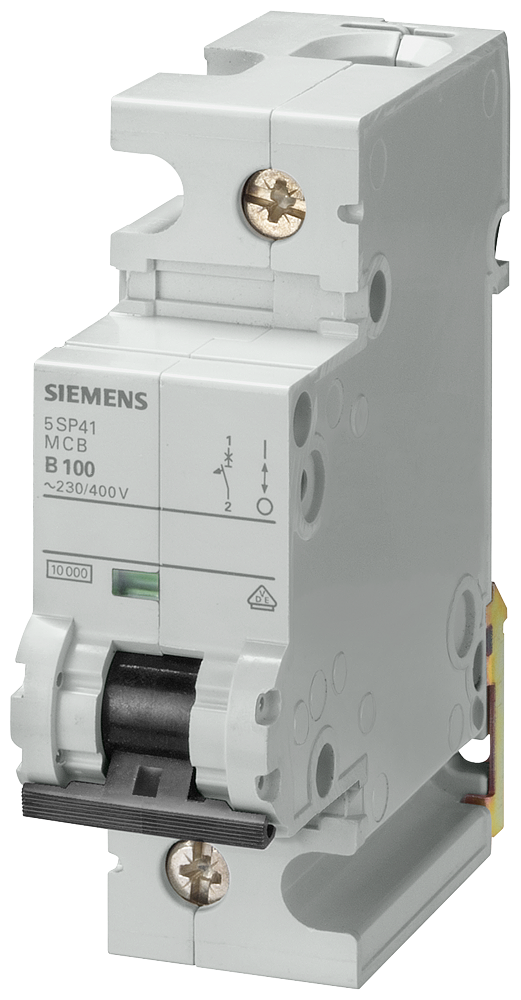

Siemens SENTRON 5SP4191-6 Miniature Circuit Breaker 1-Pole B100A 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SP4 miniature circuit breaker, ordering number 5SP4191-6. 1-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 100 A, rated voltage 230/400 V AC, rated short-circuit breaking capacity 10 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–50 mm², tightening torque 3–3.5 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SP4191-6
- Series
- Siemens SENTRON 5SP4
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 1-Pole
- Rated current (In)
- 100 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 230/400 V AC
- Rated short-circuit breaking capacity (Icn)
- 10 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–50 mm²
- Terminal tightening torque
- 3–3.5 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869195032
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 6 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SP4
- HS Code
- 8536.20
Cross References
- EAN 4001869195032
- SAP 1000048512
- Code 8799695
Product Documentation
More from Siemens
Siemens

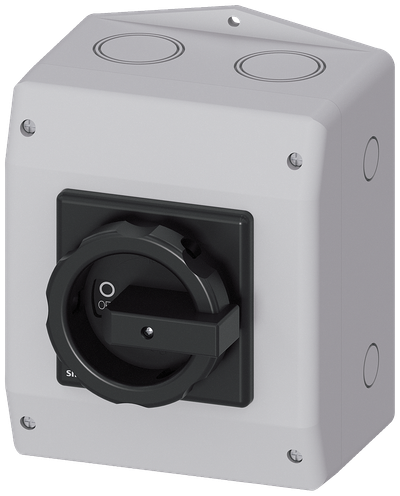

Siemens 3LD, Main switch, 4- p, Iu:63 A, AC-23/400V: 22 kW,plastic IP65, 1NC, 1NO, rotary switch, black
3LD2565-1TC51
Siemens

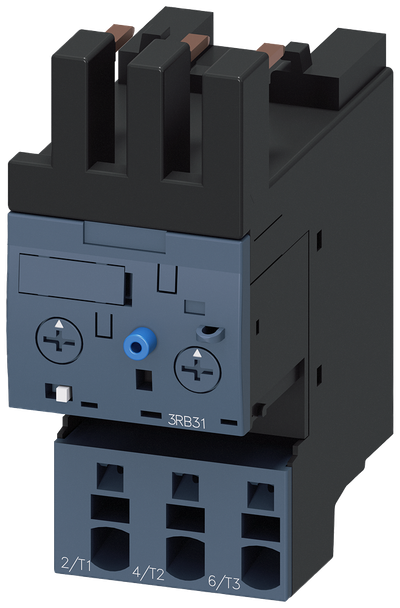

Siemens 3RB3123-4QE0 SIRIUS 3RB3 Solid-State Overload Relay with Ground-Fault Detection — 6 – 25 A, Size S0, Spring-Loaded Terminals
Siemens

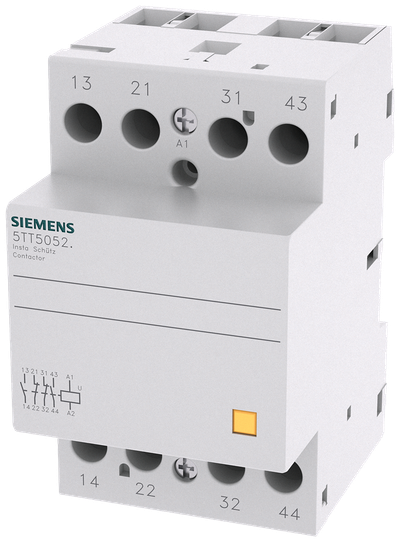

Siemens Contactor with 2 NO kont 5TT5052-0
Siemens

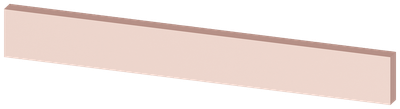

Siemens Alpha 630/1600 Din, Copper Busbar 30X10MM, 630A, L=250
8GK9736-0KK10
Siemens

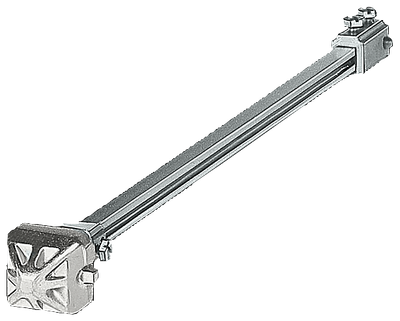

Siemens Spare part for 3KD ST 1-2, doorconnection handle 300mm long 8 X 8mm
8UC6032
Siemens

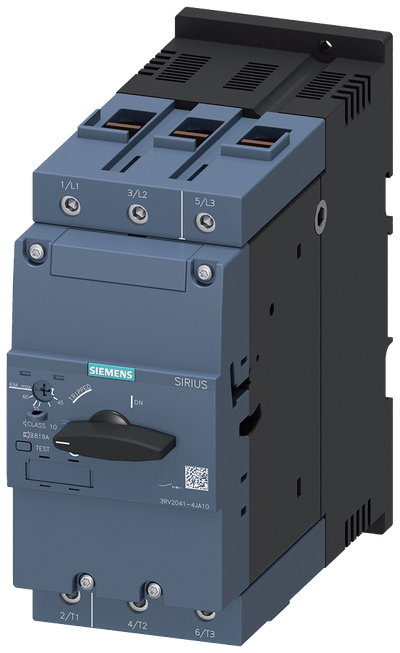

Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2041-4JA10
Siemens

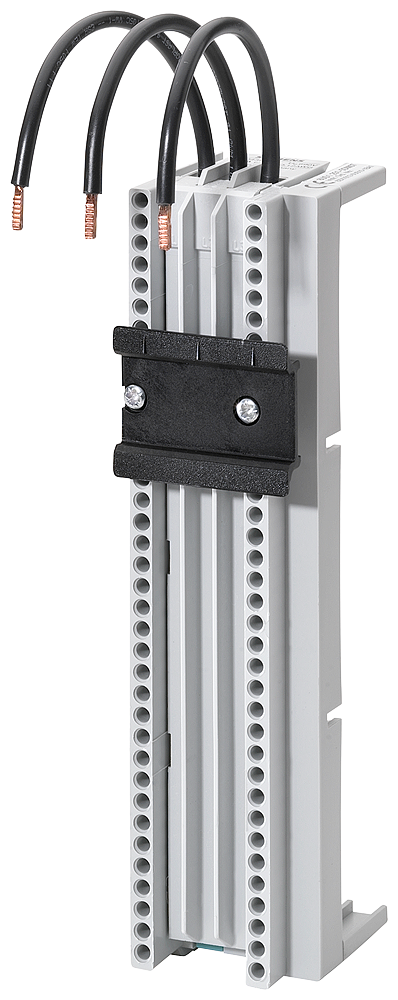

Siemens RAILADAPTER/S00-S0,45mm
8US1251-5DM07
Siemens

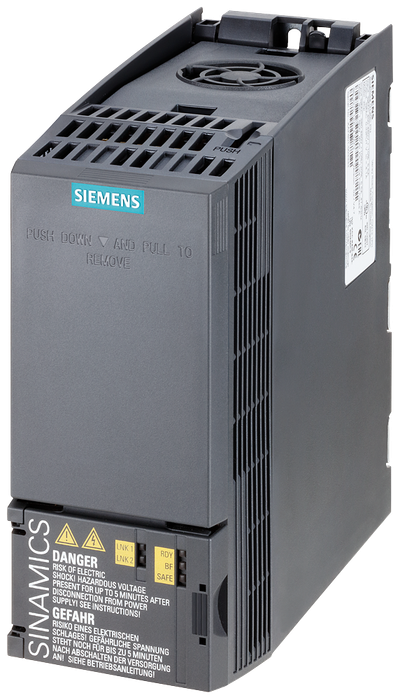

Siemens SINAMICS G120C rated power 3AC380-480V +10/-20% 47-63Hz 6SL3210-1KE15-8AF2
