Siemens SENTRON 5SY7413-7 Miniature Circuit Breaker 4-Pole C13A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7413-7. 4-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 13 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7413-7
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 4-Pole
- Rated current (In)
- 13 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869191485
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 3 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869191485
- SAP 1000077223
- Code 8806269
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9257-0SB30 — Door frame (escutcheon) for MO320 motor operator, 3VA12
Siemens
Siemens External operating mechanism basic 230 V AC
5ST3054
Siemens
Siemens MCCB_3VA20_4P_55KA_ETU550,LSI,IN=25A,IR=10A-25A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2025-5JP42-0AA0
Siemens
Siemens Contactor, AC3: 37KW/400V, 1NO+1NC, 175-280VAC/DC, 3-Pole, 3NO 3RT2045-1NP30
Siemens
Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 1.40...2.00 A 230 V AC Spring-type terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
3RA2210-1BE15-2AP0
Siemens

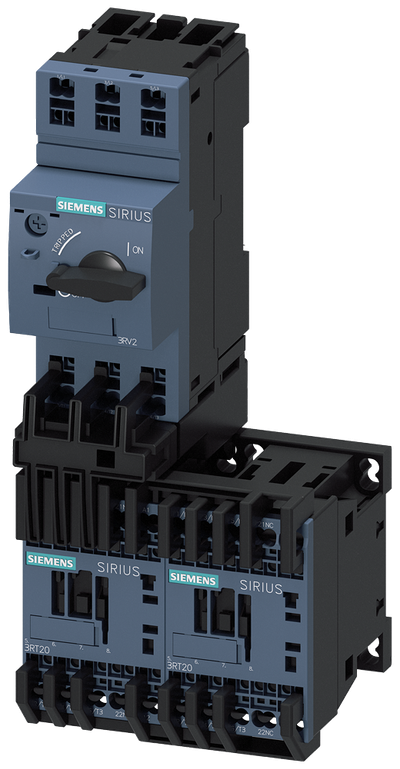

Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 3.50...5.00 A 230 V AC Spring-type terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NC (contactor)
3RA2210-1FE15-2AP0
Siemens

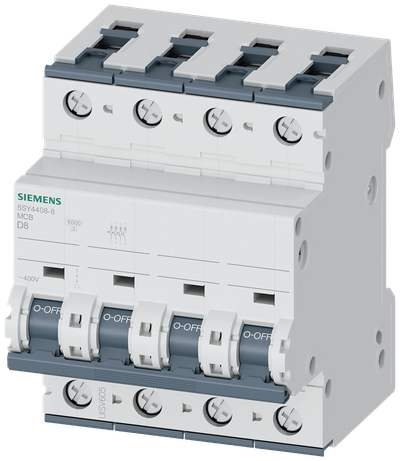

Siemens SENTRON 5SY4408-8 Miniature Circuit Breaker 4-Pole D8A 10KA
Siemens

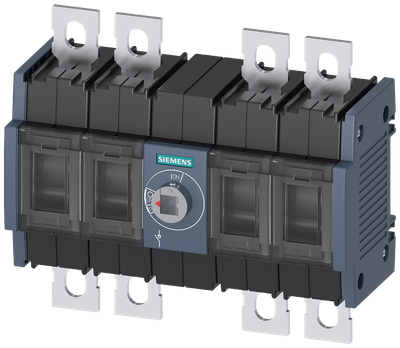

Siemens SENTRON 3KD Switch-Disconnector 3KD3440-0NE20-0, 160 A, 4-Pole, Front Operated Centre, without Rotary Handle
