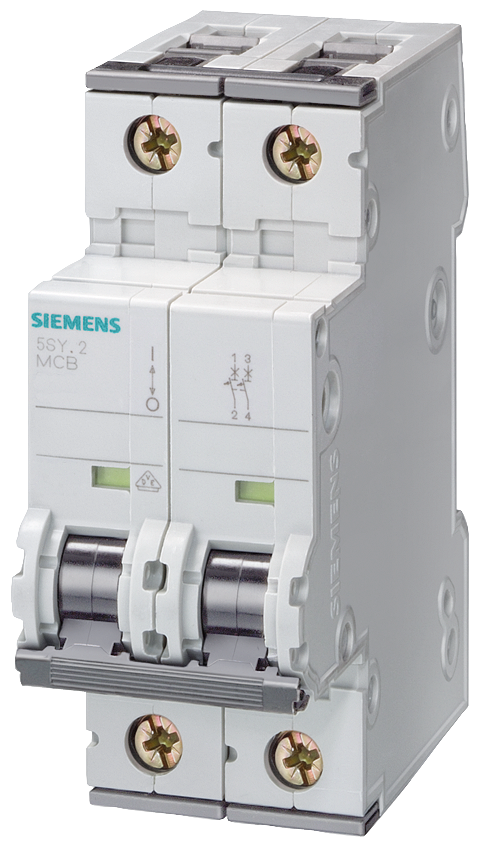

Siemens SENTRON 5SY7225-7 Miniature Circuit Breaker 2-Pole C25A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7225-7. 2-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 25 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7225-7
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 2-Pole
- Rated current (In)
- 25 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869190945
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 6 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869190945
- SAP 1000066807
- Code 8554792
