Siemens SENTRON 5SY7463-6 Miniature Circuit Breaker 4-Pole B63A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7463-6. 4-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 63 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7463-6
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 4-Pole
- Rated current (In)
- 63 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869191379
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869191379
- SAP 1000135306
- Code 8639041
Product Documentation
More from Siemens
Siemens
Siemens 6ES7138-6CG00-0BA0 SIMATIC ET 200SP TM Timer DIDQ 10x24V 4 DI I/O
Siemens
Siemens SIRIUS 3SK1 safety relay 3SK1213-1AL20
Siemens
Siemens SIRIUS ACT Selector switch, illuminable, 22 mm, round, plastic, green, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H
3SU1002-2BF40-0AA0
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2024-1AF00
Siemens
Siemens SITRANS pressure transmitter 7MF1567-3CB00-1AA1
Siemens

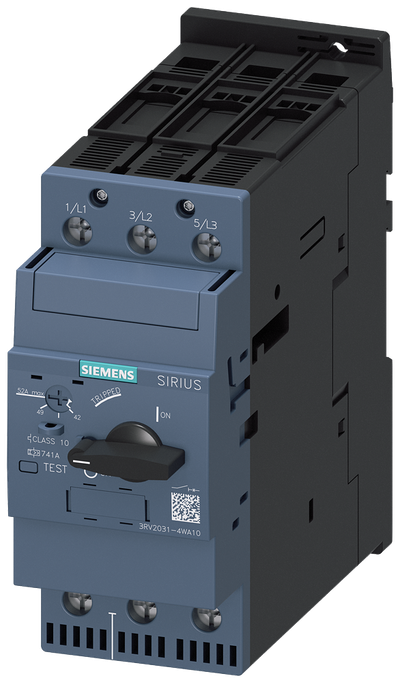

Siemens SIRIUS Motor protection circuit breaker 42 3RV2031-4WA10
Siemens

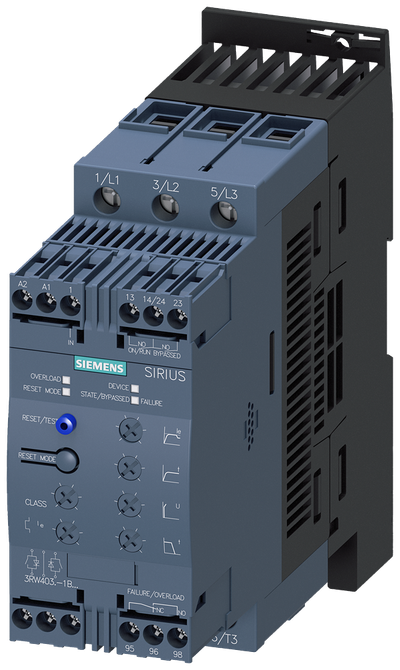

Siemens SIRIUS 3RW soft starter 3RW4037-1BB14
Siemens

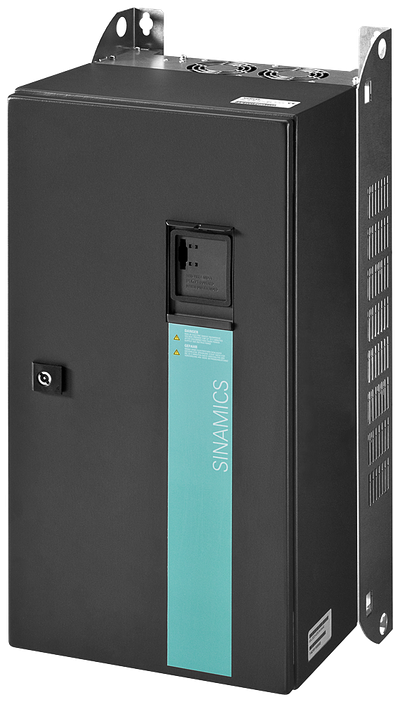

Siemens Sinamics G120P PM230 3AC 400V 45kW with integrated filter kl 6SL3223-0DE34-5BA0
