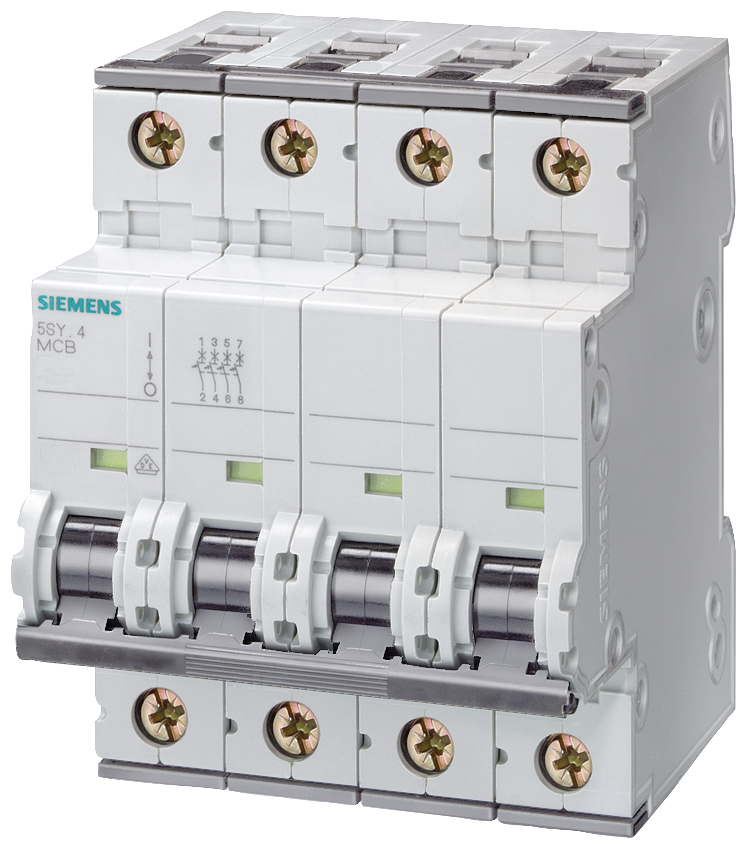

Siemens SENTRON 5SY7440-6 Miniature Circuit Breaker 4-Pole B40A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7440-6. 4-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 40 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7440-6
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 4-Pole
- Rated current (In)
- 40 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869191355
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 3 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869191355
- SAP 1000028990
- Code 8257519
Product Documentation
More from Siemens
Siemens
Siemens Alpha 400 Din, Panel board Surface-mounted mounting, Delivery Form Flat Pack, Ap-Cabinet, Colour Ral 9016 8GK1102-5KK22
Siemens
Siemens Contactor Relay, 6NO+2NC, AC 230V, 50/60Hz, Size S00, Screw Terminal Connection
3RH2262-1AP00
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1150-1BA201-1CA0
Siemens
Siemens Fuse switch-disconnector 3NP1133-1JB20
Siemens
Siemens Residual current circuit breaker A 40/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, Short-Time Delayed K 5SV36146KK01
Siemens
Siemens 3SB2204-6BH06
Siemens
Siemens Contactor Relay, 4NO, AC 24V, 50/60Hz, Size S00, Spring Terminal Connection
3RH2140-2AB00
Siemens
Siemens 3VA11, 55KA, 3-Pole, TM240, IN=125A,IR=87,5A 3VA1112-5EF360-0AA0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SY7440-6?
- 5SY7440-6 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SY7440-6.
- What is the HS code for 5SY7440-6?
- The customs tariff (HS) code for 5SY7440-6 is 8536.20.
- Who manufactures 5SY7440-6?
- 5SY7440-6 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 5SY7440-6?
- Yes — the 5SY7440-6 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SY7440-6?
- The minimum order quantity is 1.
- Is 5SY7440-6 available?
- Yes — 5SY7440-6 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
