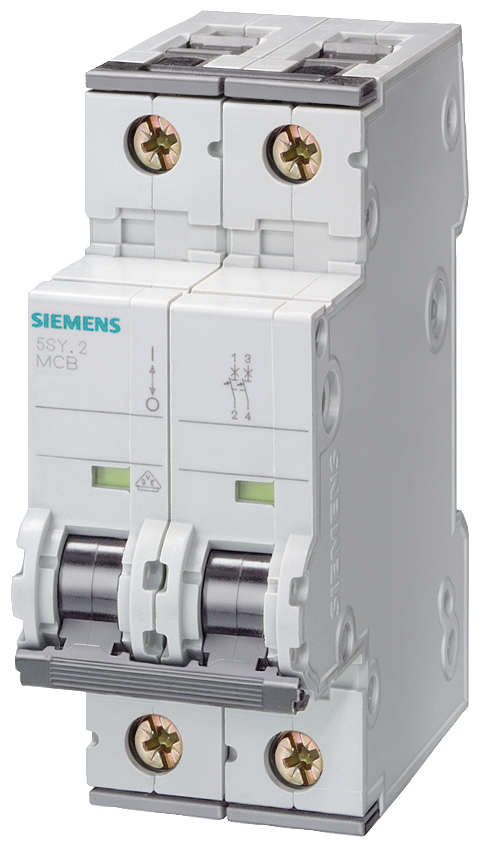

Siemens SENTRON 5SY7210-6 Miniature Circuit Breaker 2-Pole B10A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7210-6. 2-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 10 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7210-6
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 2-Pole
- Rated current (In)
- 10 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869190723
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 6 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869190723
- SAP 1000025609
- Code 8226826
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU19000AC160DC0
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD2640-2ME20-0, 63 A, 4-Pole, Front Operated Centre, with Rotary Handle
Siemens
Siemens 3ND1812
Siemens

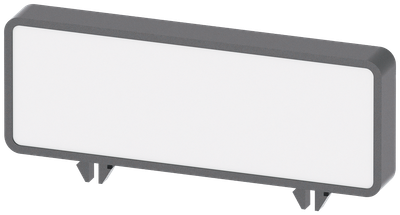

Siemens SENTRON 3VA9087-0SX10 — Marking plate for the manual operating mechanism
Siemens

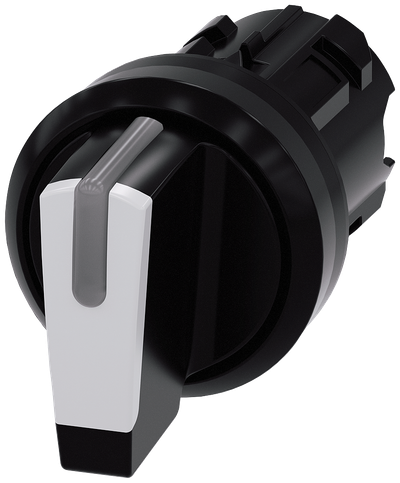

Siemens SIRIUS ACT Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 3 switch positions I>O<II, momentary contact type, actuating angle 2X45°, 10:30H/12H/13:30H
3SU1002-2BM60-0AA0
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1150-2BF603-3MA0
Siemens

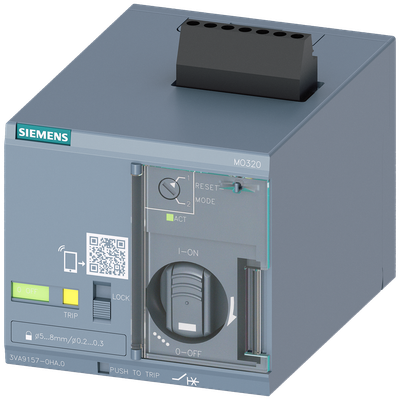

Siemens SENTRON 3VA9157-0HA20 — Motor operating mechanism (stored-energy), 110–230 V AC / 110–250 V DC, 3VA11
Siemens

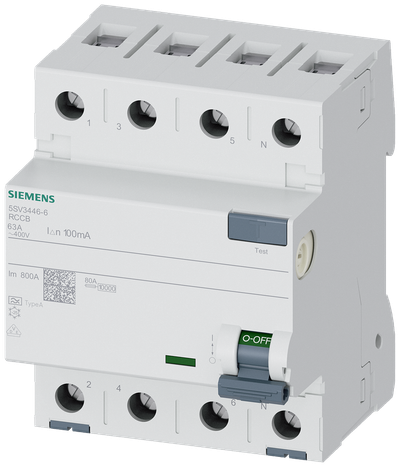

Siemens Residual current circuit breaker, 4-Pole, type A, In: 63 A, 100 mA, Un AC: 400 V
