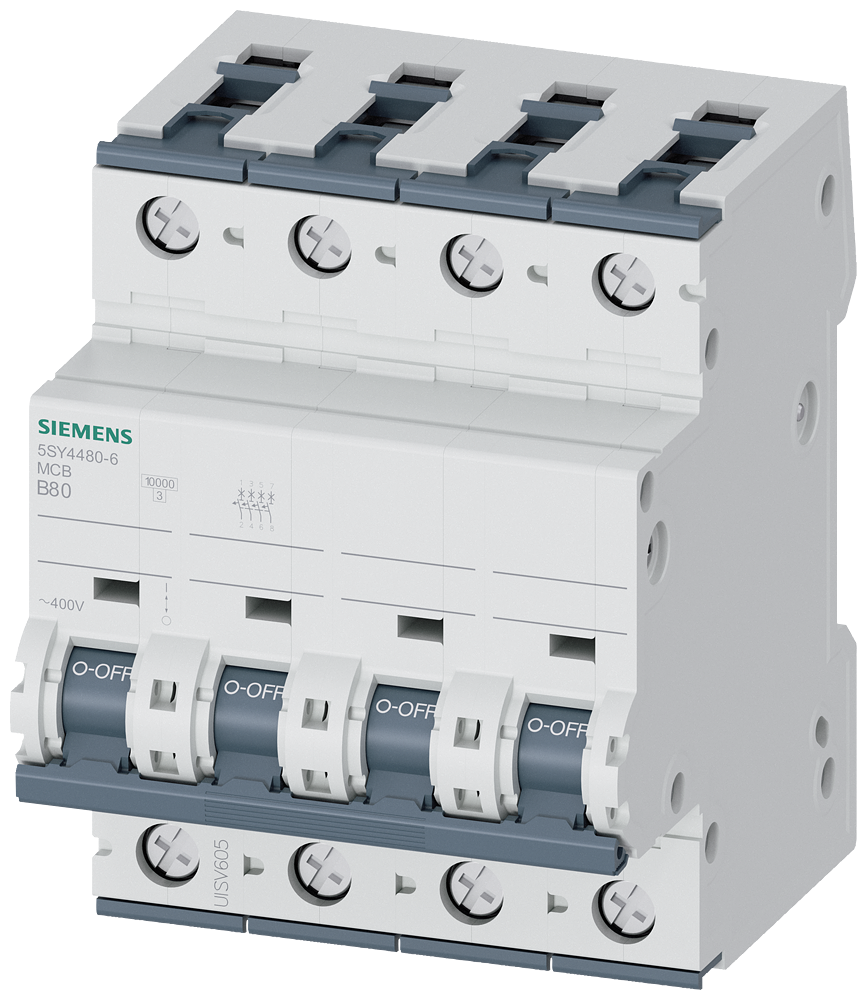

Siemens SENTRON 5SY4480-6 Miniature Circuit Breaker 4-Pole B80A 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY4 miniature circuit breaker, ordering number 5SY4480-6. 4-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 80 A, rated voltage 400 V AC, rated short-circuit breaking capacity 10 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY4480-6
- Series
- Siemens SENTRON 5SY4
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 4-Pole
- Rated current (In)
- 80 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 10 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869304755
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 3 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY4
- HS Code
- 8536.20
Cross References
- EAN 4001869304755
- SAP 1000061047
- Code 8919074
Product Documentation
More from Siemens
Siemens
Siemens 3VA11, 25KA, 4-Pole, TM240, IN=32A,IR=22,4A 3VA1132-3GF46-0AA0
Siemens
Siemens Front foil for Panels 10"
6AV6671-3DC00-0AX0
Siemens
Siemens Residual current circuit breaker, 4-Pole, type A, In: 63 A, 300 mA, Un AC: 500 V
5SV36566
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2017-1BB42-0CC0
Siemens
Siemens SENTRON 3VA9211-0WJ30 — Insulation backplate, 3-Pole, 3VA12
Siemens
Siemens SENTRON 5SY4150-8 Miniature Circuit Breaker 1-Pole D50A 10KA
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2023-1BB44
Siemens
Siemens Residual current circuit breaker, 4-Pole, type A, In: 25 A, 300 mA, Un AC: 500 V
5SV36526
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SY4480-6?
- 5SY4480-6 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SY4480-6.
- What is the HS code for 5SY4480-6?
- The customs tariff (HS) code for 5SY4480-6 is 8536.20.
- Who manufactures 5SY4480-6?
- 5SY4480-6 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 5SY4480-6?
- Yes — the 5SY4480-6 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SY4480-6?
- The minimum order quantity is 1.
- Is 5SY4480-6 available?
- Yes — 5SY4480-6 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
