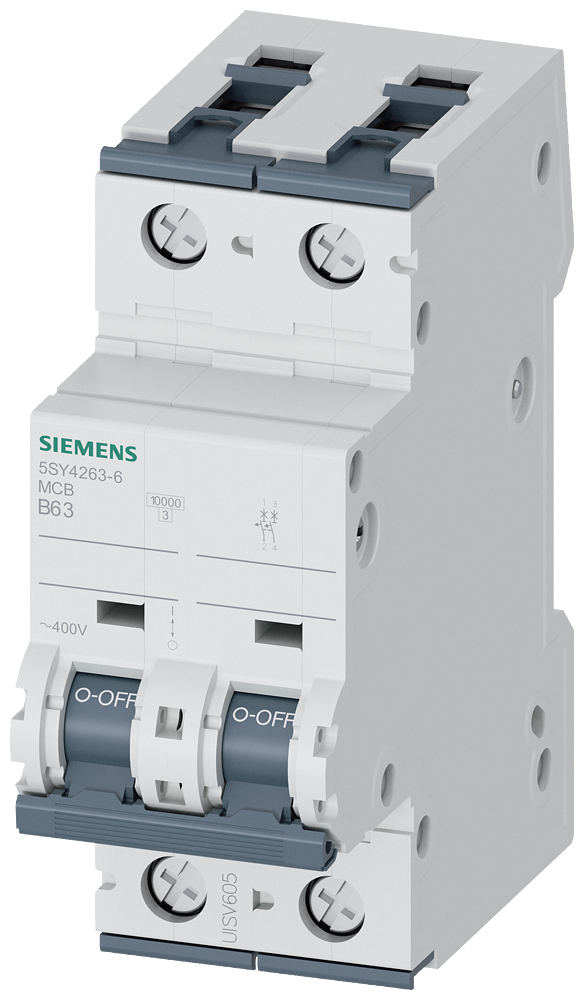

Siemens SENTRON 5SY4263-6 Miniature Circuit Breaker 2-Pole B63A 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY4 miniature circuit breaker, ordering number 5SY4263-6. 2-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 63 A, rated voltage 400 V AC, rated short-circuit breaking capacity 10 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY4263-6
- Series
- Siemens SENTRON 5SY4
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 2-Pole
- Rated current (In)
- 63 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 10 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869181554
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 6 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY4
- HS Code
- 8536.20
Cross References
- EAN 4001869181554
- SAP 1000055592
- Code 8887305
Product Documentation
More from Siemens
Siemens

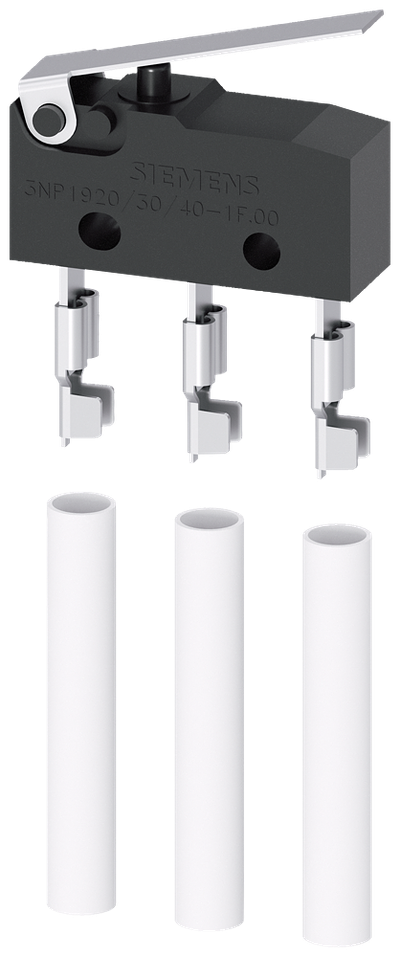

Siemens NH000 auxiliary contact, 1 co connector
3NP1920-1FA00
Siemens

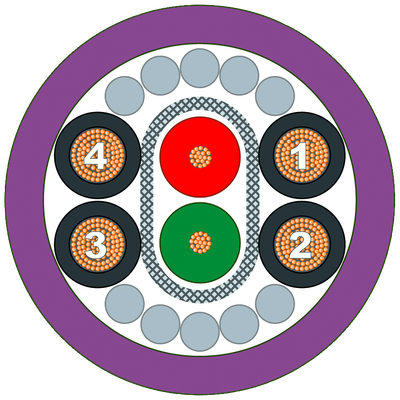

Siemens 6XV1830-7BN10
Siemens

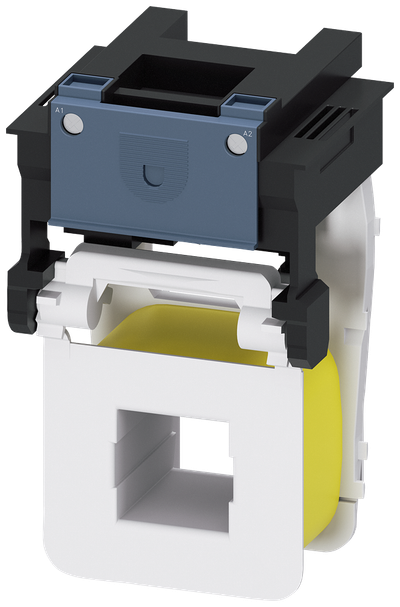

Siemens Coil for size S10 3RT1966-5AV31
Siemens

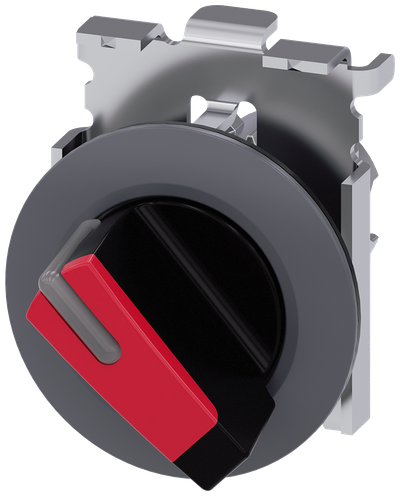

Siemens SIRIUS Selector switch, illuminable, 30 mm, round, metal, matte, red, selector switch, short, front ring for flush installation, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H
3SU1062-2DF20-0AA0
Siemens

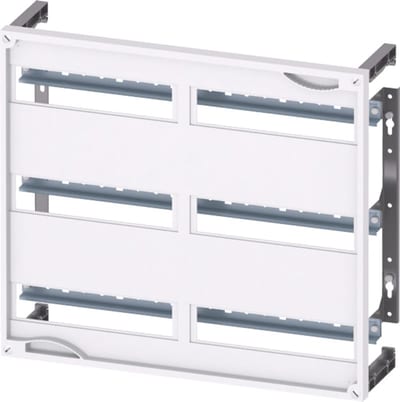

Siemens Alpha 400/630 Din, Set for Install 8GK4301-3KK22
Siemens

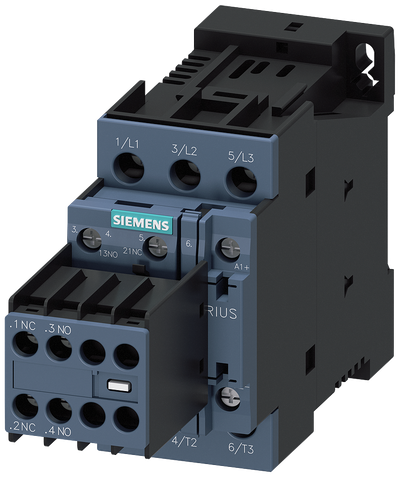

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2026-1BB44
Siemens

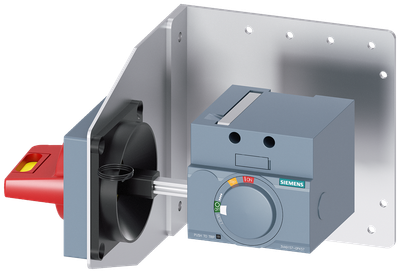

Siemens SENTRON 3VA9157-0PK57 — Side-wall rotary operating mechanism with coupling plate, 3VA10 / 3VA11
Siemens

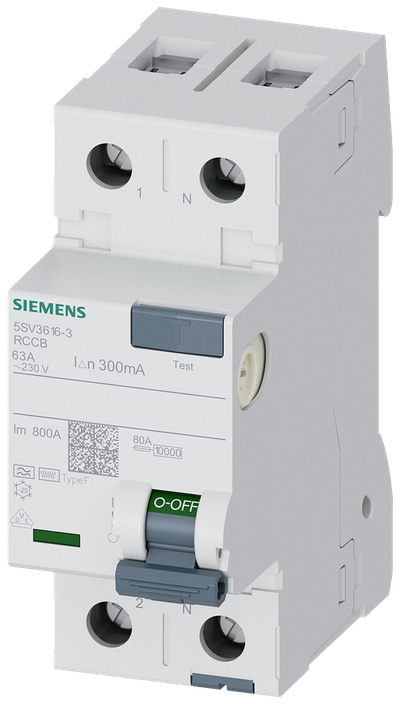

Siemens Residual current circuit breaker F 63/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 5SV36163
