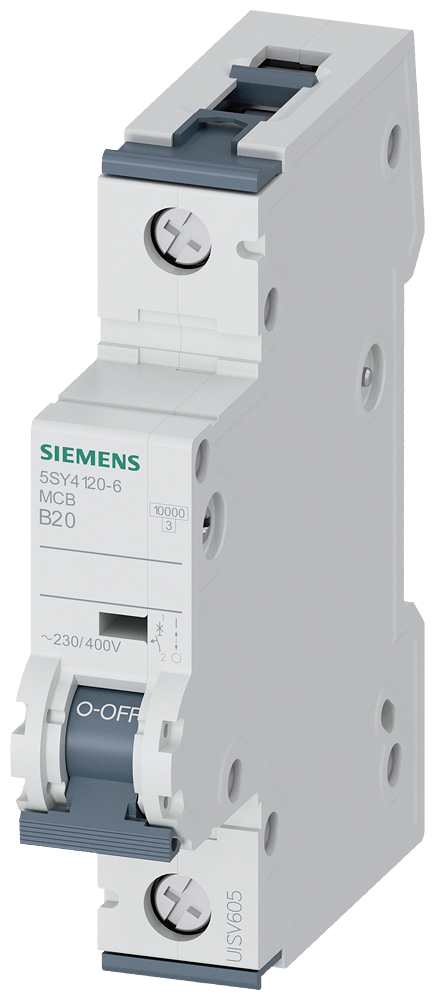

Siemens SENTRON 5SY4120-6 Miniature Circuit Breaker 1-Pole B20A 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY4 miniature circuit breaker, ordering number 5SY4120-6. 1-Pole DIN-rail MCB with B tripping characteristic (3–5 × In), rated current 20 A, rated voltage 230/400 V AC, rated short-circuit breaking capacity 10 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY4120-6
- Series
- Siemens SENTRON 5SY4
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 1-Pole
- Rated current (In)
- 20 A
- Tripping characteristic
- B (3–5 × In)
- Rated voltage (Ue)
- 230/400 V AC
- Rated short-circuit breaking capacity (Icn)
- 10 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869181226
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 12 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY4
- HS Code
- 8536.20
Cross References
- EAN 4001869181226
- SAP 1000045452
- Code 8528126
Product Documentation
More from Siemens
Siemens

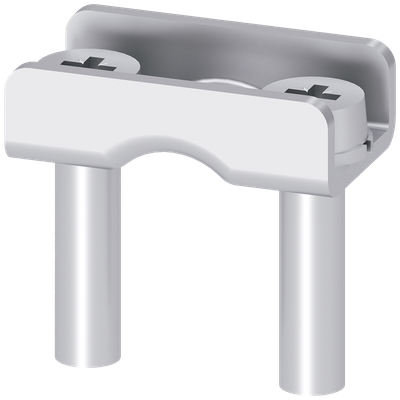

Siemens Sadelklemme
3NP1933-1BA00
Siemens

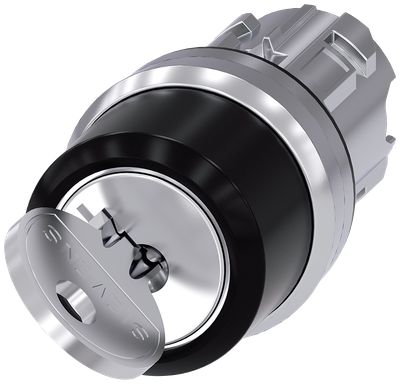

Siemens SIRIUS RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H, key removal O+I, possible special locks: SB31, 421, 455
3SU1050-4BF11-0AA0
Siemens

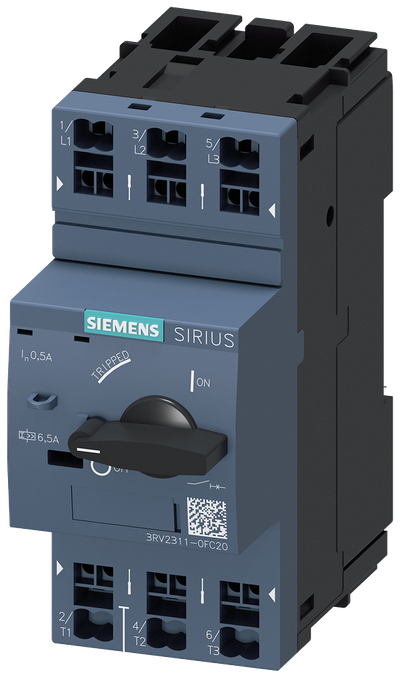

Siemens Circuit breaker 0 3RV2311-0FC20
Siemens

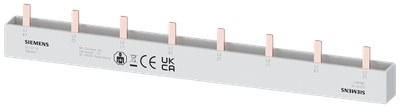

Siemens Busbar, 16 mm² 3X1 Phase+Hs, L= 214mm with End caps
