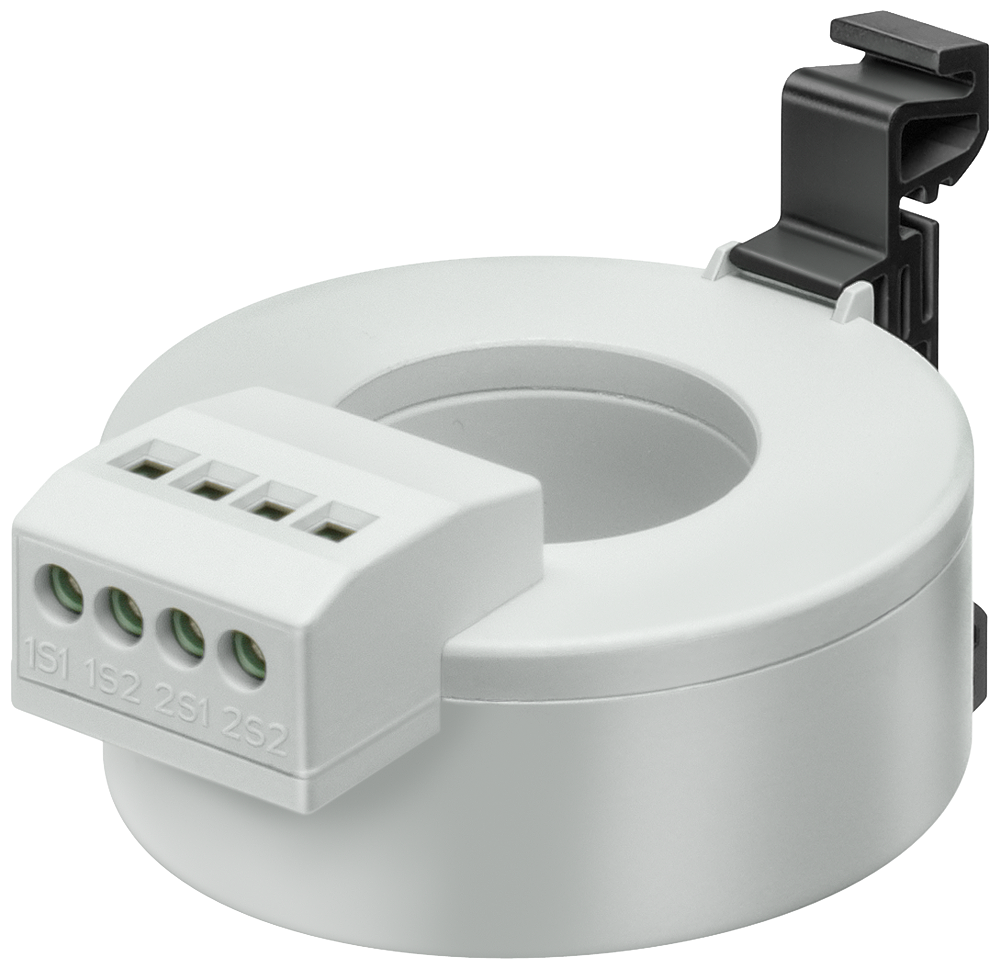

Siemens SUMMATION CURRENT TRANSFORMER 30mm, for use sammens with earth fault monitoring relay 1632163, 64 and 65
Pricing
Request a quote
We reply within 24 hours
Product Description
SUMMATION CURRENT TRANSFORMER 30MM, for use sammens with earth fault monitoring relay 1632163, 64 and 65.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV8701-0KK
- EAN / GTIN
- 4001869397658
- Sales unit
- pcs
- Operating voltage AC 50 Hz
- 720 V
- Operating voltage AC 60 Hz
- 720 V
- Supply voltage AC 50 Hz
- 720 V
- Supply voltage AC 60 Hz
- 720 V
- Rated operating frequency
- 50–60 Hz
- Voltage measuring range
- 720 V
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 720 V
- Rated control supply voltage AC 60 Hz
- 720 V
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For three-phase supply system
- Rated voltage
- 720 V
- Width
- 59 mm
- Height
- 32 mm
- Depth
- 70 mm
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 4001869397658
- SAP 1000098967
- Code 8903554
Product Documentation
