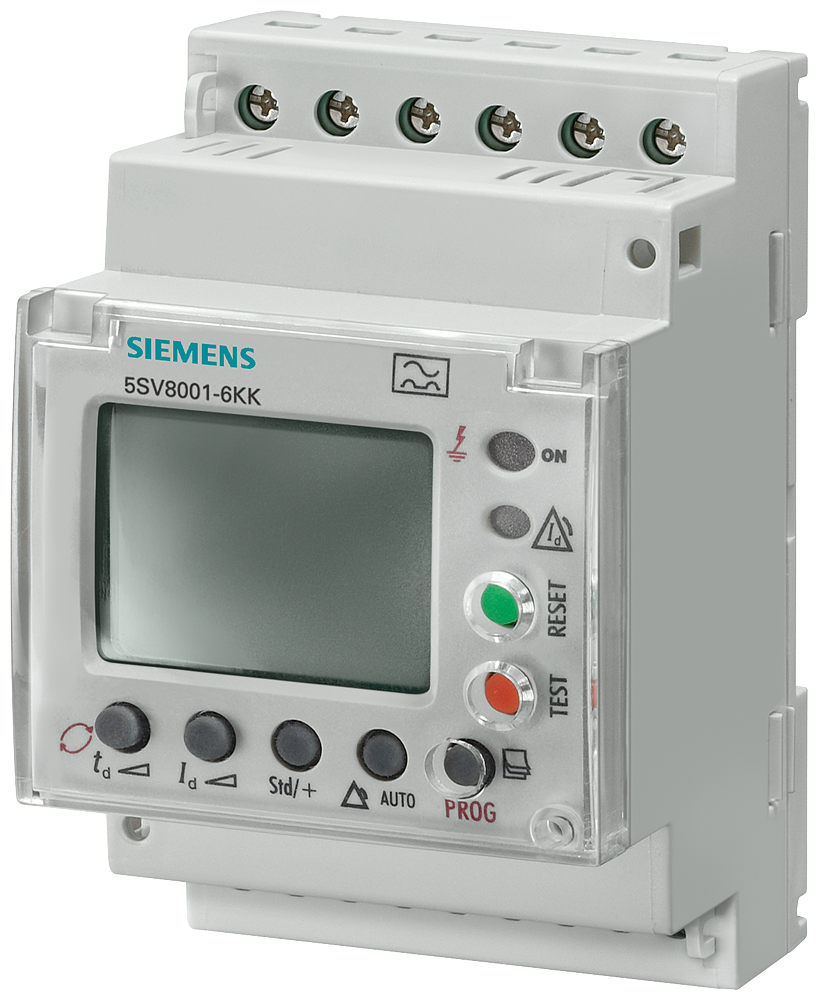

Siemens Earth-fault monitoring digital 4-Channels
Pricing
Request a quote
We reply within 24 hours
Product Description
Earth fault monitoring digital 4-channels.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV8200-6KK
- EAN / GTIN
- 4001869397634
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Rated operating frequency
- 50–60 Hz
- Voltage measuring range
- 184–276 V
- Voltage type (supply voltage)
- AC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 184–276 V
- Rated control supply voltage AC 60 Hz
- 184–276 V
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For AC-current system
- Rated voltage
- 184–276 V
- Rated frequency
- 50–60 Hz
- Response value amperage 1
- 30–30000 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 10 s
- Number of contacts as normally open contact
- 4
- Width
- 54 mm
- Height
- 85 mm
- Depth
- 68 mm
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9030.39
Cross References
- EAN 4001869397634
- SAP 1000098965
- Code 8593152
Product Documentation
More from Siemens
Siemens
Siemens 3RS70002DE00 Signal Converter 24 V AC/DC 3-Way Isolation 0-10 V to 4-20 mA
Siemens
Siemens accessories for Isolating switch with fuses
3NJ6933-1BA00
Siemens
Siemens SIVACON S4 Separation main busbar, mounting position: top front or rear, W: 800 mm
8PQ3000-0BA57
Siemens
Siemens Thermal Overload Relay 0.18-0.25 A 3RU2116-0CB0
Siemens
Siemens Alpha 400/630 Din, Partition Vertical,H=1350
8GK9102-8KK01
Siemens
Siemens Alpha 630 Din, mounting Rail, Width = 1000 mm
8GK9910-1KK40
Siemens
Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 6 control points, without equipment, Recess for labels, floor mounting, 1XM25 each on top and bottom
3SU1856-0AA00-0AB1
Siemens
Siemens SIRIUS ACT Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat momentary contact type
3SU1050-0AB40-0AA0
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SV8200-6KK?
- 5SV8200-6KK can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SV8200-6KK.
- What is the HS code for 5SV8200-6KK?
- The customs tariff (HS) code for 5SV8200-6KK is 9030.39.
- Who manufactures 5SV8200-6KK?
- 5SV8200-6KK is a Siemens product in the Control & Automation range.
- Is a datasheet available for 5SV8200-6KK?
- Yes — the 5SV8200-6KK datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SV8200-6KK?
- The minimum order quantity is 1.
- Is 5SV8200-6KK available?
- Yes — 5SV8200-6KK is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
