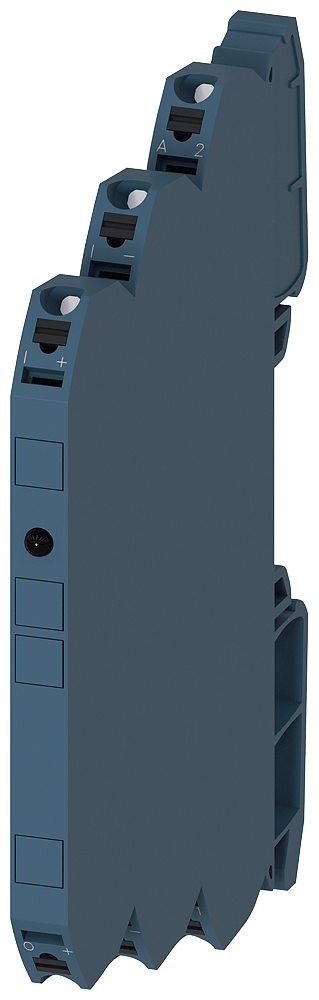

Siemens 3RS70002DE00 Signal Converter 24 V AC/DC 3-Way Isolation 0-10 V to 4-20 mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RS70002DE00 is a signal converter with 24 V AC/DC supply and 3-way isolation between input, output and supply. It accepts a 0-10 V analogue input and delivers a 4-20 mA current-loop output for connection between field devices and PLC systems. Spring-clamp built-in device for DIN-rail mounting, IP20 rated.
Technical Specifications
- Manufacturer part number (MPN)
- 3RS70002DE00
- EAN / GTIN
- 4047621001197
- Sales unit
- pcs
- Voltage
- 24 V
- Number of input ranges 0 V ... 10 V
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- SIL according to IEC 61508
- None
- Height
- 93 mm
- Width
- 6.2 mm
- Depth
- 72.5 mm
- Power consumption
- 0.29 W
- Load
- 500 Ohm
- Load influence
- 0 %
- Temperature drift
- 0.015 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Spring clamp connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047621001197
- SAP 1000790520
- Code 81402330
Product Documentation
