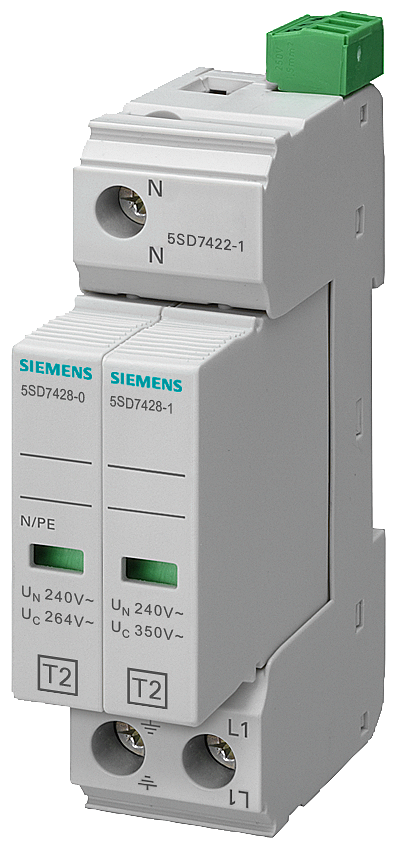

Siemens 5SD74221
Pricing
Request a quote
We reply within 24 hours
Overview
Siemens 5SD74221 is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; System configuration DC: No; System configuration IT: No; System configuration TN: No; System configuration TN-C: No; System configuration TT: No.
Technical Specifications
- Manufacturer part number (MPN)
- 5SD74221
- EAN / GTIN
- 4001869340302
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 40 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level L-N
- 1.4 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 63 A
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4001869340302
- SAP 1000034167
- Code 8511708
Product Documentation
More from Siemens
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 1, H: 1250 mm, W: 1300 mm, D: 210 mm, RAL 9016
8GK1123-6KA52
Siemens
Siemens Direct Online Starter (DOL), 1-4 A, 45 mm Wide, Spring Clamp Connection (3RA6120-2CB34)
Siemens
Siemens Coil for size 3RT1966-5AS31
Siemens

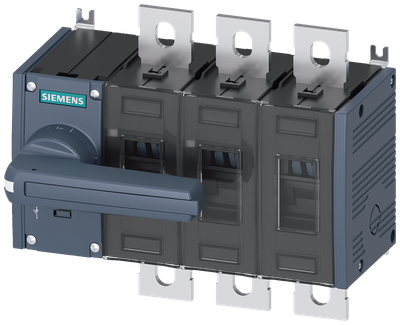

Siemens SENTRON 3KD Switch-Disconnector 3KD3832-0PE10-0, 250 A, 3-Pole, Front Operated Left, without Rotary Handle
Siemens

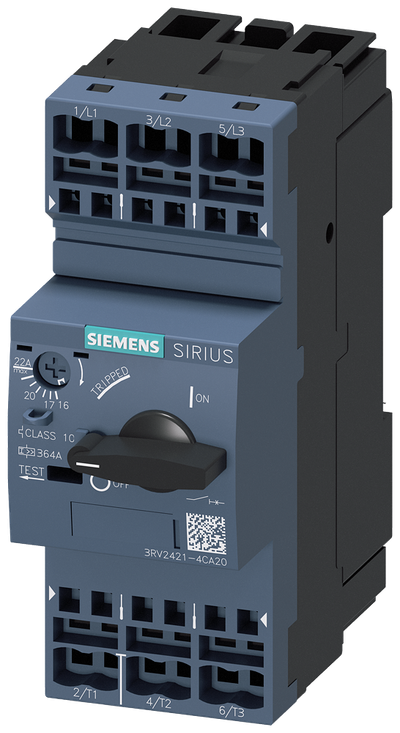

Siemens Circuit breaker for transformer 17-22A S0 Spring terminals
