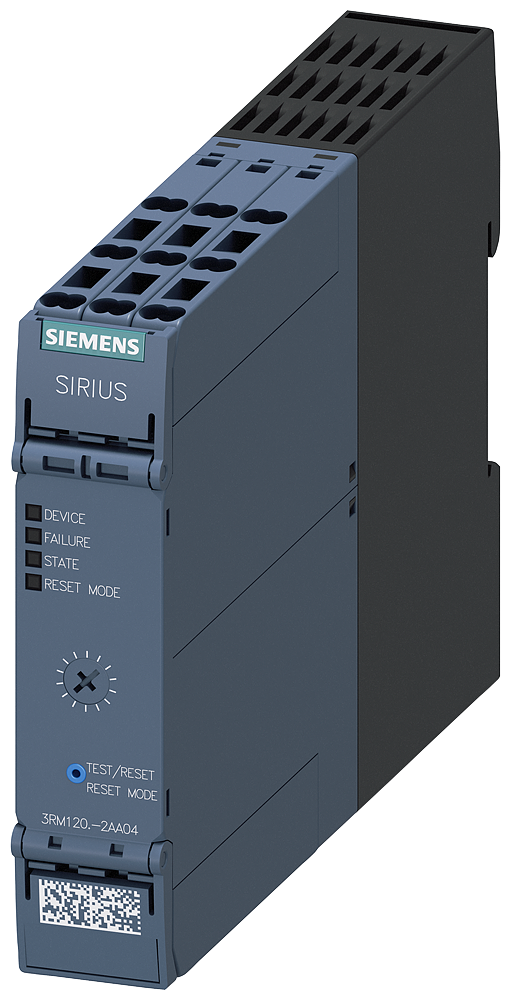

Siemens SIRIUS 3RM1 Reversing Starter, 0,4-2,0A, 0.75 kW / 400 V, 24V, Spring Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RM1202-2AA04 Reversing switch 0,4-2,0A, 24V spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RM1202-2AA04
- EAN / GTIN
- 4011209914780
- Sales unit
- pcs
- Voltage
- 24 V
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 141.5 mm
- Rated operation power at AC-3, 400 V
- 0.75 kW
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 2 A
- Number of indicator lights
- 4
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- DC
- Rated operation power at AC-3, 230 V, 3-phase
- 0.37 kW
- Rated power, 460 V, 60 Hz, 3-phase
- 0.75 kW
- Rated operation current at AC-3, 400 V
- 2 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209914780
- SAP 1000333469
- Code 8363344
Product Documentation
More from Siemens
Siemens

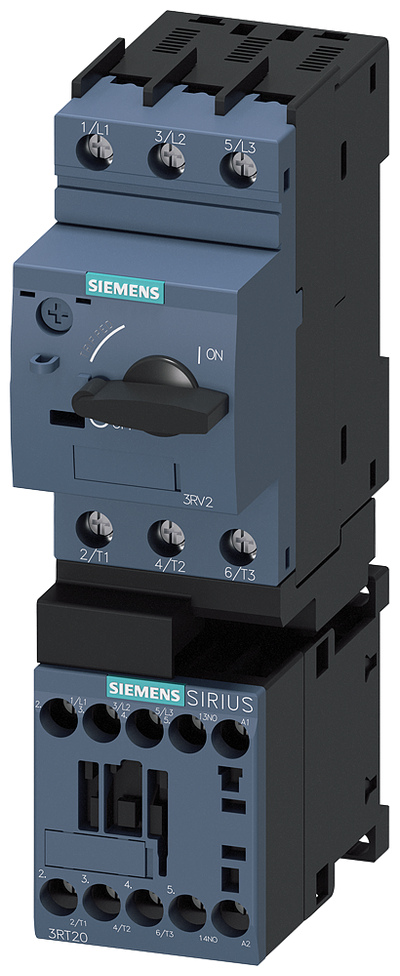

Siemens SIRIUS Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 1.80...2.50 A 230 V AC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
