Siemens Residual current circuit breaker with overcurrent TN 6KA,18mm,30MA B20, el, adjusted I2 for residential use
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV9316-6FM20 Residual current circuit breaker with overcurrent TN 6kA,18mm,30mA B20, el, adjusted I2 for residential use.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV9316-6FM20
- EAN / GTIN
- 4001869573465
- HS code
- 8536.90
- Sales unit
- pcs
- Breaking capacity
- 6 kA
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 250 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 20 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- B
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 1
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869573465
- SAP 1200416105
- Code 82450127
Product Documentation
More from Siemens
Siemens
Siemens Electrical Products SIRIUS Simocode pro V Y-connection
3UF7932-0CA00-0
Siemens
Siemens SIRIUS AS-Interface module 3RK1908-0AP00-0FP0
Siemens
Siemens Mechanical accessorysdeler 8PQ9600-0BA01
Siemens
Siemens SIRIUS ACT with PROFINET: standard interface module 24 V DC, screw terminal, front plate mounting 1 to 20 terminal modules connectable
3SU1400-1LK10-1AA1
Siemens

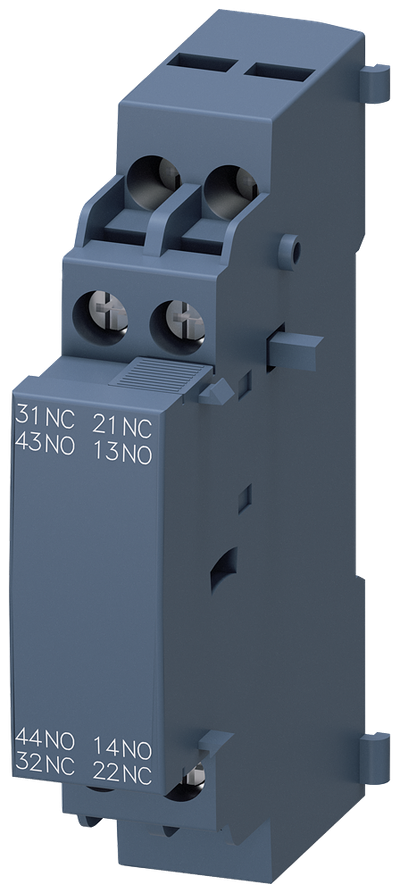

Siemens Auxiliary cover side-mounted 2NO+2NC with spring terminals
3RV2901-1J
Siemens

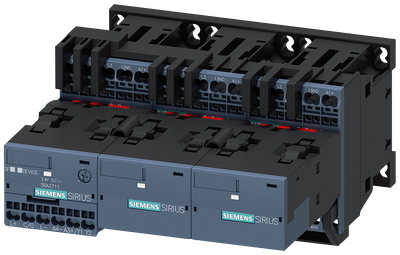

Siemens SIRIUS Contactor assembly for star-delta (wye-delta) start, I/O-Link AC-3, 7.5 kW/400 V, 24 V DC 3-Pole, Size S00 Spring-type terminals electrical and mechanical interlock 3 NO integrated
