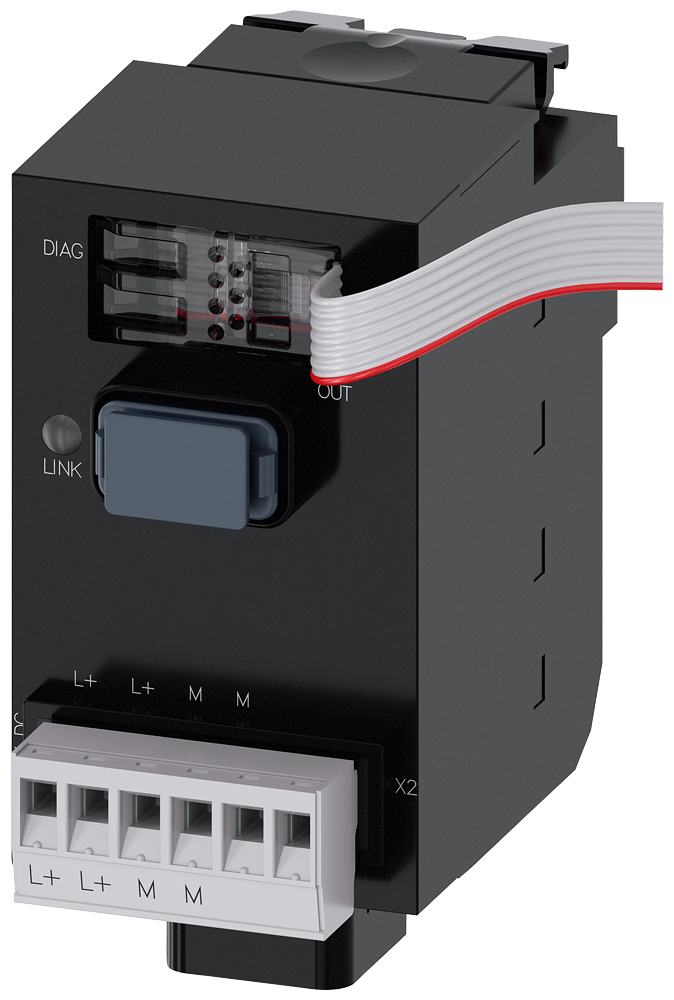

Siemens SIRIUS ACT with PROFINET: standard interface module 24 V DC, screw terminal, front plate mounting 1 to 20 terminal modules connectable

Siemens 3SU1400-1LK10-1AA1 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT with PROFINET: Standard Interface module 24 VDC, screw terminals, front mounting, up to 1-20 terminal modules.

Manufacturer part number (MPN)

3SU1400-1LK10-1AA1

EAN / GTIN

4047621016917

Sales unit

pcs

Product type designation

3SU1

Display version — for diagnostic function

Supply voltage monitoring power LED: Yes

Display version — status Tx/Rx link

Yes

Product function — reverse polarity protection

Yes

Product function — I&M data

Yes; I&M0 ... I&M3

Firmware version

2.1.4

Hardware version

1

Software version with STEP 7 in the TIA Portal required

Integrated in TIA Portal Version 14 SP1 or higher (HSP for V13 and V14)

Number of units per rack maximum

20

Number of submodules per station maximum

24

Power loss [W] typical

0.67 W

Insulation voltage rated value

30 V

Degree of pollution

3

Type of voltage — of the operating voltage

DC

Type of voltage — of the input voltage

DC

Surge voltage resistance rated value

0.8 kV

Consumed current — maximum

100 mA

Consumed current — rated value

28 mA

Protection class IP

IP20, clamping screw tightened

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Supply voltage at DC rated value

24 V

Protocol is supported — PROFINET IO protocol

Yes

Protocol is supported — PROFIsafe protocol

No

Product function at the Ethernet interface — Autocrossover

Yes

Product function at the Ethernet interface — Autonegotiation

Yes

Protocol at the 1st interface media redundancy protocol

No

Product function at the 1st interface PROFINET IO device

Yes

GSD version/revision with PROFINET required

V2.34

Transmission mode for Industrial Ethernet

PROFINET with 100 Mbps full duplex (100BASE-TX)

Inrush current maximum

16 A

Galvanic isolation between PROFINET and all other circuits

Yes

Number of digital inputs

0

Number of digital inputs — safety-related

0

Number of digital outputs

0

Type of electrical connection

screw terminal

Connectable conductor cross-section for auxiliary contacts — solid or stranded

0.2 ... 2.5 mm²

Connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing maximum

2.5 mm²

Connectable conductor cross-section — solid

0.2 ... 2.5 mm²

Connectable conductor cross-section — solid with core end processing

0.2 ... 2.5 mm²

Connectable conductor cross-section — finely stranded with core end processing

0.25 ... 2.5 mm²

Connectable conductor cross-section — finely stranded without core end processing

0.2 ... 2.5 mm²

AWG number as coded connectable conductor cross section

30 ... 12

Tightening torque with screw-type terminals

0.5 ... 0.6 N·m

Service life maximum

20 a

Design of the interface — Ethernet interface

Yes; for Ethernet services

Design of the interface — Fast Ethernet interface

Yes; PROFINET with 100 Mbps

Interface design 1 — integrated switch

No

Interface design 1 — RJ45 (Ethernet)

Yes

Number of ports at the 1st interface

1

Number of interfaces according to PROFINET

1

Ambient temperature — during operation

-25 ... +60 °C

Ambient temperature — during storage

-40 ... +80 °C

Explosion protection marking for intrinsic safety of related equipment EEx ia

No

Explosion protection marking for intrinsic safety of related equipment EEx ib

No

Installation/ mounting/ dimensions — height

80 mm

Installation/ mounting/ dimensions — width

40 mm

Installation/ mounting/ dimensions — depth

72 mm

Country of origin

Germany

HS Code

8537.10
