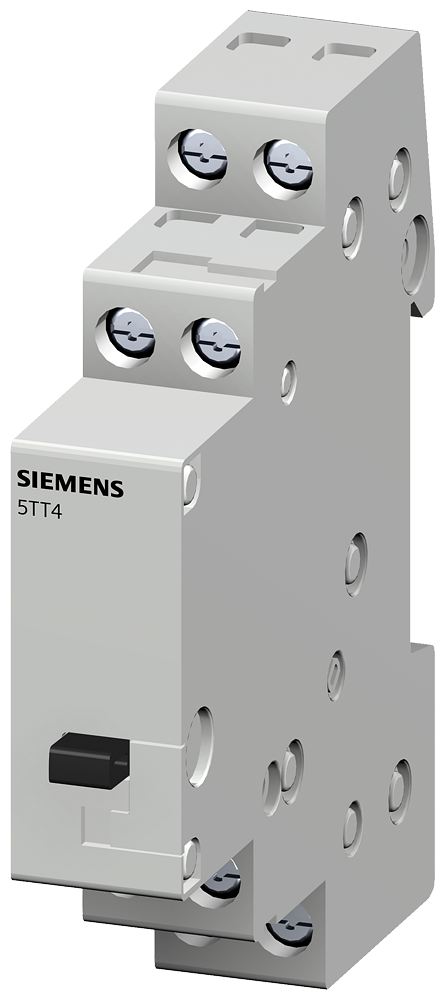

Siemens 5TT4105-2 Impulse Relay 1 NO + 1 NC 230/400V 16A 24V AC Coil

Siemens 5TT4105-2 is a 16 A DIN-rail impulse relay with one normally-open and one normally-closed contact, rated for AC 230/400 V loads. Coil voltage is 24 V AC/DC; the mechanical switch is one module wide with 70 mm built-in depth. It supports up to 2000 W incandescent load or 500 VA fluorescent load and is suitable for manual operation. Country of origin Germany.

Manufacturer part number (MPN)

5TT4105-2

EAN / GTIN

4001869312521

Sales unit

pcs

Voltage

400 V

Rated current

16 A

Contact configuration

1 NO + 1 NC

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

70 mm

Width in number of modular spacings

1

Type of control voltage 1

AC

Type of control voltage 2

AC/DC

Suitable for manual operation

Yes

Voltage type (supply voltage)

AC

Max. switching current (cos phi = 0.6)

16 A

Max. incandescent lamp load

2000 W

Max. load fluorescent lamp

500 VA

Rated switch current

16 A

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50

• EAN 4001869312521
• SAP 1000084034
• Code 8864383
