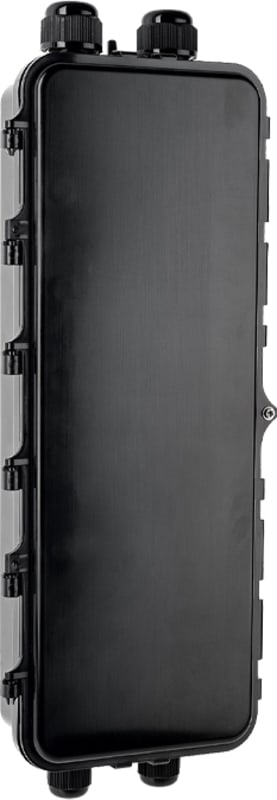

IP65 BOX Black WITH Driver 24V 90W Faseav
Part number820444EAN / GTIN7021988204443HS code8504.31
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820444 IP65 BOX BLACK WITH DRIVER 24V 90W PHASE-CUT.
Technical Specifications
- Manufacturer part number (MPN)
- 820444
- EAN / GTIN
- 7021988204443
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V
- IP rating
- IP65
- Power
- 90 W
- Wattage
- 90W
- System wattage
- 90W
- Type
- Trailing edge
- Length (mm) L
- 346
- Width (mm) W
- 127
- Height (mm) H
- 53
- Weight (kg) gross/net
- 1.076 / 0.944
- Packaging dimensions (mm)
- 355 x 140 x 65
- Operation by Bluetooth
- No
- Power consumption
- 90 W
- Compatible with Casambi
- No
- Model
- Static
- Suitable for outdoor use
- Yes
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- Yes
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- Constant light output (CLO)
- No
- No dim function
- No
- Housing
- Plastic housing
- Suitable for constant current
- Yes
- Suitable for constant voltage
- Yes
- Output voltage
- 0–24 V
- Suitable for DC-voltage (primary side)
- No
- Output power
- 60–90 W
- Degree of protection (IP)
- IP65
- Protection class according to IEC 61140
- II
- Length
- 350 mm
- Width
- 130 mm
- Height
- 53 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Dimming DALI-2
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7021988204443
- SAP 1200743756
- Code 83882347
Product Documentation
Document preview: IP65 BOX Black WITH Driver 24V 90W Faseav (820444) — Specification sheet
More from SG Armaturen
SG Armaturen
Arena ECO 1500 76W/840 WIDE
607012
SG Armaturen
Sense Surface 600X600 28W/830
212330
SG Armaturen
SG Armaturen ZIP 230V Ceiling Box Connection, White
003052
SG Armaturen
RAX ECO 200 1500/2200LM 3000/4000K
212569
SG Armaturen
Emergency light box 3 hours
8246094364
SG Armaturen
Arena ECO 1200 46W/840 WIDE
607008
SG Armaturen
SG Armaturen ZIP 230V Moveable Connector, Black
003161
SG Armaturen
ZIP Adapter Pendant White
003046
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 820444?
- 820444 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 820444.
- What is the HS code for 820444?
- The customs tariff (HS) code for 820444 is 8504.31.
- Who manufactures 820444?
- 820444 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 820444?
- Yes — the 820444 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 820444?
- The minimum order quantity is 1.
- Is 820444 available?
- Yes — 820444 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
