SG Armaturen

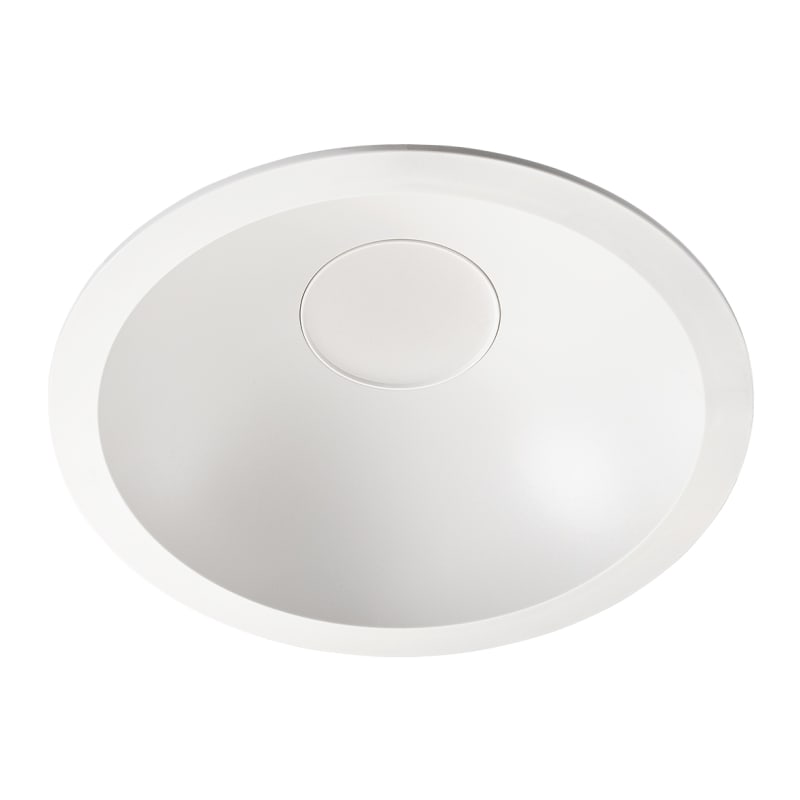

RAX ECO 200 1500/2200LM 3000/4000K
Part number212569EAN / GTIN7021982125690HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212569 RAX ECO 200 1500/2200lm 3000/4000K 13W/24W, SDCM 3, CLASS II, IP20, L80/B20.
Technical Specifications
- Manufacturer part number (MPN)
- 212569
- EAN / GTIN
- 7021982125690
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Luminous flux
- 2200 lm
- Efficacy
- 108/115/96/103lm/W
- Lumen
- 1400lm/1490lm/2310lm/2460lm
- Wattage
- 13W/24W
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Indoor
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 23, B16: 36, C10: 37, C16: 60
- Type of light source
- LED
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 95°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0.04
- Stroboscopic flicker (SVM)
- 0
- Photobiological safety
- RG 1
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Polycarbonat (PC)
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Ceiling void depth (mm)
- 93
- Weight (kg) gross/net
- 1.03 / 0.87
- Packaging dimensions (mm)
- 240 x 222 x 120
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125690
- SAP 1200566429
- Code 82925793
Product Documentation
Document preview: RAX ECO 200 1500/2200LM 3000/4000K (212569) — Specification sheet
