SG Armaturen

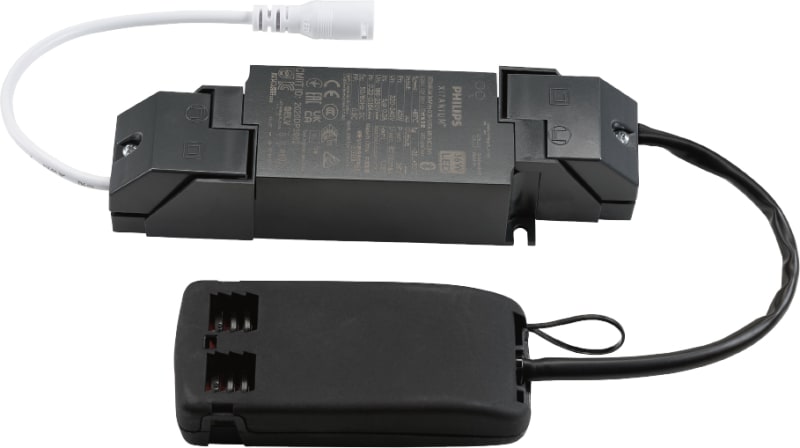

Connect Driver KIT Wireless 900MA
Part number820515EAN / GTIN7021988205150HS code8504.31
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820515 CONNECT DRIVER KIT SLAVE 900 MA.
Technical Specifications
- Manufacturer part number (MPN)
- 820515
- EAN / GTIN
- 7021988205150
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Wattage
- 35W
- IP Class
- IP20
- Lifetime
- 100,000
- Mounting
- Recessed, Indoor
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 22, B16: 35, C10: 36, C16: 60
- Type
- Connect Wireless
- Driver
- 900mA
- Luminaire class
- Class II
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Plastic
- Connection
- 3 pol Linect / screwless terminal block
- Length (mm) L
- 157
- Width (mm) W
- 45
- Height (mm) H
- 30
- Weight (kg) gross/net
- 0.24 / 0.191
- Packaging dimensions (mm)
- 310 x 100 x 36
- Operation by Bluetooth
- Yes
- Power consumption
- 0.5 W
- Device emplacement
- Indoor positioning
- Compatible with Casambi
- No
- Material
- Polycarbonate (PC)
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- Yes
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- Yes
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- Yes
- Dimming with push-button
- No
- Constant light output (CLO)
- No
- No dim function
- No
- Suitable for constant current
- Yes
- Suitable for constant voltage
- No
- Output voltage
- 24–48 V
- Output current
- 900 mA
- Suitable for DC-voltage (primary side)
- No
- Output power
- 6–36 W
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Length
- 157 mm
- Width
- 45 mm
- Height
- 30 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Short-circuit protected
- Yes
- Input voltage
- 220–240 V
- Frequency input voltage
- 50–60 Hz
- Overload protection
- Yes
- Overtemperature protection
- Yes
- PWM modulation
- No
- Dimming DALI-2
- No
- Dimming D4i
- Yes
- Emergency power supply system
- None
- Mains surge immunity (differential mode, L-N)
- 1 kV
- Driver lifetime
- 100000 h
- Independently operating
- Yes
- Efficiency
- 88 %
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7021988205150
- SAP 1200722972
- Code 83857155
Product Documentation
Document preview: Connect Driver KIT Wireless 900MA (820515) — Specification sheet
