SG Armaturen

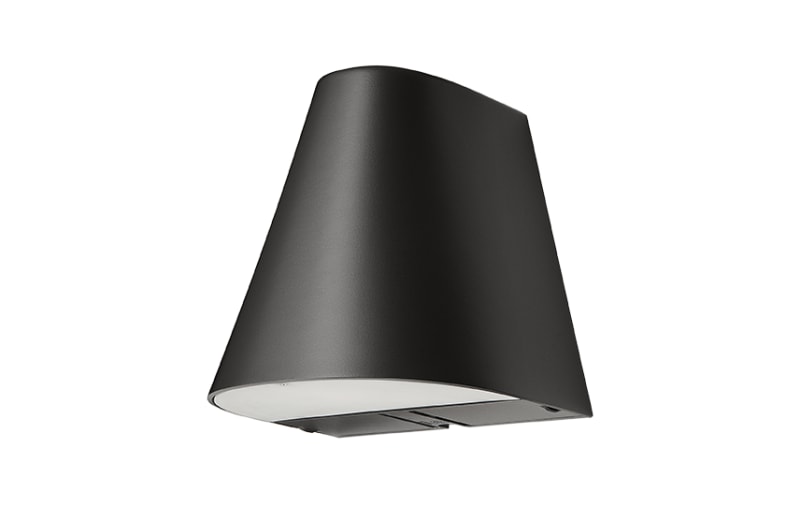

Spike Black 11W/830 Twilight
Part number614920EAN / GTIN7021986149203HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 614920 L70/B50>50 000 hours, 840lm, 77 lm/W, SDCM3, IP44, IK08, KL In, non-dimmable, BREEAM.
Technical Specifications
- Manufacturer part number (MPN)
- 614920
- EAN / GTIN
- 7021986149203
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 11 W
- Efficacy
- 109 lm/W
- Lumen
- 870lm
- IP Class
- IP44
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 870lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 95°
- ULOR (<1%)
- Yes
- Type
- Twilight
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Width (mm) W
- 171
- Height (mm) H
- 173
- Depth (D)
- 155
- Weight (kg) gross/net
- 1.44 / 1.265
- Packaging dimensions (mm)
- 180 x 165 x 185
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986149203
- SAP 1200163201
- Code 82082641
Product Documentation
Document preview: Spike Black 11W/830 Twilight (614920) — Specification sheet
