SG Armaturen
SOLO Graphite 1100 10W/840
Part number643552EAN / GTIN7021986435528HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

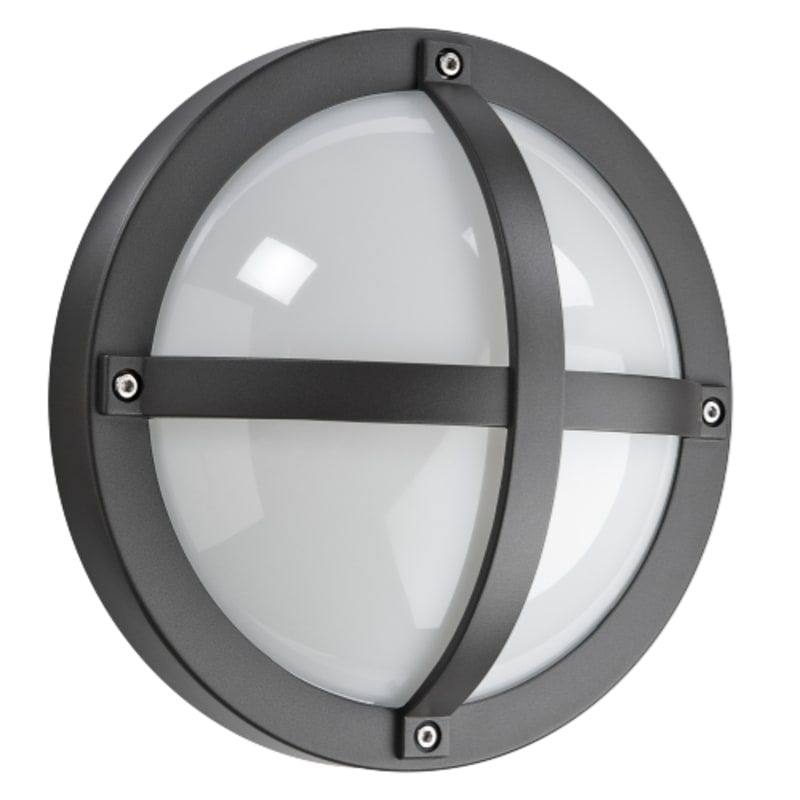

SG Armaturen 643552 SOLO graphite 1100 LED 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 643552
- EAN / GTIN
- 7021986435528
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 10 W
- Efficacy
- 76 lm/W
- Lumen
- 610lm
- IP Class
- IP65
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 610lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Module
- 1100
- Connection
- Screwless terminal block
- Diameter (mm) D
- 270
- Depth (D)
- 130
- Weight (kg) gross/net
- 1.716 / 1.687
- Packaging dimensions (mm)
- 270 x 270 x 142
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986435528
- SAP 1200369614
- Code 82376256
Product Documentation
Document preview: SOLO Graphite 1100 10W/840 (643552) — Specification sheet
More from SG Armaturen
SG Armaturen
Hurdal 600 12W/840 DALI
113115
SG Armaturen
E MIDI 2000 White 830 Sensor DIM Wireless
143084
SG Armaturen
Exclusive MIDI White 26W/930 DALI
902627
SG Armaturen
Fenes MAXI Lens 2 43W/740 6830LM DALI
212790
SG Armaturen
ECHO Graphite GU10 1X4,5W/840 IP54
633690
SG Armaturen

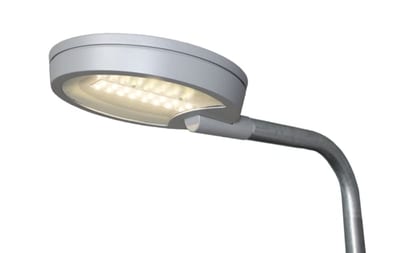

Circled M LENS 90W /740 9020LM
8246094157
SG Armaturen

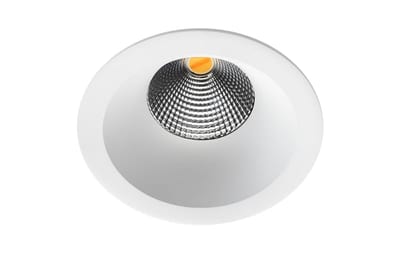

SOFT White 6W D2W DALI
903231
SG Armaturen

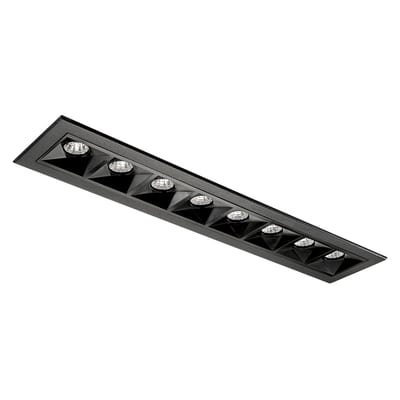

Inspire R 300 Black 27-65K 17W/TW Jointim
