SG Armaturen

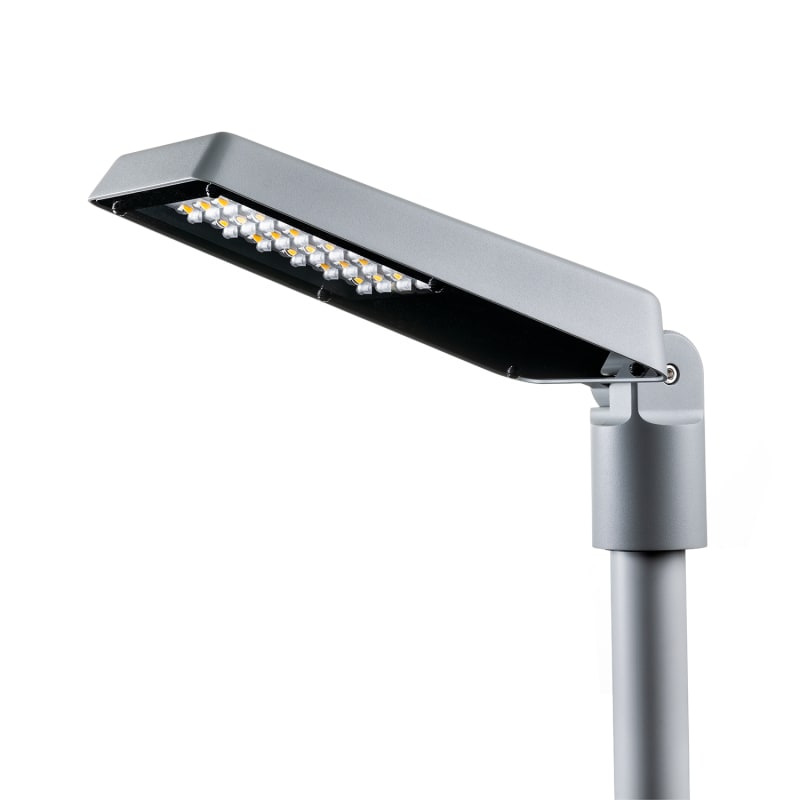

Fenes MAXI Lens 2 43W/740 6830LM DALI
Part number212790EAN / GTIN7021982127908HS code9405.11
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212790 FENES MAXI LENS 2 4000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 212790
- EAN / GTIN
- 7021982127908
- Sales unit
- pcs
- Power
- 43 W
- Luminous flux
- 6830 lm
- Efficacy
- 159 lm/W
- Lumen
- 6830lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 100,000 L80/B20>
- Mounting
- Pole - Side Top (Ø42-48/Ø60), Outdoor
- Function
- Application: small roads (<5m wide), parking lots, parks etc.
- System wattage
- 43W
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 6, B16: 10, C10: 10, C16: 16
- Type of light source
- LED
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- PMMA, Polymethylmethacrylat
- ULOR (<1%)
- Yes, up to 25° tilt angle
- Type
- DALI-2
- Luminaire class
- Class II
- IK Class
- IK08
- Surge protection
- 6/10 kV
- Housing
- Aluminium
- Colour
- Grey RAL 7042
- Optics
- Tempered glass
- Module
- Lens 2
- Cable
- Cable 4x1.0mm² 8m, H05RN-F
- Length (mm) L
- 432
- Width (mm) W
- 188
- Height (mm) H
- 145
- Weight (kg) gross/net
- 5.112 / 4.478
- Packaging dimensions (mm)
- 530 x 190 x 105
- Protection class according to IEC 61140
- II
- Width
- 188 mm
- Conductor cross section
- 1 mm²
- Housing colour
- Grey
- Dimmable
- Yes
- Surface protection
- Powder coating
- With movement sensor
- No
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 70-79
- Cable length
- 8 m
- With light sensor
- No
- Length
- 432 mm
- Height/depth
- 145 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- With presence detector
- No
- Material cover
- Glass opal
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Built-in battery
- No
- Max. system power
- 43 W
- Colour of light
- White
- Remote control
- None
- Type of wiring
- Ending
- Colour consistency (McAdam ellipse)
- SDCM3
- Luminaire efficacy
- 159 lm/W
- Operation by Bluetooth
- No
- Dimming DALI-2
- Yes
- Dimming D4i
- No
- Solar powered
- No
- With integrated PV panel
- No
- Suitable for off-grid power system
- No
- Rated luminous flux according to IEC 62722-2- 1
- 6830 lm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982127908
- SAP 1200847611
- Code 84069088
Product Documentation
Document preview: Fenes MAXI Lens 2 43W/740 6830LM DALI (212790) — Specification sheet
