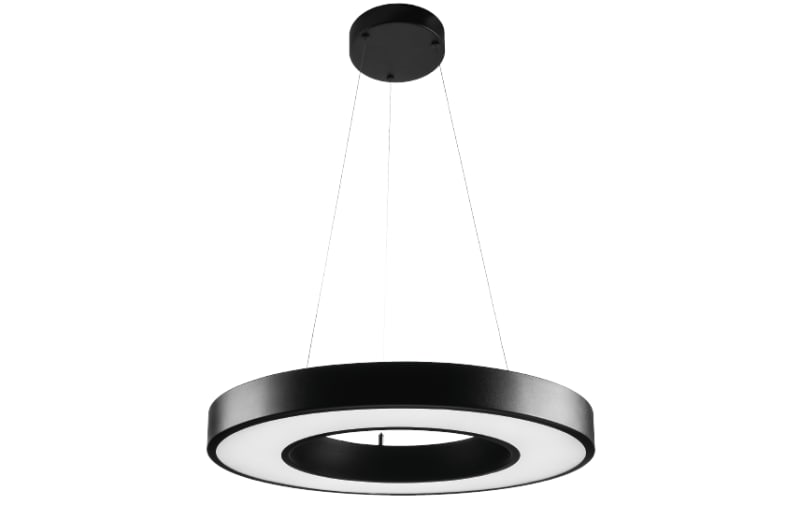

Circulus MAXI Pendant Black 30W/840 DALI

SG Armaturen 214028 CIRCULUS MAXI PENDANT BLACK 4000K DALI 26W, RA>80, Class In, IP20, L80/B20, SDCM 3, A++.

Manufacturer part number (MPN)

214028

EAN / GTIN

7021982140280

Sales unit

pcs

Package quantity

2 pcs

Power

30 W

Efficacy

105 lm/W

Lumen

3150lm

IP Class

IP20

Colour temperature

4000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L70/B10>

Mounting

Suspended, Indoor

System wattage

30W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 31, B16: 50, C10: 52, C16: 85

Type of light source

LED

Luminous flux

3150lm

Programmable with CLO

Yes (affects lumen output)

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Opal

Beam angle

100°

UGR

UGR<25

Type

DALI-2 / Push Dim

Luminaire class

Class I

Contains light source of energy class

D

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Steel

Colour

Black (RAL 9004)

Optics

Acrylic (PMMA)

Connection

Screwless terminal block

Length (mm) L

550

Width (mm) W

550

Height (mm) H

55

Weight (kg) gross/net

6.5 / 5.519

Packaging dimensions (mm)

580 x 570 x 83

Operation by Bluetooth

No

Device emplacement

Indoor positioning

Compatible with Casambi

No

With movement sensor

No

Nominal operation time

8–12

RAL-number

9005

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

Black

Material cover

Glass opal

Type of grid

Matt

Voltage type

AC

Nominal voltage

220–240 V

Type of control gear

Not required

With control gear

No

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

Yes

Dimming DALI-2

Yes

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Light distributor

Refractor lens

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Direct-/indirect proportion separately controllable

No

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Suitable for lamp power

30 W

Max. system power

30 W

Rated luminous flux according to IEC 62722-2-1

3150 lm

Colour of light

White

Luminaire efficacy

105 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

22.9

Power factor

0.9

Constant light output (CLO)

Yes

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

550 mm

Height/depth

55 mm

Length

550 mm

Diameter

550 mm

With suspension

Yes

Pendant length

2000 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

2

Conductor cross section

1 mm²

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021982140280
• SAP 1200380749
• Code 82400016
