SG Armaturen

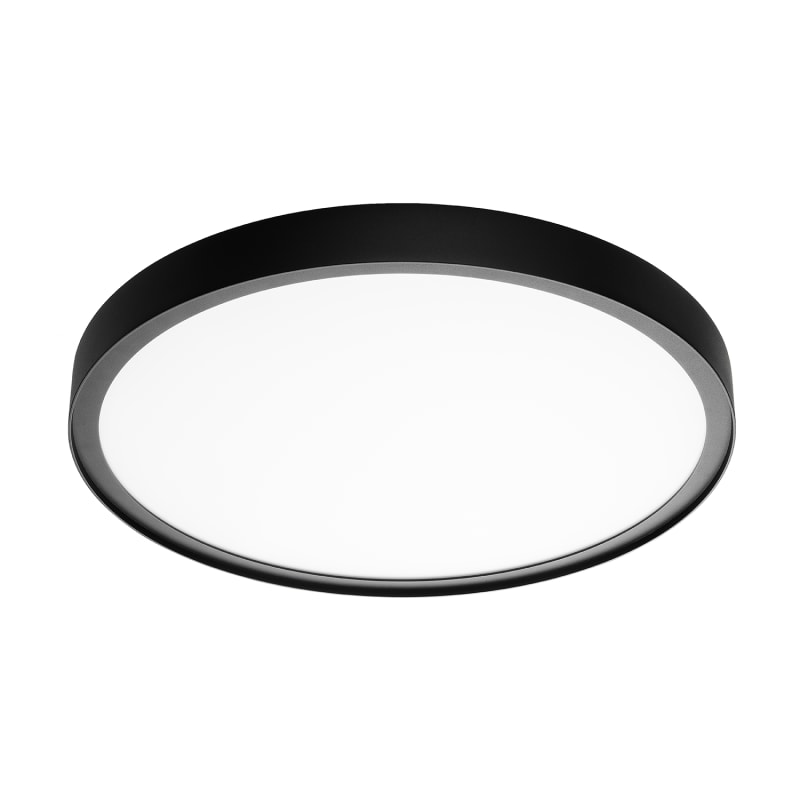

DISC 480 D/In Black 34W 3K74K Sensor DIM
Part number606209EAN / GTIN7021986062090HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606209 DISC 480 D/In BLACK 3000/4000K SENSOR DIM, 34, 4270lm, Ra>80, SDCM 3, L80/B20>100.000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606209
- EAN / GTIN
- 7021986062090
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 34 W
- Efficacy
- 118 lm/W
- Lumen
- 4000/4270lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 34W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 4000/4270lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,07
- Stroboscopic flicker (SVM)
- 0,05
- Type
- Sensor Dim
- Sensor type
- Pure motion sensor, independent of lux level
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D/D/C/C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium/plastic
- Colour
- Black
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 62
- Diameter (mm) D
- 467
- Weight (kg) gross/net
- 3.6 / 3.188
- Packaging dimensions (mm)
- 490 x 485 x 70
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986062090
- SAP 1200880689
- Code 84120003
Product Documentation
Document preview: DISC 480 D/In Black 34W 3K74K Sensor DIM (606209) — Specification sheet
