SG Armaturen
RAX SOFT 200 Satin TW Jointim 2700-6500K
Part number212576EAN / GTIN7021982125768HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212576 RAX SOFT 200 SATIN TW LEDDIM 2700-6500K 28W 2360lm, Class II SELV, IP44/IP20, IK08, SDCM 3.
Technical Specifications
- Manufacturer part number (MPN)
- 212576
- EAN / GTIN
- 7021982125768
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Colour temperature
- 6500 K
- Efficacy
- 93 lm/W
- Lumen
- 2610lm (@6500K)
- IP Class
- IP54/IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 28W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 20, B16: 32, C10: 20, C16: 32
- Type of light source
- LED
- Luminous flux
- 2610lm (@6500K)
- Emergency lumen
- 280lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- Photobiological safety
- RG 1
- Type
- TW LEDDim
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Ceiling void depth (mm)
- 90
- Weight (kg) gross/net
- 1.2 / 1
- Packaging dimensions (mm)
- 240 x 240 x 102
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125768
- SAP 1200585036
- Code 82955977
Product Documentation
Document preview: RAX SOFT 200 Satin TW Jointim 2700-6500K (212576) — Specification sheet
More from SG Armaturen
SG Armaturen
Hurdal 600 12W/830 DALI
113112
SG Armaturen
Inspire R 300 2-4K White TW DA DT8
212445
SG Armaturen
UNO White 11,5W/830 IP65 Twilight
641644
SG Armaturen
RAX SOFT 150 Satin 3000 26W/840
212512
SG Armaturen
RAX SOFT 150 Satin 2200 18W/840
212508
SG Armaturen
Frame Round White 7W/830 Sensor
605043
SG Armaturen

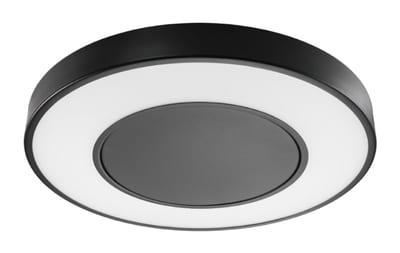

Circulus MAXI Black 30W/840 Emergency Lighting
214020
SG Armaturen

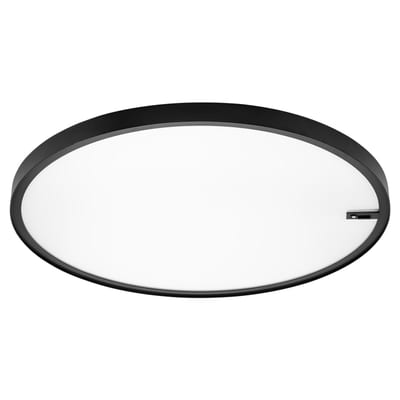

DISC 760 Connect Black 3000/4000K
