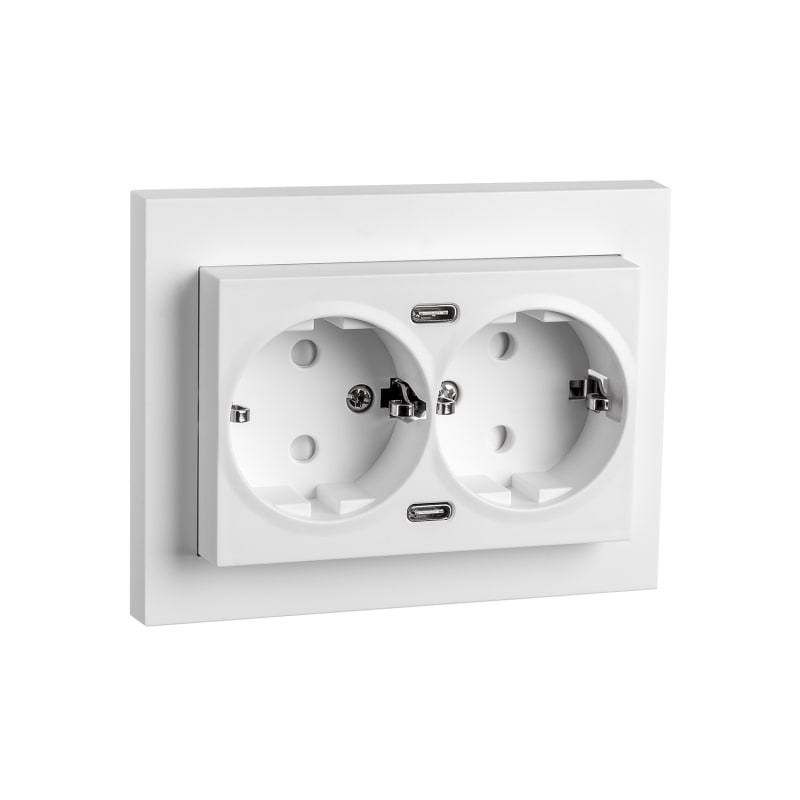

Socket IF Double Rehab WITH USB 2XC White

SG Armaturen 77114 SOCKET IF DOUBLE REHAB WITH USB 2XC WHITE.

Manufacturer part number (MPN)

77114

EAN / GTIN

7021987711416

HS code

8536.90

Sales unit

pcs

Package quantity

60 pcs

Nominal current

16 A

Nominal voltage

250 V

Mounting method

Flush-mounted

Assembly arrangement

Basic element with full cover plate

Colour

White

Model

Socket outlet with protective contact CEE 7/3 (type F)

Halogen free

Yes

Lockable

No

With hinged lid

No

Surface protection

Untreated

With signal lamp

No

Number of socket outlets

2

Number of phases

2

With enhanced contact protection

No

Frequency

50–60 Hz

With on/off switch

No

Label space/information surface

No

Eject-mechanism

No

Material quality

Thermoplastic

Rotated central insert

Yes

Overvoltage protection

Yes

Fault current protection

No

Insulated mounting

Yes

Material

Plastic

Type of fastening

Mounting with screw

Imprint/indication

None

Mounting direction

Horizontal and vertical

RAL-number (similar)

9003

Concurrently switching neutral conductor

Yes

Transparent

No

Surface finishing

Matt

With miniature fuse

Yes

With loop through function

Yes

Suitable for degree of protection (IP)

IP21

Device width

84 mm

Device height

108 mm

Device depth

56 mm

With function lighting

No

With orientation lighting

No

Number of modules (module system)

1

IFTTT support available

No

Number of active contacts (round)

2

Min. depth of built-in installation box

35 mm

With Wi-Fi signal repeater

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Metallic colour

No

Max. current rating of USB power supply

3 A

With built-in bluetooth speaker

No

Number of ports USB-C

2

Protective contact

Flat

Number of loop throughs

1

Socket outlets phase-separated

No

Anti-bacterial treatment

No

Country of origin

China

HS Code

8536.90

• EAN 7021987711416
• SAP 1201034912
• Code 84410873
