SG Armaturen

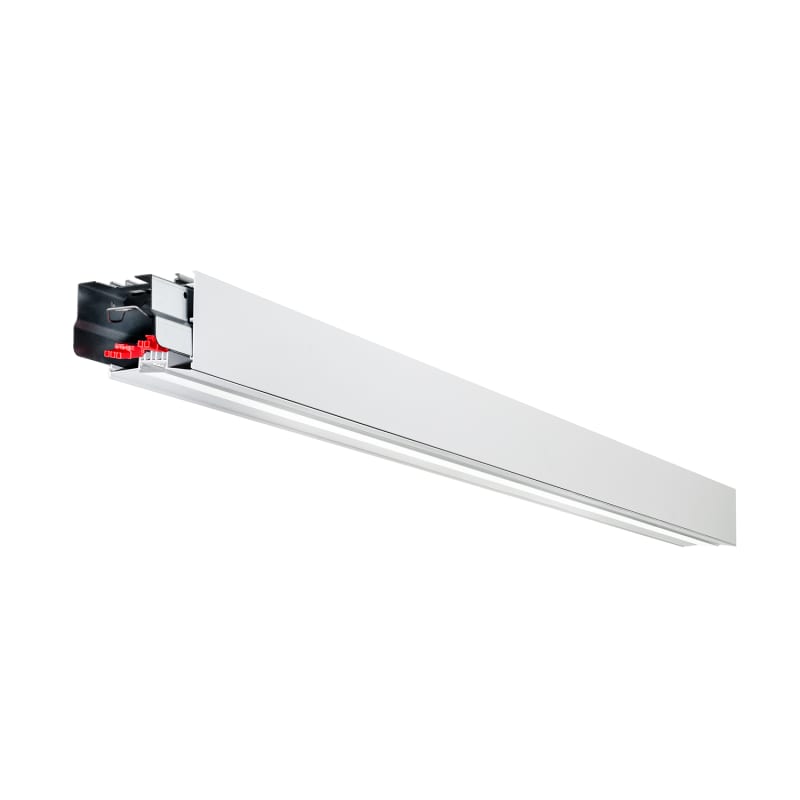

Lineal 80 1400 D/A White 3000K/4000K DALI
Part number320964EAN / GTIN7021983209641HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320964 LINEAL 80 1400 D/A WHITE 3000K/4000K DALI, 14W, 2250/2330lm, Ra>80, SDCM3, IP20, L91/B50 50.000.
Technical Specifications
- Manufacturer part number (MPN)
- 320964
- EAN / GTIN
- 7021983209641
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Colour temperature
- 3000 K
- Efficacy
- 161/166 lm/W
- Lumen
- 2250/2330lm
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L91/B50>
- Mounting
- Suspended, Indoor
- System wattage
- 14W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Leakage current (mA)
- 0,08
- Type of light source
- LED
- Luminous flux
- 2250/2330lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Optic
- Asymetric Lens
- Visible flicker (PstLM)
- 0,07
- Stroboscopic flicker (SVM)
- 0
- Photobiological safety
- RG 0
- Type
- DALI-2
- Driver
- 350mA
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Housing
- Aluminium
- Colour
- Matte white (RAL 9010)
- Optics
- Acrylic (PMMA)
- Module
- 1400
- Wire set
- 1x2m wire kit w/ceiling bracket
- Connection
- 2+3 -pole with 5x1,5mm² through wiring
- Length (mm) L
- 1400
- Width (mm) W
- 78
- Height (mm) H
- 78
- Weight (kg) gross/net
- 3.75 / 3.6
- Packaging dimensions (mm)
- 1470 x 100 x 100
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983209641
- SAP 1201006955
- Code 84361600
Product Documentation
Document preview: Lineal 80 1400 D/A White 3000K/4000K DALI (320964) — Specification sheet
