SG Armaturen

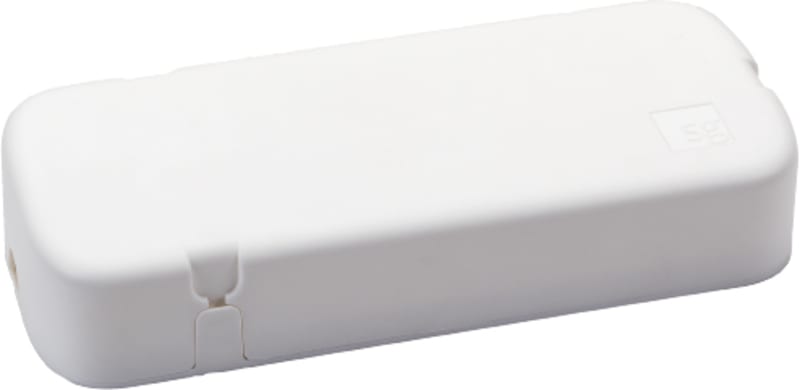

Stripline Driver 24V 36W Phase-cut
Part number820440EAN / GTIN7021988204405HS code8504.31
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820440 DRIVER 24V 36W PHASE-CUT.
Technical Specifications
- Manufacturer part number (MPN)
- 820440
- EAN / GTIN
- 7021988204405
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V
- Power
- 36 W
- Replaces
- 820253, 820074
- Wattage
- 36W
- IP Class
- IP20
- Lifetime
- 50,000
- Mounting
- Indoor
- System wattage
- 36W
- Max. luminaires per circuit breaker
- B10: 21, B16: 33, C10: 33, C16: 53
- Type
- Trailing edge
- Surge protection
- 1/2 kV
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Plastic
- Colour
- White
- Length (mm) L
- 200
- Width (mm) W
- 85
- Height (mm) H
- 35
- Weight (kg) gross/net
- 0.326 / 0.293
- Packaging dimensions (mm)
- 207 x 90 x 40
- Operation by Bluetooth
- No
- Device emplacement
- Indoor positioning
- Compatible with Casambi
- No
- Material
- Polycarbonate (PC)
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- Constant light output (CLO)
- No
- No dim function
- No
- Suitable for constant current
- No
- Suitable for constant voltage
- Yes
- Output voltage
- 0–24 V
- Output current
- 100–1500 mA
- Suitable for DC-voltage (primary side)
- No
- Output power
- 9.6–36 W
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- I
- Length
- 200 mm
- Width
- 85 mm
- Height
- 35 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Dimming DALI-2
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7021988204405
- SAP 1200566436
- Code 82925812
Product Documentation
Document preview: Stripline Driver 24V 36W Phase-cut (820440) — Specification sheet
