SG Armaturen

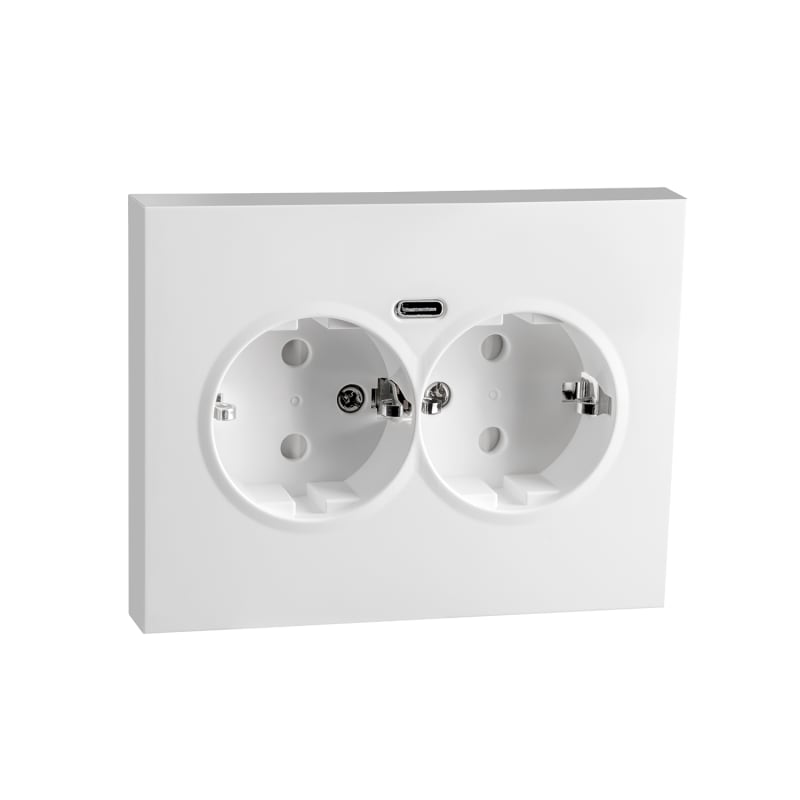

Socket IF Double M USB-C 1,5 BOX White
Part number6603305HS code8536.90
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 6603305 SOCKET IF DOUBLE M USB-C 1,5 BOX WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- 6603305
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Multi-standard socket
- Halogen free
- Yes
- Number of units
- 1
- Lockable
- No
- With hinged lid
- No
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 2
- Number of phases
- 2
- With enhanced contact protection
- No
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- Yes
- Overvoltage protection
- No
- Fault current protection
- No
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- Mounting direction
- Horizontal and vertical
- RAL-number (similar)
- 9003
- Concurrently switching neutral conductor
- Yes
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- Yes
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP21
- Device width
- 84 mm
- Device height
- 118 mm
- Device depth
- 43 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of modules (module system)
- 1.5
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Min. depth of built-in installation box
- 45 mm
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Max. current rating of USB power supply
- 3 A
- With built-in bluetooth speaker
- No
- Number of ports USB-C
- 1
- Protective contact
- Earthing clips
- Number of loop throughs
- 1
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- 7021987711010
Product Documentation
Document preview: Socket IF Double M USB-C 1,5 BOX White (6603305) — Specification sheet
