SG Armaturen

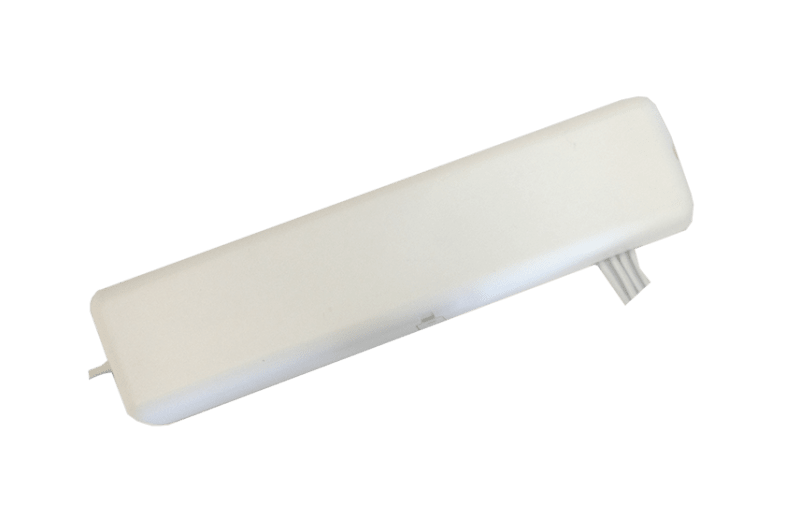

Ledstar Driver 24V 1-6
Part number820186EAN / GTIN7021988201862HS code9405.99
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820186 LEDSTAR DRIVER 24V WITH TERMINAL BLOCK.
Technical Specifications
- Manufacturer part number (MPN)
- 820186
- EAN / GTIN
- 7021988201862
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V
- Wattage
- 20W
- IP Class
- IP20
- Mounting
- Indoor
- System wattage
- 20W
- Type
- Trailing edge
- Driver
- 24V
- Luminaire class
- Class II
- Housing
- Plastic
- Colour
- White (RAL 9003)
- Connection
- Screwless terminal block
- Length (mm) L
- 250
- Width (mm) W
- 70
- Height (mm) H
- 28
- Weight (kg) gross/net
- 0.255 / 0.21
- Packaging dimensions (mm)
- 250 x 70 x 28
- Operation by Bluetooth
- No
- Device emplacement
- Indoor positioning
- Compatible with Casambi
- No
- Material
- Polycarbonate (PC)
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Suitable for constant current
- Yes
- Suitable for constant voltage
- Yes
- Output voltage
- 12–24 V
- Output current
- 250–900 mA
- Suitable for DC-voltage (primary side)
- Yes
- Output power
- 2.4–20 W
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Length
- 260 mm
- Width
- 62 mm
- Height
- 26.5 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Dimming DALI-2
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.99
Cross References
- EAN 7021988201862
- SAP 1200130756
- Code 81984611
Product Documentation
Document preview: Ledstar Driver 24V 1-6 (820186) — Specification sheet
