SG Armaturen

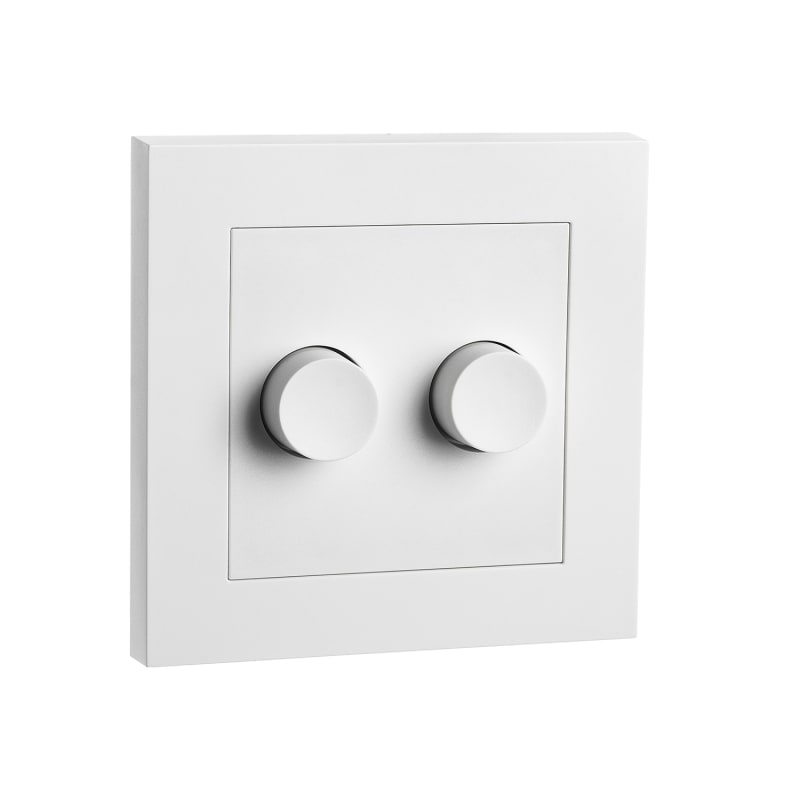

Jointim 2X100 (820473)
Part number820473EAN / GTIN7021988204733HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820473 LEDDIM 2X100.
Technical Specifications
- Manufacturer part number (MPN)
- 820473
- EAN / GTIN
- 7021988204733
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Wattage
- 2x100VA
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Function
- Including dimmer, 2 pcs. white knob, 2 pcs. nut, white outer frame and white inner frame
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Overvoltage protection
- Yes
- Overload protection
- Yes
- Minimum dim level is adjustable
- Yes
- Memory feature in the event of voltage drop out
- Yes
- Housing
- Polycarbonat (PC)
- Colour
- White (RAL 9003)
- Length (mm) L
- 84
- Width (mm) W
- 84
- Height (mm) H
- 42
- Weight (kg) gross/net
- 0.118 / 0.093
- Packaging dimensions (mm)
- 90 x 50 x 90
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Method of operation
- Turn/push button
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.5 W
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9003
- Serial dimmer
- No
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal voltage
- 220–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 42 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 23 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 80 W
- Nominal power capacitive load
- 100 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 80 W
- Min. brightness controllable
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988204733
- SAP 1200679666
- Code 83137384
Product Documentation
Document preview: Jointim 2X100 (820473) — Specification sheet
