SG Armaturen

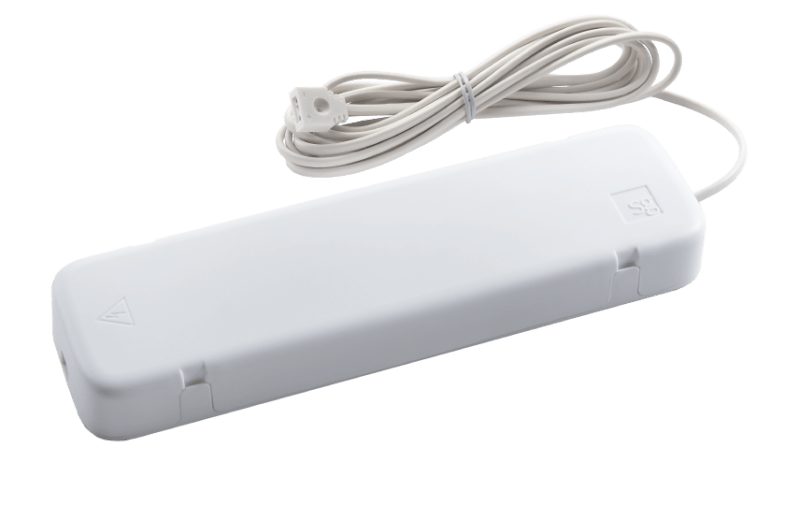

Slimline 20W Driver 1-10V/Impulse DIM
Part number820063EAN / GTIN7021988200636HS code8504.31
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820063 SlimLine 20W driver kit.
Technical Specifications
- Manufacturer part number (MPN)
- 820063
- EAN / GTIN
- 7021988200636
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 20 W
- Wattage
- 20W
- IP Class
- IP20
- Mounting
- Surface, Indoor
- System wattage
- 20W
- Voltage
- 220-240V
- Type
- 1-10V / Push Dim
- Driver
- 24V
- Luminaire class
- Class II
- Housing
- Polypropylene (PP)
- Colour
- White
- Cable
- Cable 3m
- Connection
- Screwless terminal block
- Length (mm) L
- 250
- Width (mm) W
- 70
- Height (mm) H
- 28
- Weight (kg) gross/net
- 0.358 / 0.348
- Packaging dimensions (mm)
- 100 x 35 x 260
- Operation by Bluetooth
- No
- Device emplacement
- Indoor positioning
- Compatible with Casambi
- No
- Material
- Polycarbonate (PC)
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- Yes
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- Yes
- No dim function
- No
- Suitable for constant current
- No
- Suitable for constant voltage
- Yes
- Output voltage
- 24 V
- Output current
- 350–900 mA
- Suitable for DC-voltage (primary side)
- Yes
- Output power
- 0–20 W
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Length
- 250 mm
- Width
- 70 mm
- Height
- 28 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Dimming DALI-2
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7021988200636
- SAP 1200000965
- Code 8423732
Product Documentation
Document preview: Slimline 20W Driver 1-10V/Impulse DIM (820063) — Specification sheet
