SG Armaturen

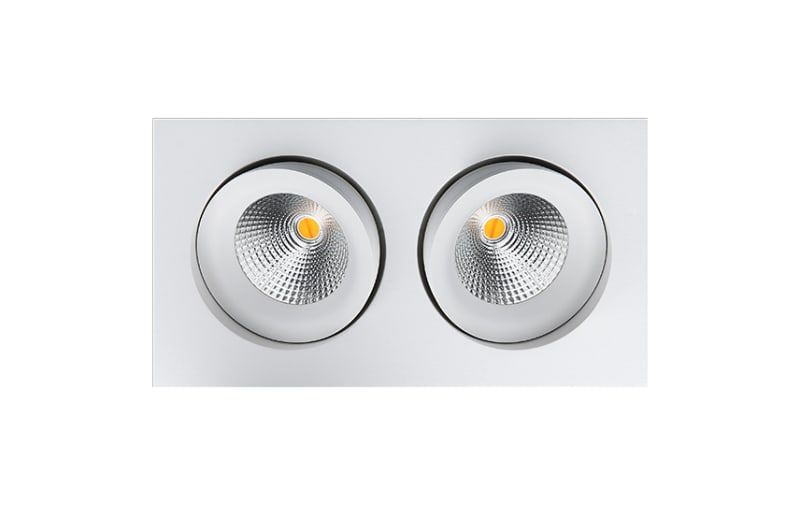

Junistar SQ Isosafe White 2X6W/D2W
Part number901261EAN / GTIN7021989012610HS code8543.70
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 901261 Low-profile downlight which can be mounted direct in insulation. With a recessed lamp for reduced glare.
Technical Specifications
- Manufacturer part number (MPN)
- 901261
- EAN / GTIN
- 7021989012610
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Efficacy
- 69 lm/W
- Lumen
- 1100lm
- Wattage
- 2x7W
- IP Class
- IP44/IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 50,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 16W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 1100lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Length (mm) L
- 175
- Width (mm) W
- 95
- Height (mm) H
- 56
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 54
- Weight (kg) gross/net
- 0.75 / 0.7
- Packaging dimensions (mm)
- 205 x 130 x 60
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021989012610
- SAP 1000801054
- Code 81455624
Product Documentation
Document preview: Junistar SQ Isosafe White 2X6W/D2W (901261) — Specification sheet
More from SG Armaturen
SG Armaturen
Fevik Graphite 1000/2000 3000K
623253
SG Armaturen
Slimline STRAIGHT Joint
391213
SG Armaturen

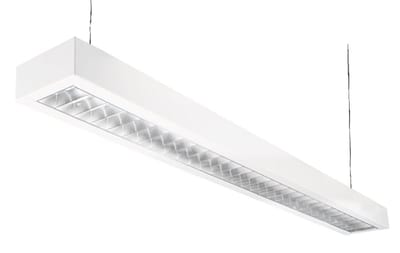

Ecoline Office 1200 28W/830
8246089638
SG Armaturen

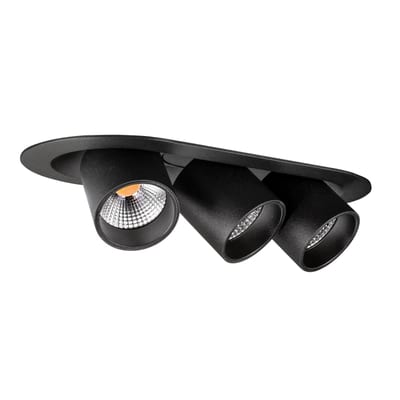

Junistar TUBE Round Black 3X 2700K
902715
SG Armaturen

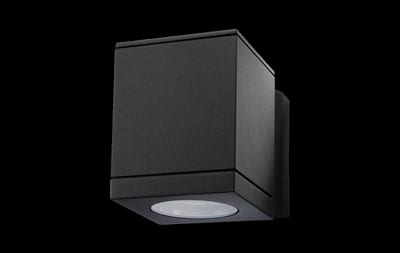

ECHO Black GU10 1X4,5W/827 IP54
614681
SG Armaturen

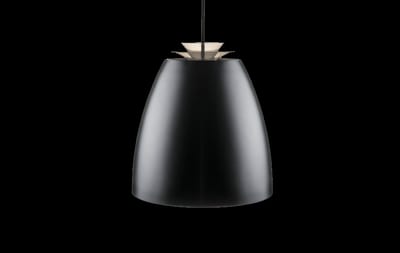

BELL MAXI Black/GOLD 15W/927 H:317
312368
SG Armaturen

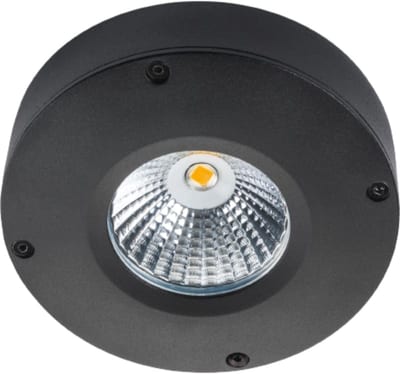

SG Armaturen Callisto Black Surface-Mounted Downlight 4W/827 IP65
914012
SG Armaturen

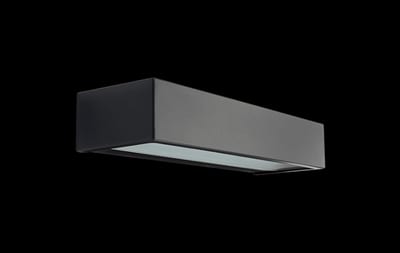

EDGE Direct Black 7W/827 IP65
